(6) Execute SEND.EXE to send firmware to the plotter from the PC.

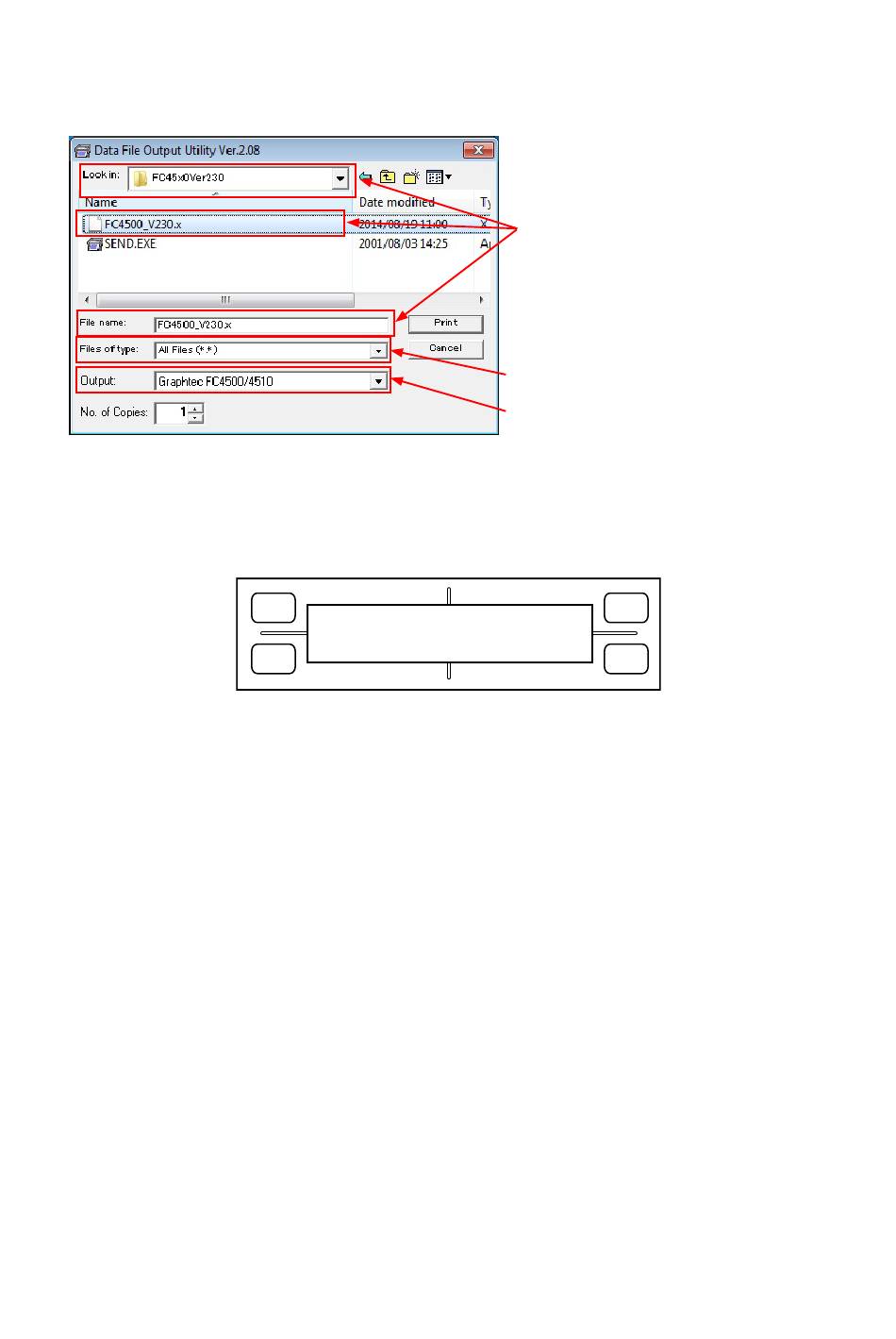

The following menu is displayed on the PC.
Select the Files of type to "All Files (*.*)".
Select the firmware file from the SEND.EXE menu.
(7) Press the "Print" button after the firmware file and the output destination were selected.
The following menu is displayed at the LCD of FC4500 when the firmware is receiving.
The number of byte increase when the data is receiving.
(8) The FC4500 initialize automatically when the firmware updating was finished.
(9) Confirm the firmware version during initializing, the version of firmware is displayed on the LCD.
(10) Turn off power when the firmware was updated correctly.
(11) Perform the NovRAM clear if the firmware was updated to the replaced new main board.
