MVI69-PDPMV1 ♦ CompactLogix or MicroLogix Platform
PROFIBUS DPV1 Master
3.5

Downloading the Project to the Module Using CIPconnect

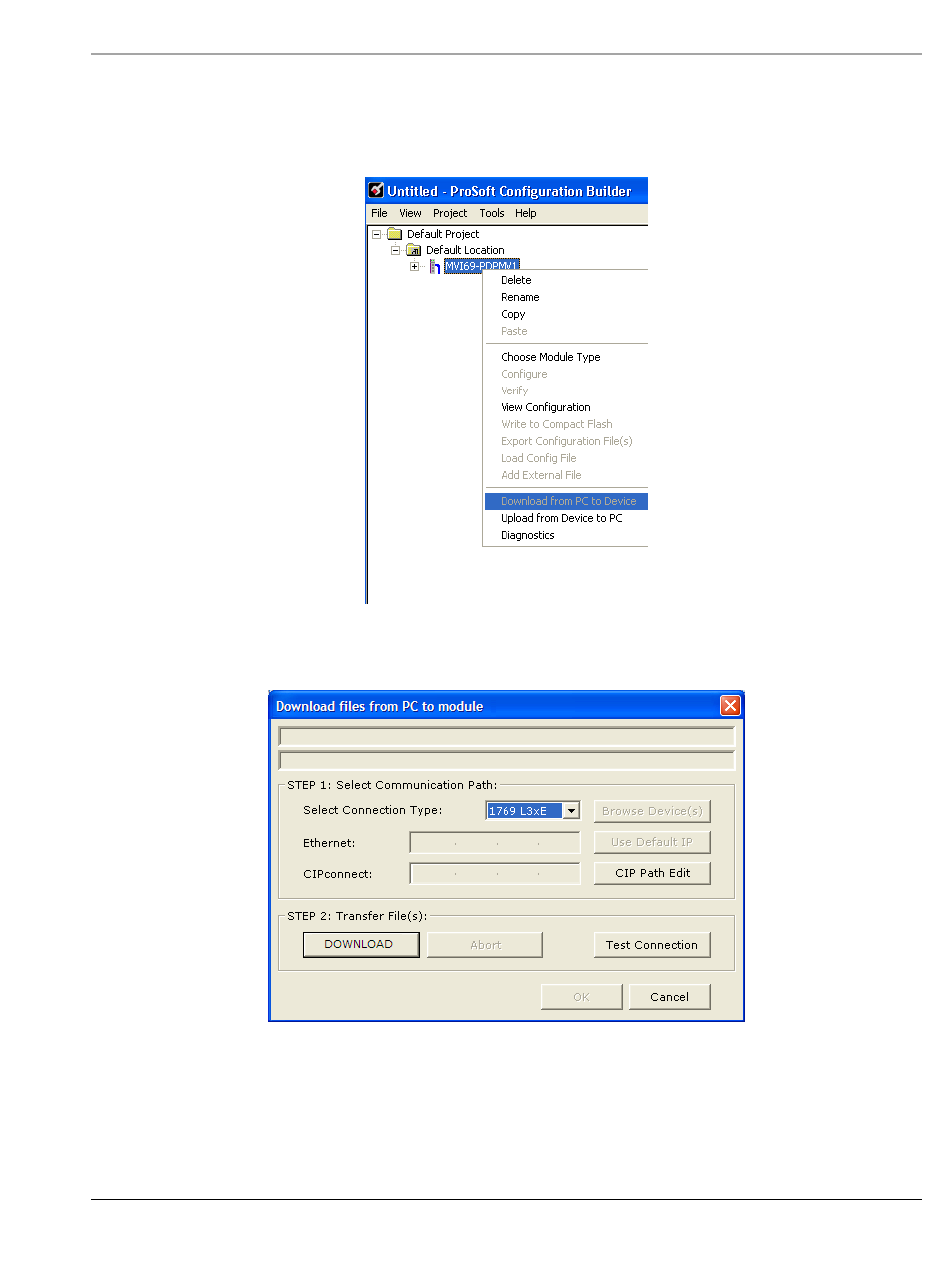

1 Right-click the MVI69-PDPMV1 module and choose D
D .
EVICE
2 In the Select Port dropdown list, choose 1769-L3
appears in the text box, as shown in the following illustration.
The CIPconnect Path Editor allows you to define the path between the PC and
the MVI69-PDPMV1 module.
Each row in the CIPconnect Path Editor corresponds to a physical rack in the
CIP path. Since bridging through multiple racks is not supported in the MVI69-
PDPMV1, only one row is needed for configuring the CIP path.
ProSoft Technology, Inc.
July 8, 2011
OWNLOAD FROM
E. The default path
X
Page 73 of 225
Module Setup
User Manual
PC
TO
