MVI69-PDPMV1 ♦ CompactLogix or MicroLogix Platform
PROFIBUS DPV1 Master
5.4

Using ProSoft Configuration Builder (PCB) for Diagnostics

The Configuration and Debug menu for this module is arranged as a tree
structure, with the Main menu at the top of the tree, and one or more sub-menus
for each menu command. The first menu you see when you connect to the
module is the Main menu.
Because this is a text-based menu system, you enter commands by typing the
[command letter] from your computer keyboard in the Diagnostic window in
ProSoft Configuration Builder (PCB). The module does not respond to mouse
movements or clicks. The command executes as soon as you press the
[
COMMAND LETTER
[
COMMAND LETTER

5.4.1 Using the Diagnostic Window in ProSoft Configuration Builder

Tip: You can have a ProSoft Configuration Builder Diagnostics window open for more than one
module at a time.
To connect to the module's Configuration/Debug serial port
1

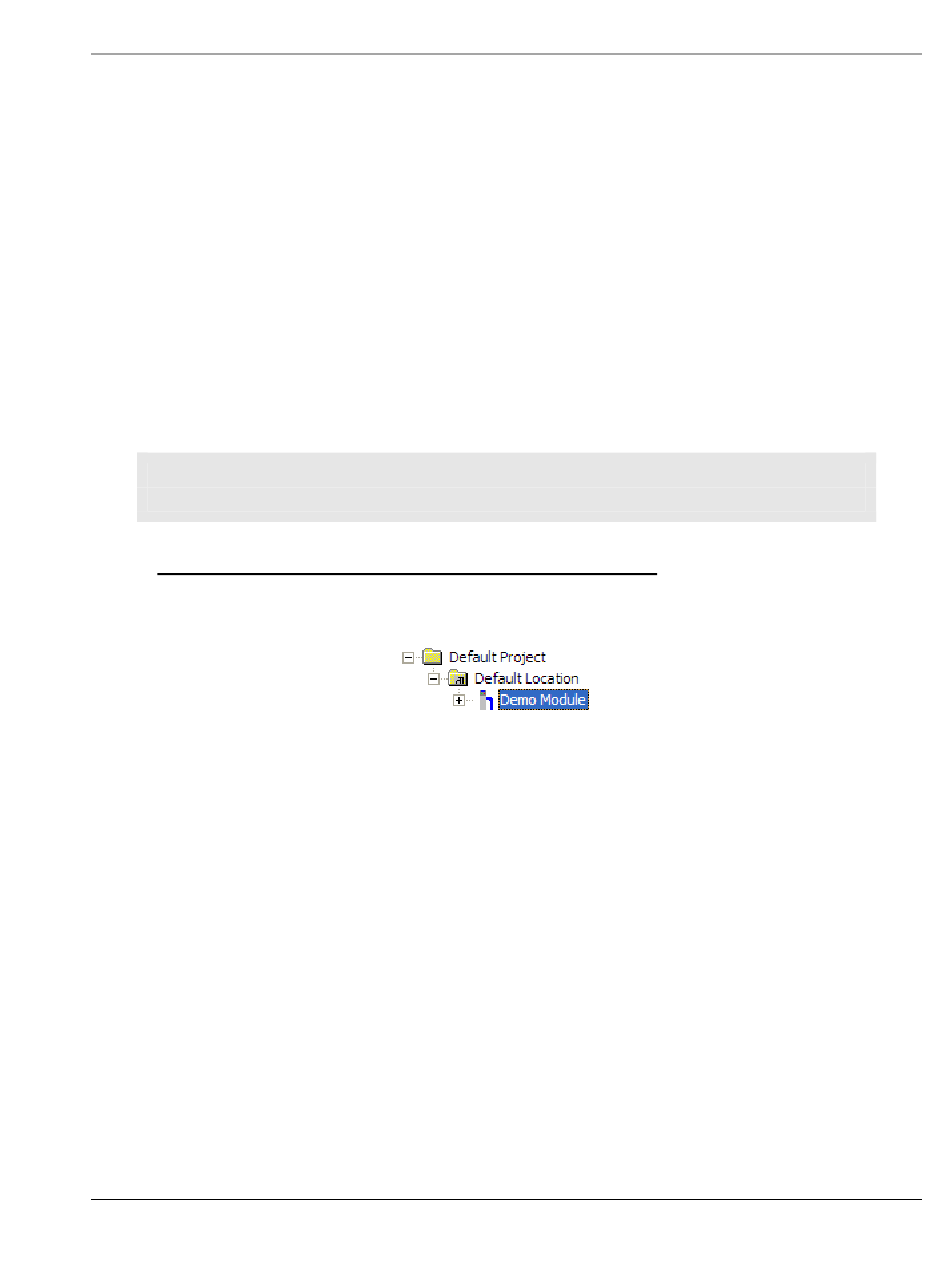

Start PCB, and then select the module to test. Click the right mouse button to
open a shortcut menu.
ProSoft Technology, Inc.
July 8, 2011
] — you do not need to press [E
], a new screen will be displayed in your terminal application.
Diagnostics and Troubleshooting
]. When you type a
NTER
User Manual
Page 147 of 225
