3.2.2 Setting Module Parameters

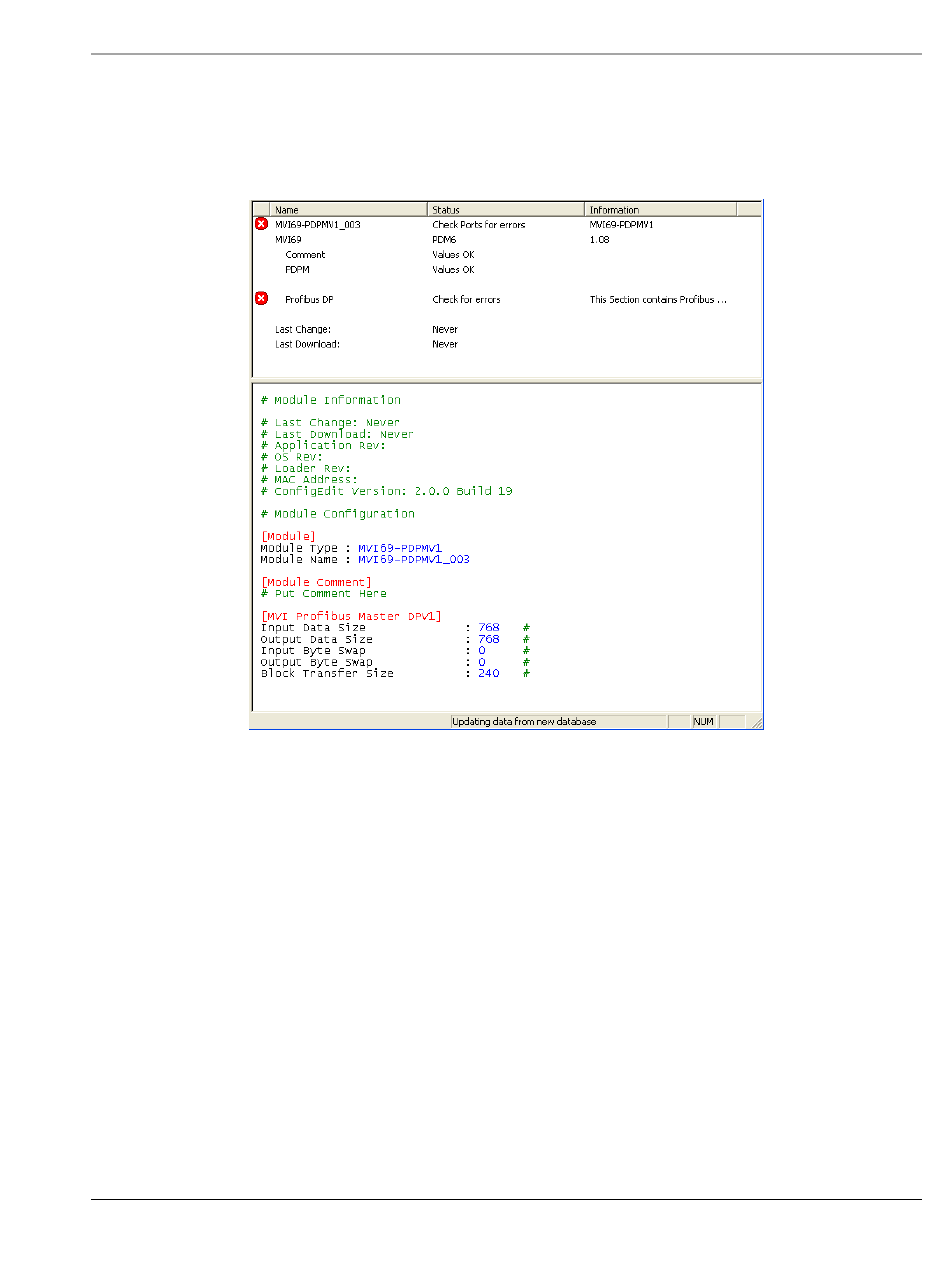

Notice that the contents of the information pane and the configuration pane
changed when you added the MVI69-PDPMV1 module to the project. The red X
icon indicates that the module's configuration is incomplete.
In the following steps, you will provide the missing information to begin
configuring the module.
1 Click the plus sign [+] next to the module to expand the module tree, and
then expand the MVI69 PDPM-V1 tree.
2 Double-click the MVI PROFIBUS M
Edit dialog box.
