Downloading the Project to the Module Using a Serial COM Port

For the module to use the settings you configured, you must download (copy) the
updated Project file from your PC to the module.
To download the project file
1 In the tree view in ProSoft Configuration Builder, click once to select the
module.
2 Right-click the module icon to open a shortcut menu. From the shortcut
menu, choose D
PC for a valid com port (this may take a few seconds). When PCB has found
a valid COM port, the Download dialog box will open.

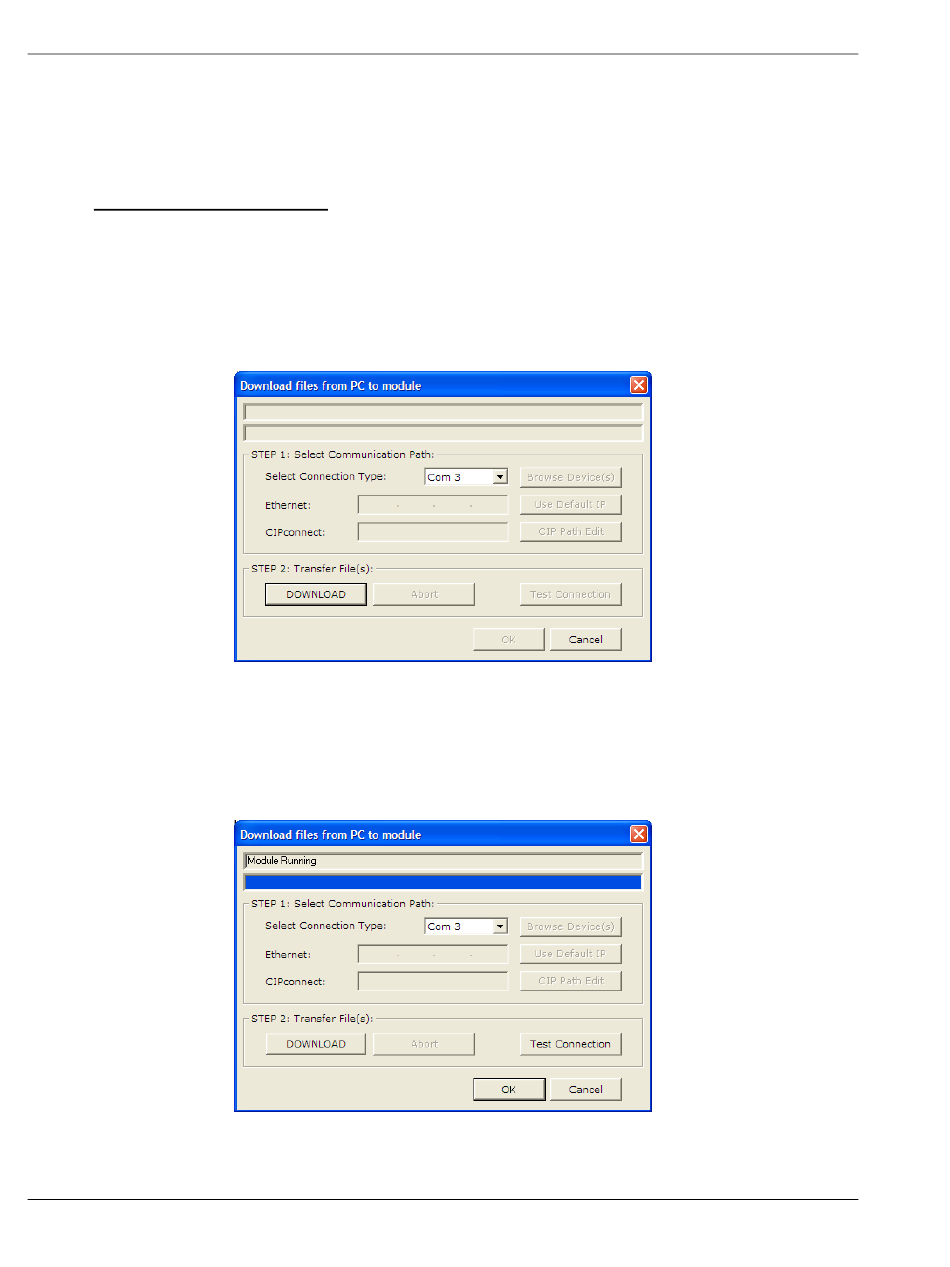

3 Choose the COM port to use from the dropdown list, and then click the
D
OWNLOAD
The module will perform a platform check to read and load its new settings.
When the platform check is complete, the status bar in the Download dialog
box will display the message Module Running.
