Module Setup
User Manual
5
Double-click the PROFIBUS M

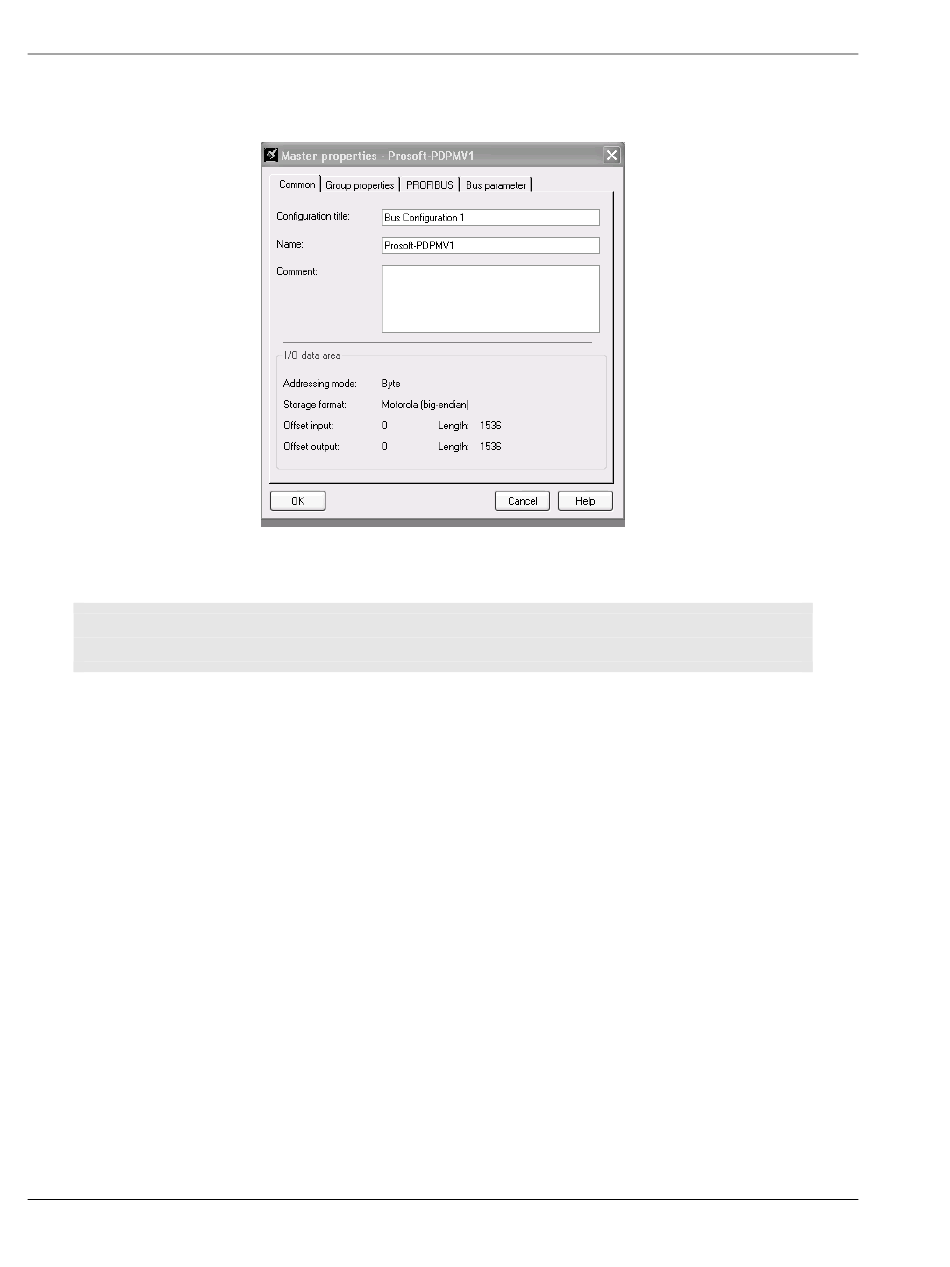

This action opens the Master Properties dialog box.
6
On the Common tab, name your PROFIBUS drop.
Note: The PROFIBUS tab contains the address setting and advanced configuration settings for the
Master. The default settings on this tab work best in most applications.
7
Click OK to save your changes and return to the Bus Configuration window.
Page 52 of 225
MVI69-PDPMV1 ♦ CompactLogix or MicroLogix Platform
icon in the Bus Configuration window.
ASTER
PROFIBUS DPV1 Master
ProSoft Technology, Inc.
July 8, 2011
