MVI69-PDPMV1 ♦ CompactLogix or MicroLogix Platform
PROFIBUS DPV1 Master
3

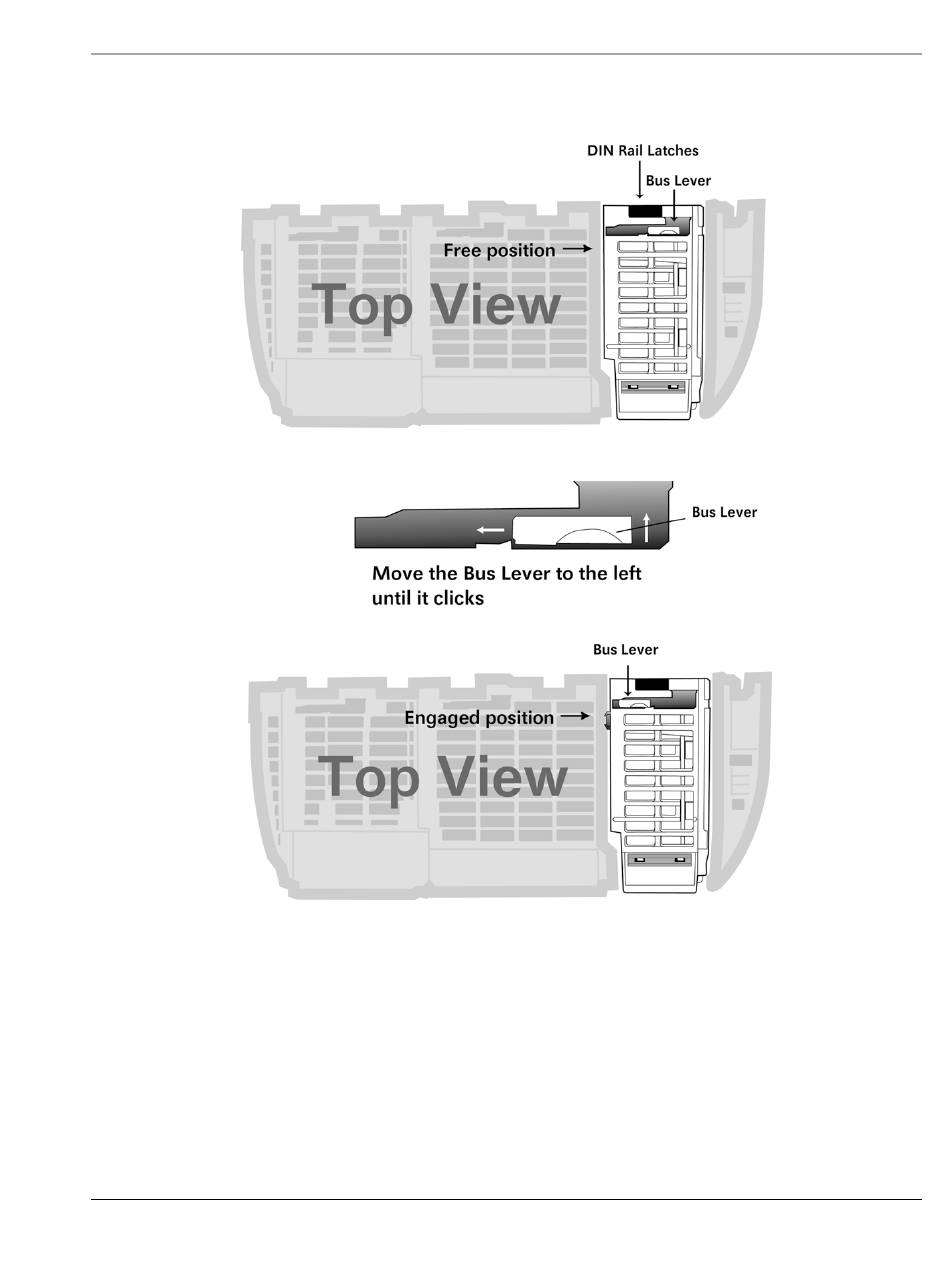

Push the module's bus lever back slightly to clear the positioning tab and
move it firmly to the left until it clicks. Ensure that it is locked firmly in place.
4
Close all DIN-rail latches.
ProSoft Technology, Inc.
July 8, 2011
Start Here
User Manual
Page 17 of 225
