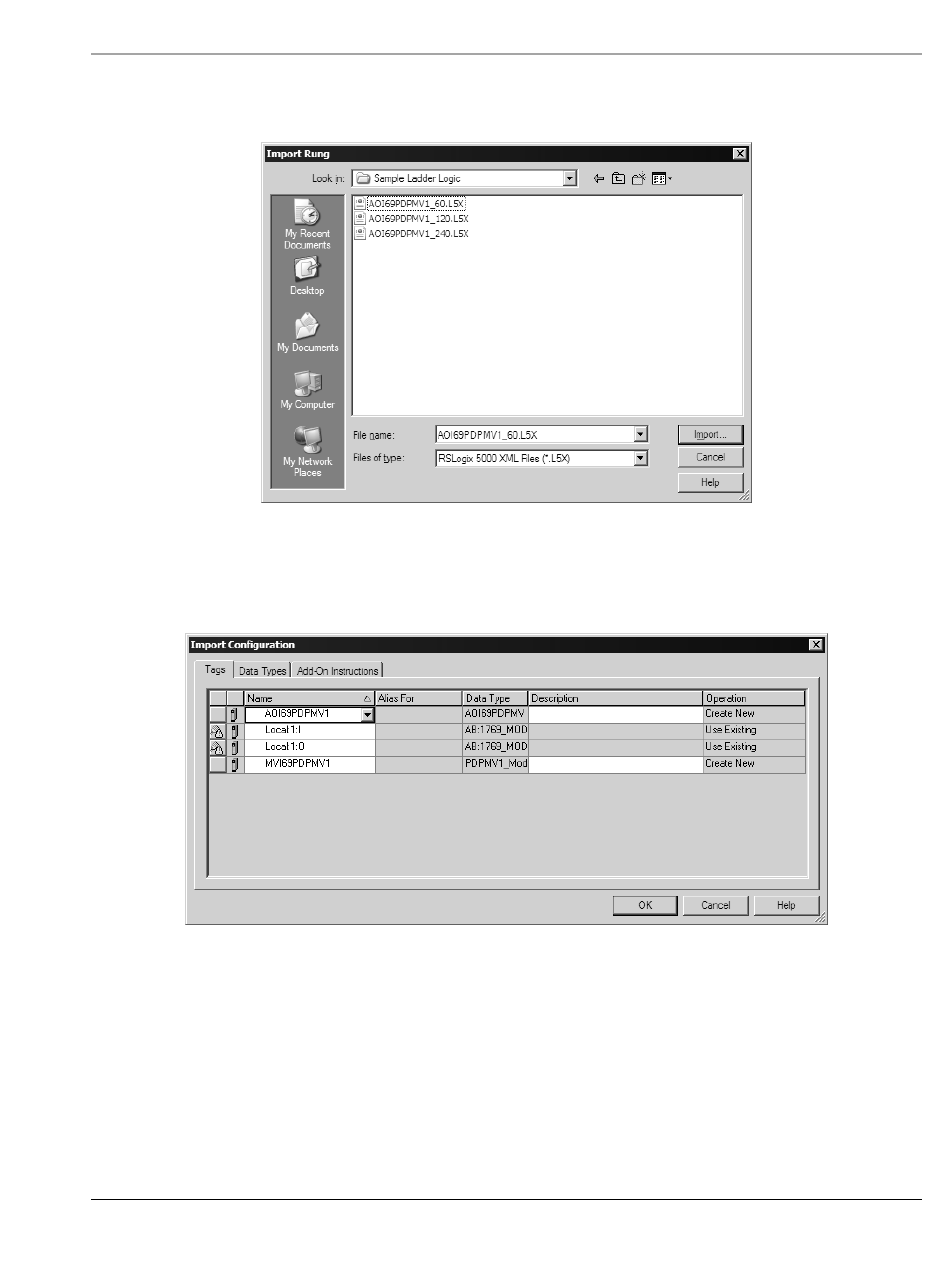

6 Select the AOI69PDPMV1_60.L5X file for the block size you selected for the
module (60, 120 or 240).
7 The following window will be displayed showing the controller tags to be
created during the import procedure: If desired, the description, "MVI69-
PDPMV1 Interface AOI" may be typed into the description field for
AOI69PDPMV1_60.L5X file.
