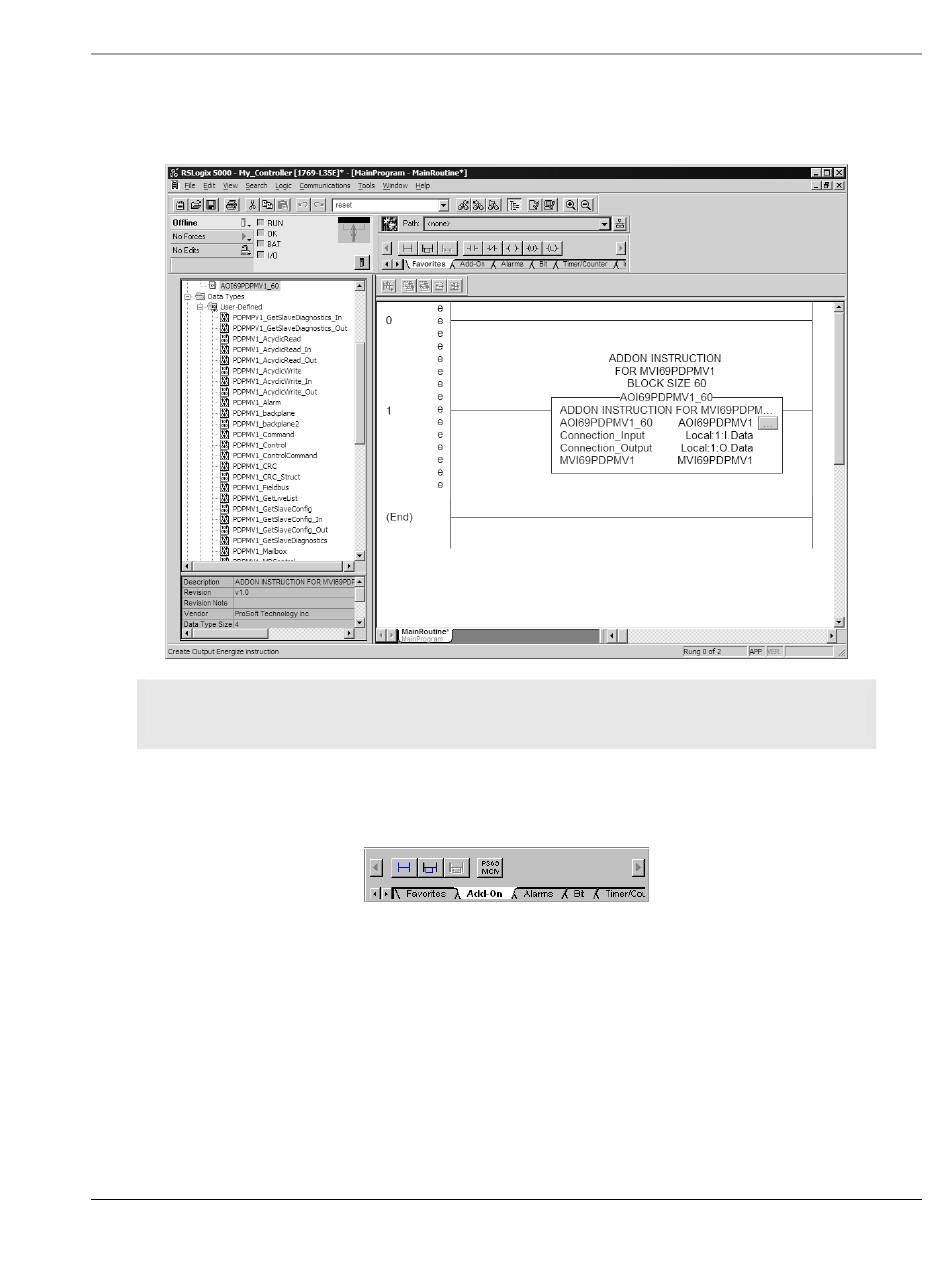

The imported rung will contain the Add-On Instruction as shown in the
following illustration. Notice that the block size is determined by the Add-On
Instruction that you imported.
Important: You must set the Block Transfer Size in ProSoft Configuration Builder to match the
block size for the Add-On Instruction, otherwise the module may not function correctly.
The procedure has also imported new user-defined data types, data objects
and the Add-On Instruction to be used at your project.
