3.2.3 Configuring the PROFIBUS Master

In this task, you will configure the PROFIBUS Master, and then add PROFIBUS
slaves to the network. When this step is complete, you will download the
configuration information to the MVI69 module. You will also export the I/O maps
for the processor.
1 In ProSoft Configuration Builder tree view, click [+] to expand the MVI69-
PDPMV1 tree, and then double-click the PROFIBUS DP icon. This action
opens the PDPMV1 PROFIBUS Master Setup dialog box.
2 On the Master Setup dialog box, click the C
This action opens the ProSoft Configuration Builder for PROFIBUS
application.
3 Click [+] to expand the PROFIBUS Master tree.

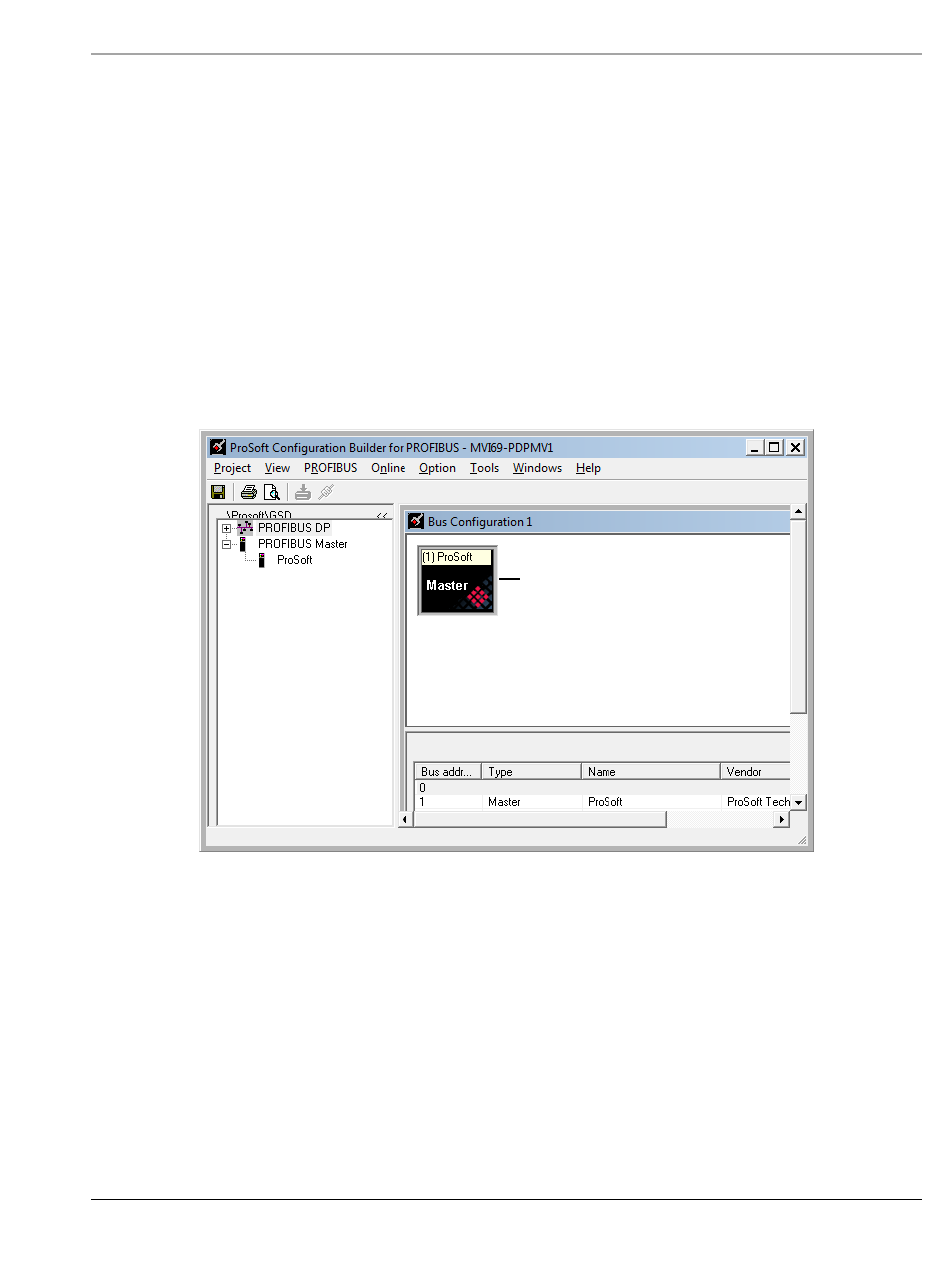

4 Drag the PROFIBUS Master icon into the Bus Configuration window. This is
automatically done by the software for new applications.
ProSoft Technology, Inc.
July 8, 2011
PROFIBUS button.
