Ladder Logic
User Manual

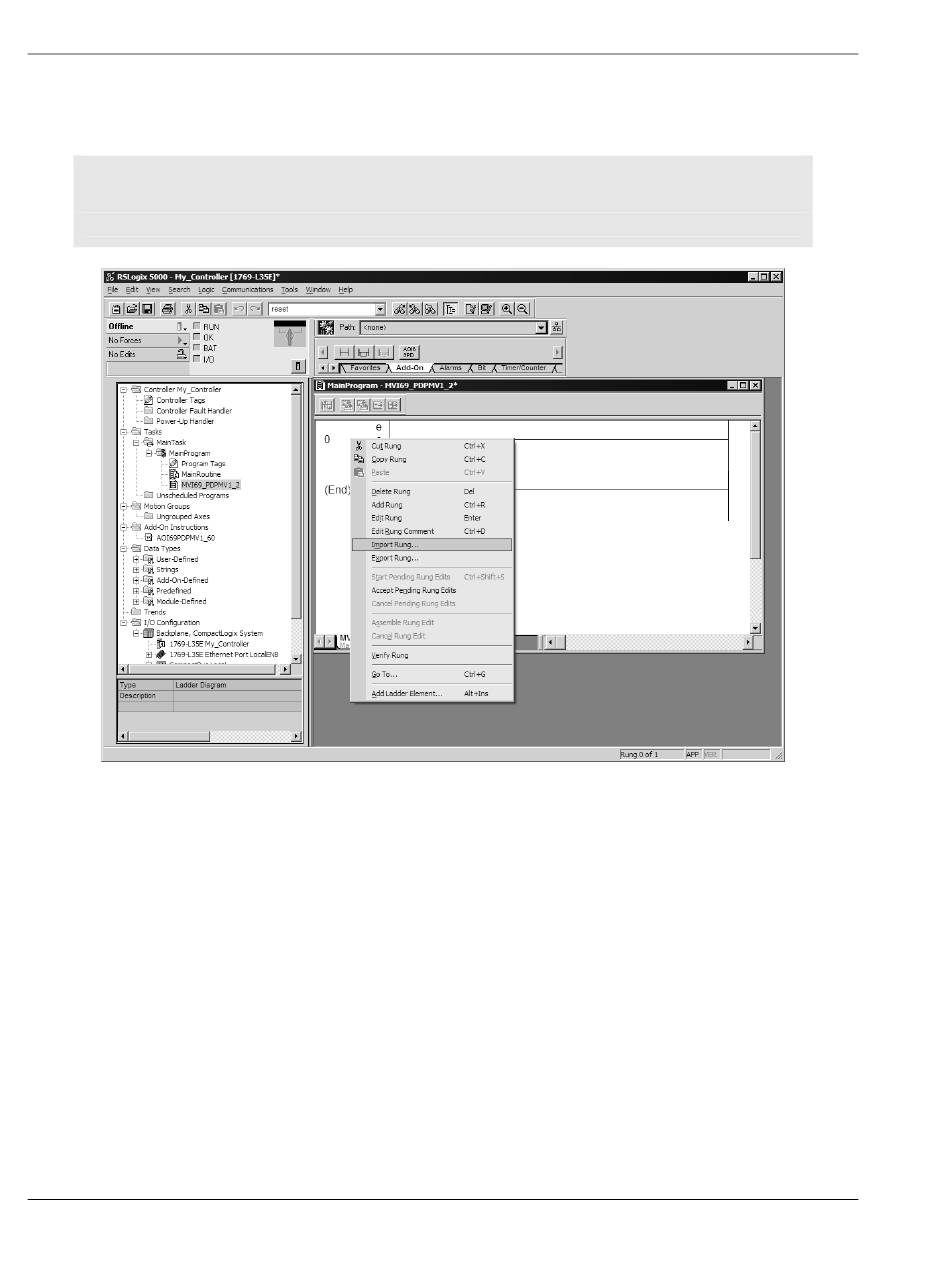

8 Select an empty rung in the new routine, and then click the right mouse
button to open a shortcut menu. On the shortcut menu, choose I
Note: It is not necessary to create a completely new routine. It is possible to add the MVI69-
PDPMV1_2 module in the previously created routine. If you need to create a new routine, insert a
jump instruction in the previous routine to the new routine.
