Module Setup
User Manual

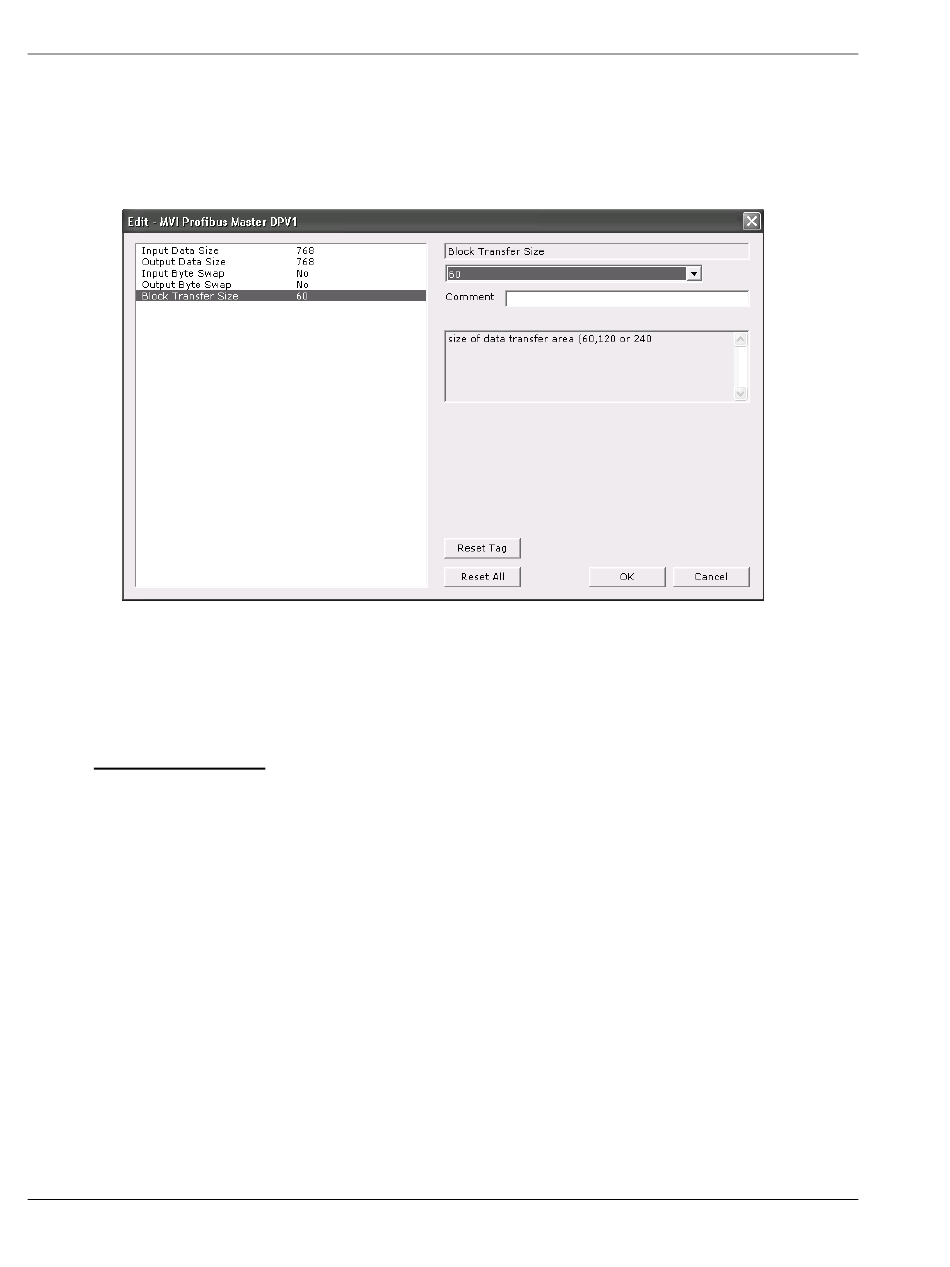

3 In the Edit dialog box, configure the values for Input Data Size and Output
Data Size (PROFIBUS input and output point words) to match the values
required by your application. To change a value, select the parameter to
modify in the left pane, and then type the new value in the edit field in the
right pane.
4 When you have finished updating the values, click OK to save your settings
and return to the ProSoft Configuration Builder window.
At this time, you may wish to rename the Default Project and Default Location
folders in the tree view.
To rename an object
1 Select the object, and then click the right mouse button to open a shortcut
menu. From the shortcut menu, choose R
2 Type the name to assign to the object.
3 Click away from the object to save the new name.
