MVI69-PDPMV1 ♦ CompactLogix or MicroLogix Platform
PROFIBUS DPV1 Master

5.1.4 Viewing the Controller Tags in RSLogix 5000

Note: For this procedure, you must connect a serial cable from the serial port on your PC to the
DB9M connector on the CompactLogix or MicroLogix processor.
1 Open the sample ladder logic in RSLogix 5000.
2 Open the Communications menu, and choose G
3 In the Controller Organization window, double-click C
4 Expand the MVI69PDPMV1, MVI69PDPMV1.Status and
MVI69PDPMV1.Status.Fieldbus tags.

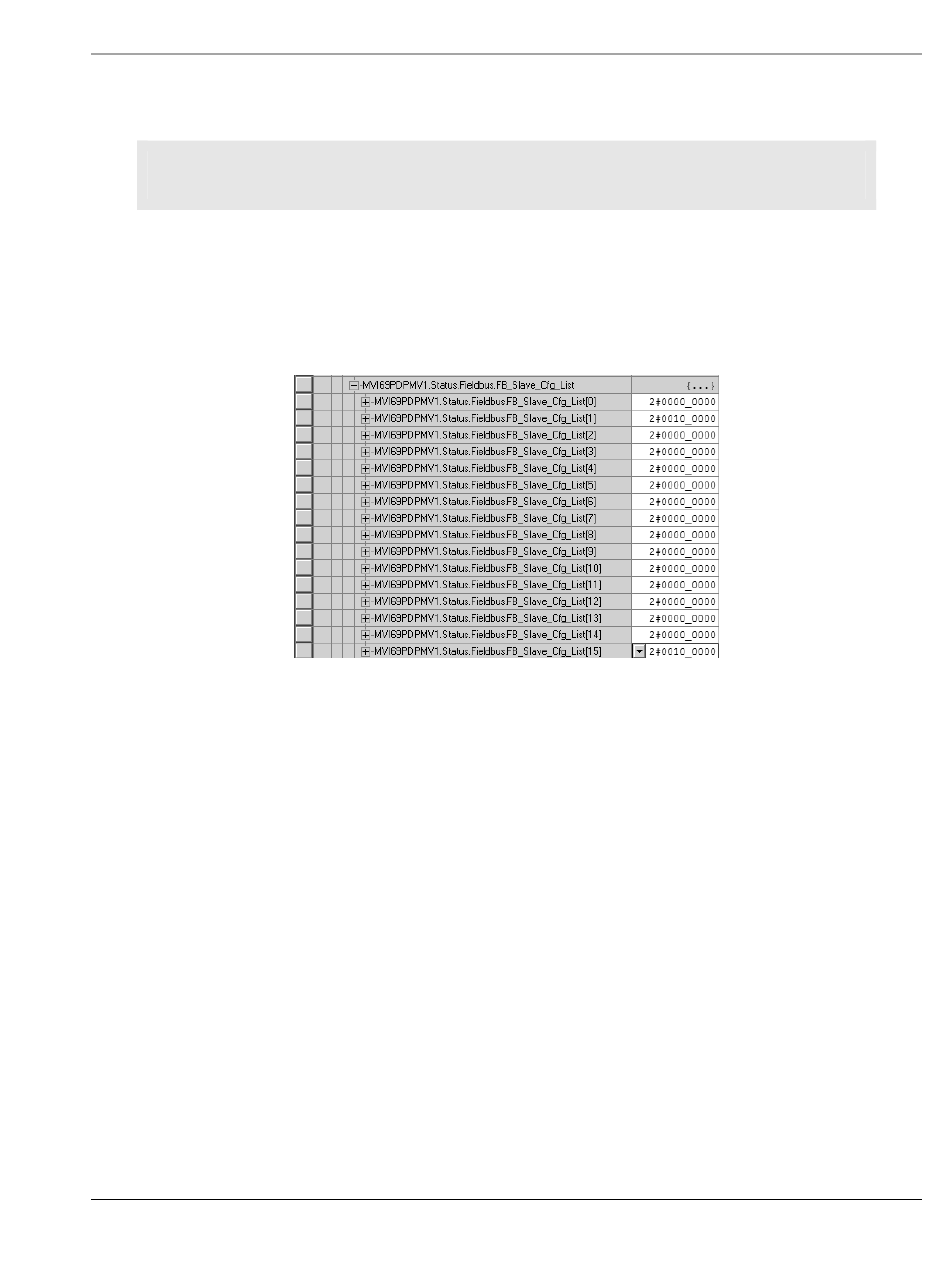

In the illustration above, the binary value in
MVI69PDPMV1.Status.Fieldbus.FB_Slave_Cfg_List[15] indicates that a slave
is configured at address 125 (the PROFIBUS Slave Address configured in the
Slave Configuration procedure).
ProSoft Technology, Inc.
July 8, 2011
Diagnostics and Troubleshooting
O .
O NLINE
T
ONTROLLER AGS
Page 141 of 225
