Adding the Module to an Existing MicroLogix Project

If you are installing and configuring the module with a MicroLogix controller,
follow these steps. If you are using a CompactLogix controller, refer to the
previous section.
The first step in setting up the processor ladder file is to define the I/O type
module to the system. Start RSLogix 500, and follow these steps:
1 In RSLogix, open your existing application, or start a new application,
depending on your requirements.
2 Double-click the I/O C
project tree. This action opens the I/O Configuration dialog box.
3 In the I/O Configuration dialog box, select "O
ID" at the bottom of the list in the right pane, and then double-click to open
the "Other" type IO card dialog box.

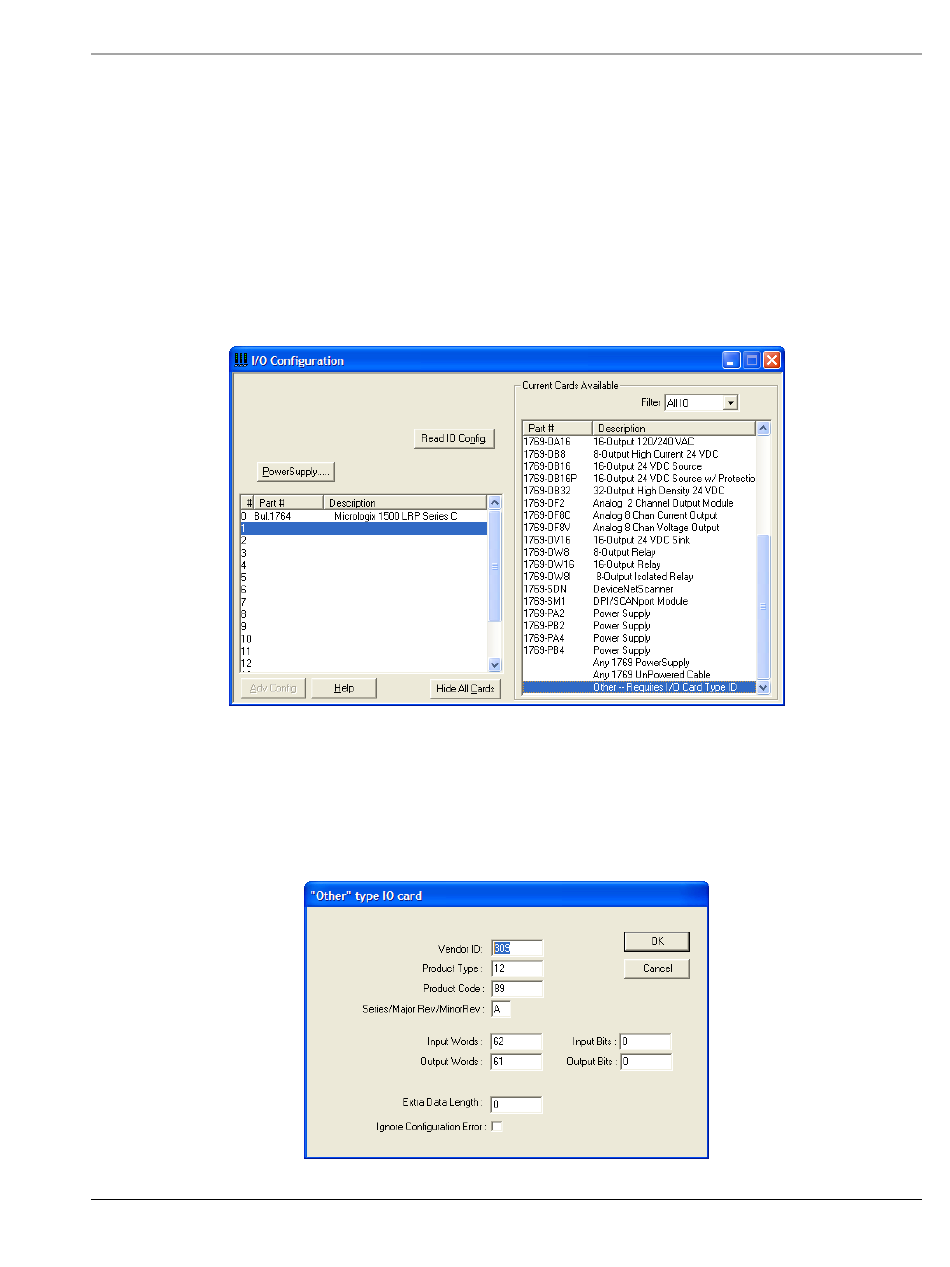

4 Enter the values shown in the following illustration to define the module
correctly for the MicroLogix processor, and then click OK to save your
configuration.
