ProSoft Technology inRax MVI69-PDPMV1 User Manual page 23

MVI69-PDPMV1 ♦ CompactLogix or MicroLogix Platform
PROFIBUS DPV1 Master

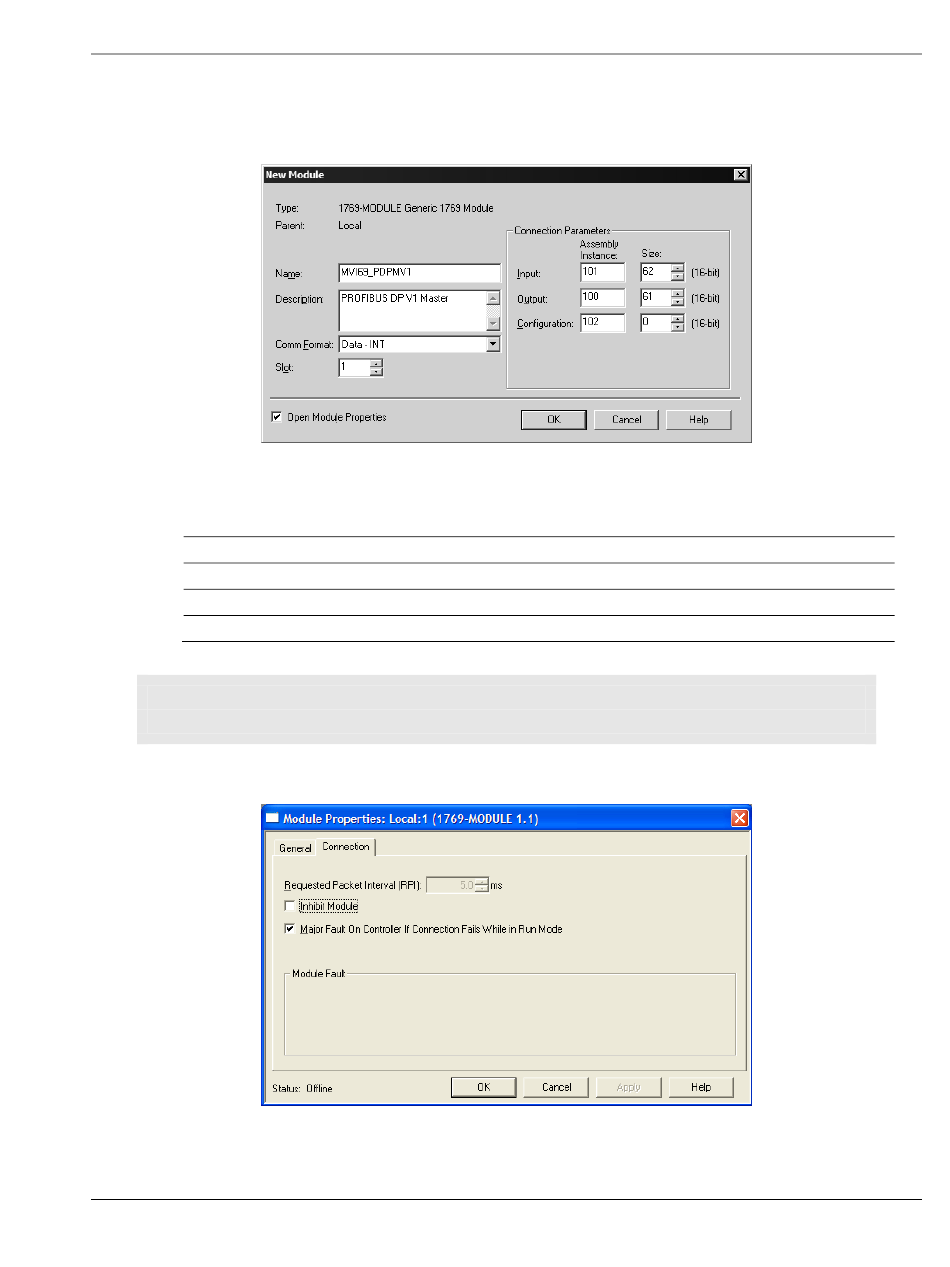

4 The following illustration shows an example where the module was
configured for a block transfer size of 60 words (input block size = 62 words,
output block size = 61 words):
Enter the Input Block Size and Output Block Size parameters according to
the Block Transfer Size to use:
Block Transfer Size
60
120
240
Important: You must set the Block Transfer Size in ProSoft Configuration Builder to match the
block size for the Add-On Instruction, otherwise the module may not function correctly.
5 On the C
ONNECTION
ProSoft Technology, Inc.
July 8, 2011
Input Block Size
62
122
242
tab, check or un-check, as desired the Major fault option.
Ladder Logic
User Manual
Output Block Size
61
121
241
Page 23 of 225
