Ladder Logic
User Manual

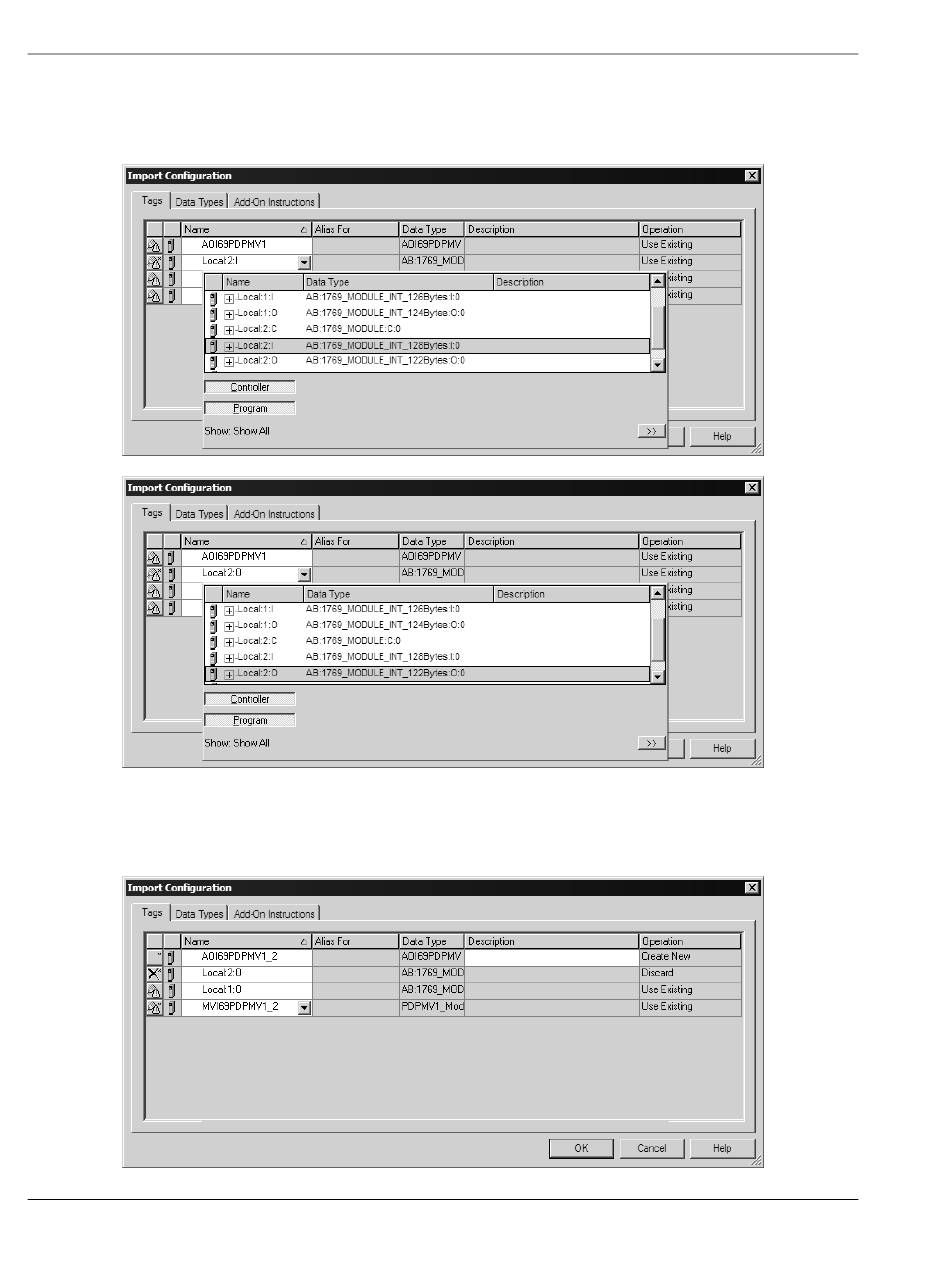

11 Associate the I/O connection variables to the correct module. The default
values are Local:1:I and Local:1:O. These require re-assignment to the new
module's location.
12 Change the default tags AOI69PDPMV1 and MVI69PDPMV1 to avoid conflict
with existing tags. In this step, you should append a string to the default tag
names, such as "_2", as shown in the following illustration.
