MVI69-PDPMV1 ♦ CompactLogix or MicroLogix Platform
PROFIBUS DPV1 Master
2.2

Adding the Module to an Existing CompactLogix Project

Important: The MVI69-PDPMV1 module has a power supply distance rating of 2 (L43 and L45
installations on first 2 slots of 1769 bus).
If you are installing and configuring the module with a CompactLogix controller,
follow these steps. If you are using a MicroLogix controller, refer to the next
section.

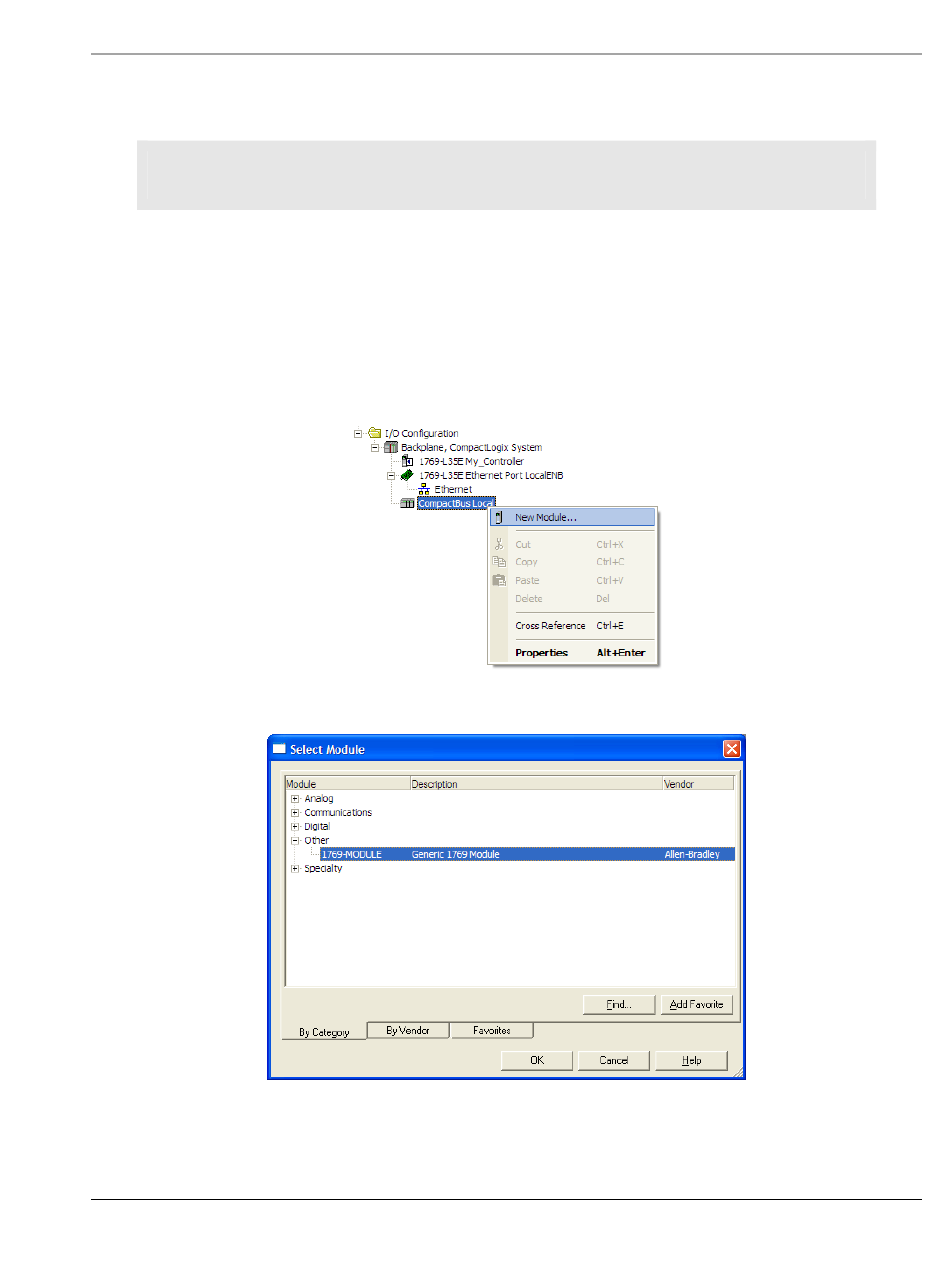

1 Add the MVI69-PDPMV1 module to the project. Right-click the mouse button
on the I/O C
display a pop-up menu. Select the N
C
ONFIGURATION
This action opens the Select Module dialog box:
ProSoft Technology, Inc.
July 8, 2011
option in the Controller Organization window to
ONFIGURATION
menu.
M option from the I/O
EW ODULE
Ladder Logic
User Manual
Page 39 of 225
