2.1.6 Downloading the Sample Program to the Processor

Note: The key switch on the front of the CompactLogix processor must be in the REM or PROG
position.
1 If you are not already online to the processor, open the C
menu, and then choose D
with the processor.

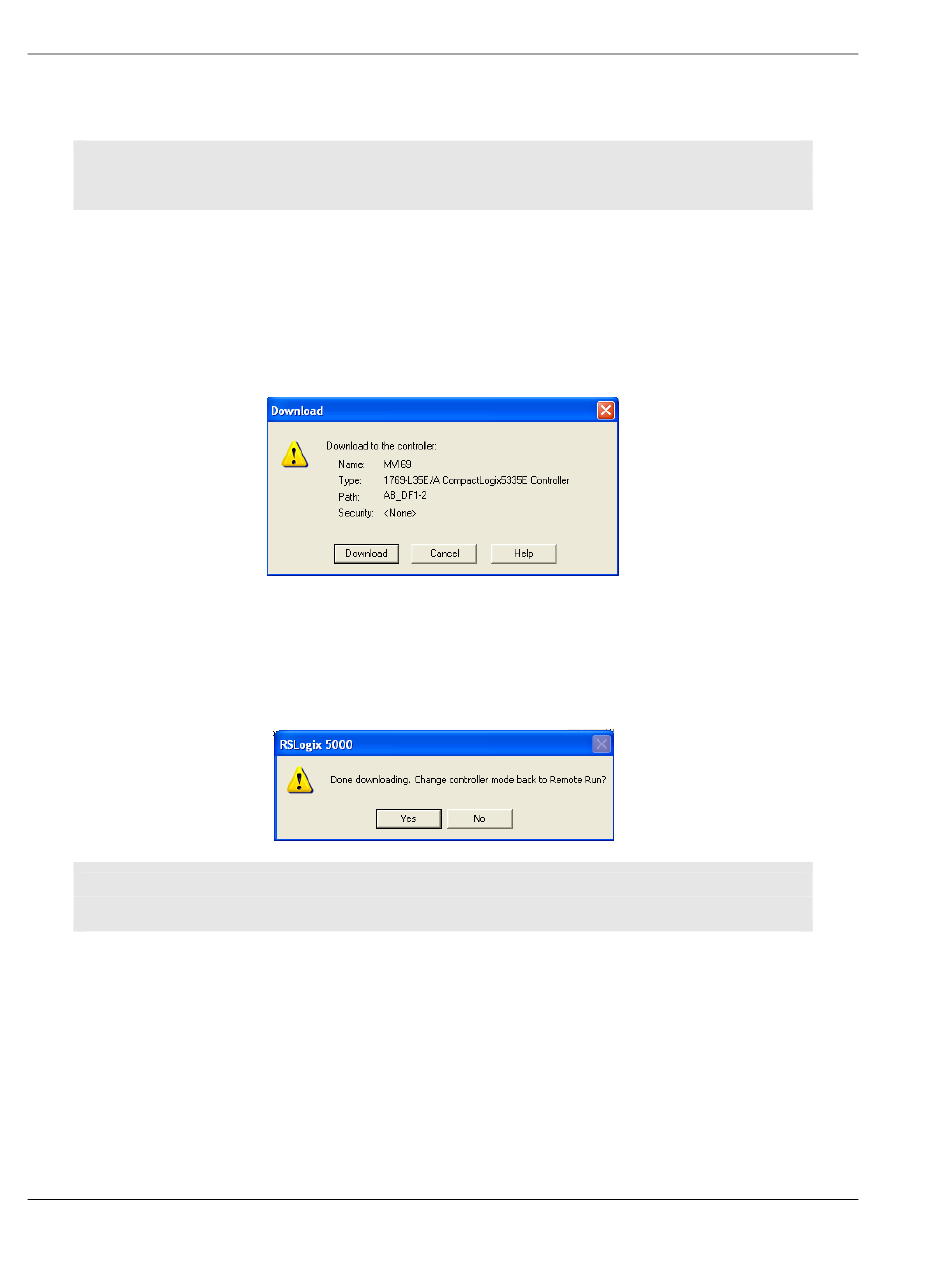

2 When communication is established, RSLogix will open a confirmation dialog
box. Click the D
processor.
3 RSLogix will compile the program and transfer it to the processor. This
process may take a few minutes.
4 When the download is complete, RSLogix will open another confirmation
dialog box. Click OK to switch the processor from PROGRAM mode to RUN
mode.
Note: If you receive an error message during these steps, refer to your RSLogix documentation to
interpret and correct the error.
Page 36 of 225
. RSLogix will establish communication
OWNLOAD
button to transfer the sample program to the
OWNLOAD
