(13) Verify the electrical bond between the KDC 100EXP and the airframe conforms to the guidelines
listed in Section 3.10 Electrical Bonding Considerations. Verify the electrical bond between the
harness backshell and the airplane ground is less than or equal to 10.0 milliohms.

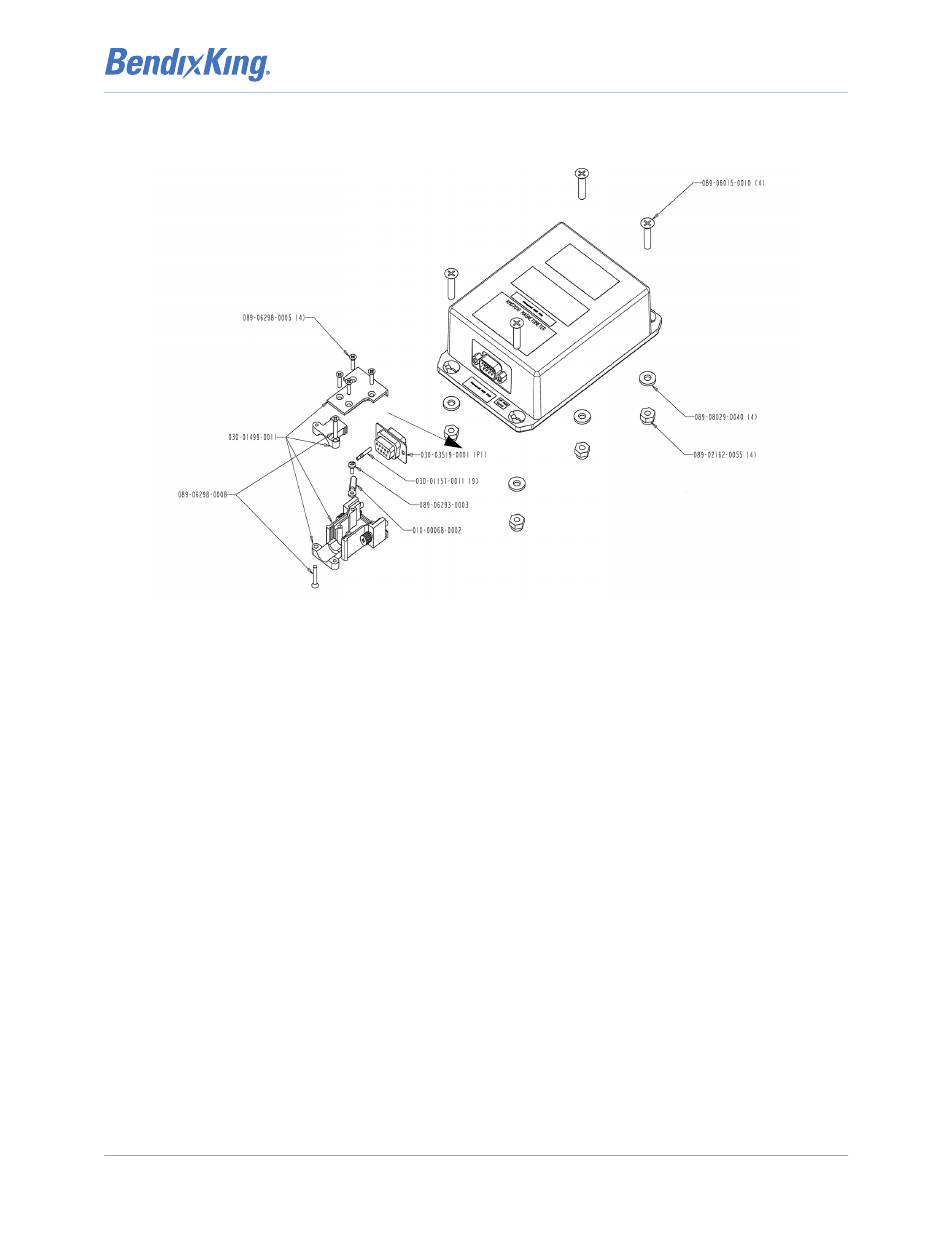

Figure 4-19 KDC 100EXP Data Connector Installation Diagram

89000109-002
Rev 2
© Honeywell International Inc. Do not copy without express permission of Honeywell.
For Use in Non-Certified Aircraft
P1
xVue Touch Installation Manual
Page 4-18
