Figure B-5 Audio Panel Interconnect Diagram - BENDIXKing XVUE TOUCH Installation Manual

NOTES:
1
2
3
4
89000109-002
Rev 2
For Use in Non-Certified Aircraft
KSD 100
J2
AUDIO_ALERTS_OUT 46
AUDIO_ALERTS_OUT_REF 47
Twisted Shielded Pair/Triplet and Shielded Single Wire
x
All wires shall conform to ANSI/NEMA WC 27500
x
Do not remove any wiring between other active aircraft systems. Leave those systems installed as they are.
All shield grounds are to be grounded at the closest grounding point to their respective connectors . This includes connector grounding points.
For metallic backshells with grounding capability, ground shield directly to the backshell.
Connections shown in parentheses "()" denotes an alternate acceptable interconnect.
Drawing Symbols:
-
Shielded Twisted Pair

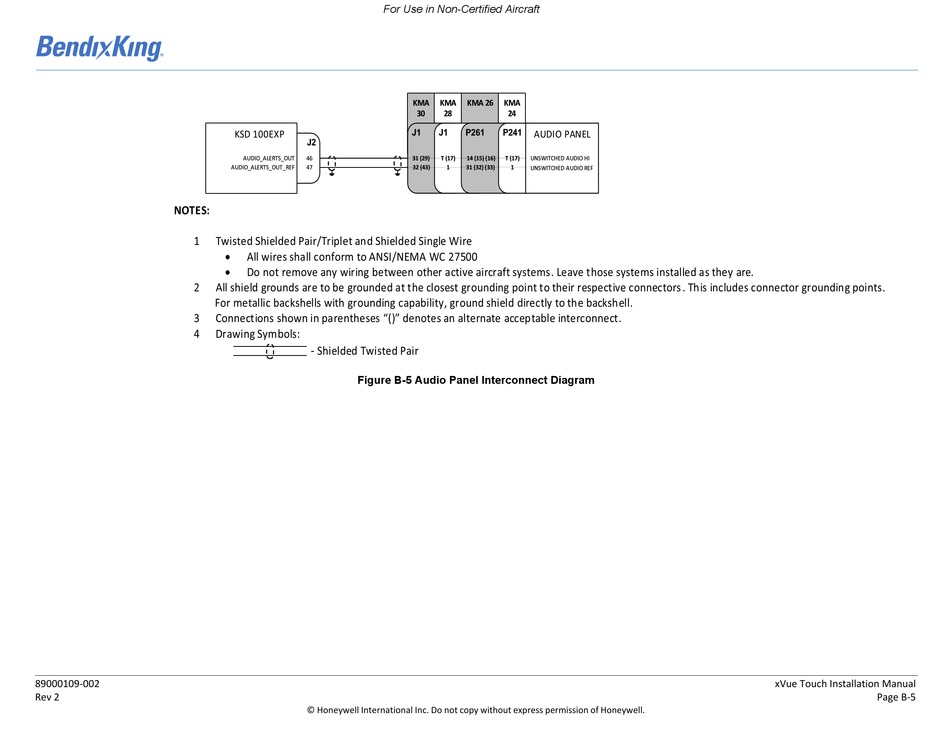

Figure B-5 Audio Panel Interconnect Diagram

© Honeywell International Inc. Do not copy without express permission of Honeywell.
KMA KMA KMA 26 KMA
30 28 24
J1 J1 P261 P241
AUDIO PANEL
31 (29) 31 (29) T (17) T (17) 14 (15) (16) 14 (15) (16) T (17) T (17) UNSWITCHED AUDIO HI
32 (43) 32 (43) 1 31 (32) (33) 31 (32) (33) 1 1 UNSWITCHED AUDIO REF
xVue Touch Installation Manual
Page B-5
