For Use in Non-Certified Aircraft

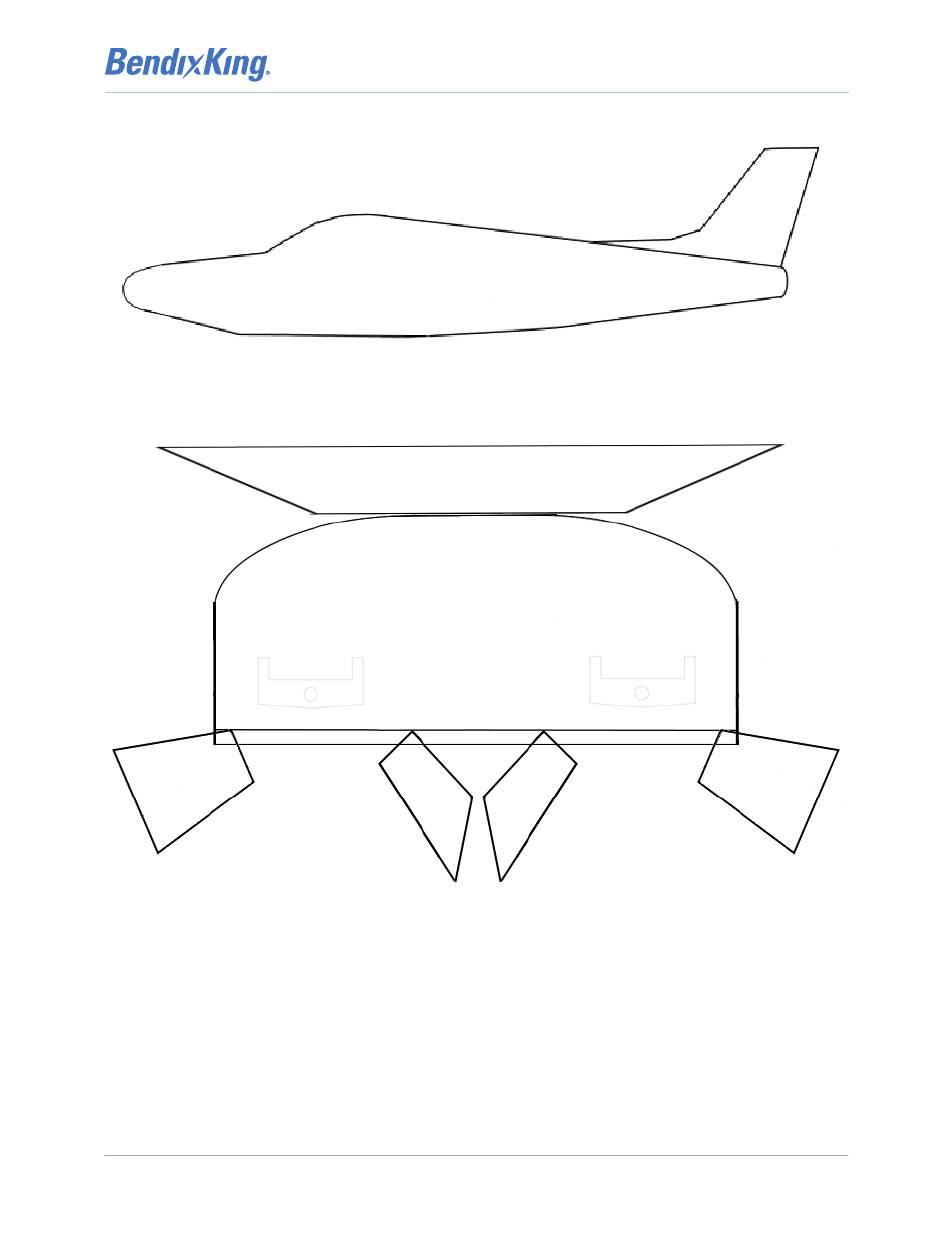

On Figure C-2, draw in the location of the xVue Touch System components and the wiring routing.

Figure C-2 xVue Touch System Components and Cable Routing (Side View)

On Figure C-3, draw in the xVue Touch Circuit Breaker and Switch locations on the cockpit depiction.

Figure C-3 xVue Touch System Circuit Breakers and Switch Locations

89000109-002 xVue Touch Installation Manual
Rev 2 Page C-3
