THE KMG 7010/MD32 CALIBRATION SHOULD BE PERFORMED TOGETHER WITH THE KG
71EXP OFFSETS MEASUREMENT USING THE SAME LEVELING POSITION TO ENSURE THAT
THE AIRPLANE IS IN THE SAME REFERENCE POSITION FOR BOTH KG 71EXP AND KMG
7010/MD32 CALIBRATIONS.
If the Discard button is selected, the last stored orientation and offsets will be restored.

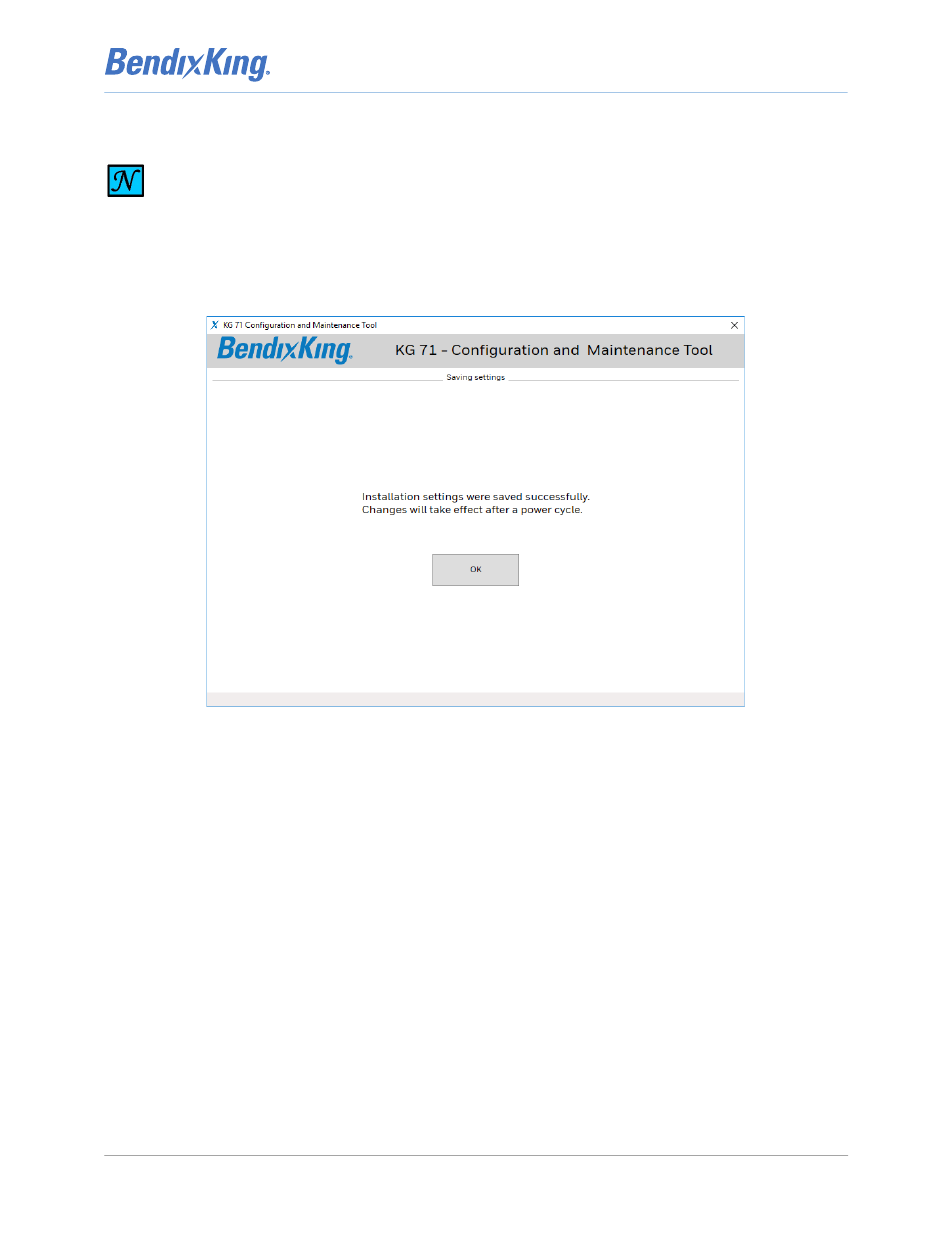

Figure 6-49 CMT Confirmation of Orientation and Offsets Store

6.3.1.2 KG 71EXP Digital I/O Configuration

The "Digital I/O" tab illustrated in displays the KG 71EXP I/O configuration and provides means to modify
the I/O setup. The KG 71EXP has a dedicated receive channel, Rx0, for the PFD and the SDI must be set to
match the PFD's value. The SDI can be set to values of 00, 01, 10, and 11. The SDI is set to 01 for standard
installations.
89000109-002
Rev 2
© Honeywell International Inc. Do not copy without express permission of Honeywell.
For Use in Non-Certified Aircraft
NOTE
xVue Touch Installation Manual
Page 6-41
