(1) From the PFD sub-menu, Figure 6-23, press the VSI button to display the VSI Selection menu,
Figure 6-25:
(2) Select desired VSI Range
(3) Press the Back-Arrow button to return to the PFD sub-menu.
(4) Verify that the desired VSI Range is reflected correctly on the VSI button, shown in Figure 6-23.

6.2.2.2 Airspeed

The KSD renders the color bands and lines on the PFD Airspeed Tape that are defined through the
following rules:
(1) V : Never Exceed speed. If V
NE
band from V to the max tape value. A Radial Red Line is displayed on the airspeed tape at V
NE
(2) V : Normal Operations Maximum Structural Cruise speed. For airplane with no published V
NO
set V = V . A yellow band is displayed on the airspeed tape between V
NO NE
be less than or equal to V
(3) V : Maximum Flaps Extended speed (top of white band).
FE
(4) V : No Flaps Stall speed. A green band is displayed on the airspeed tape between V
S1
V must be less than V
S1
(5) V : Full Flaps Stall speed (bottom of white band). A white band is displayed on the airspeed tape
SO
between V and V
SO
(6) V : Single engine best rate of climb speed for a multi-engine airplane. A blue horizontal line is
YSE
displayed at the V
Single/Multi Engine parameter is set to Multi.
(7) V : Minimum Control Airspeed with Critical Engine Inoperative. A red horizontal line is displayed
MC
at the V airspeed. The V
MC
Engine parameter is set to Multi.
The Airspeed sub-menu, Figure 6-27, displays the current value and color band for each of the V-Speeds
and allows the values to be modified by selecting the specific V-Speed button(s). When the Airspeed sub-
menu is displayed, a mock V-Speed tape, Figure 6-26, is also displayed. The mock tape illustrates the
relative position and color bands for the V-Speeds in a graphical representation.
89000109-002
Rev 2
© Honeywell International Inc. Do not copy without express permission of Honeywell.
For Use in Non-Certified Aircraft

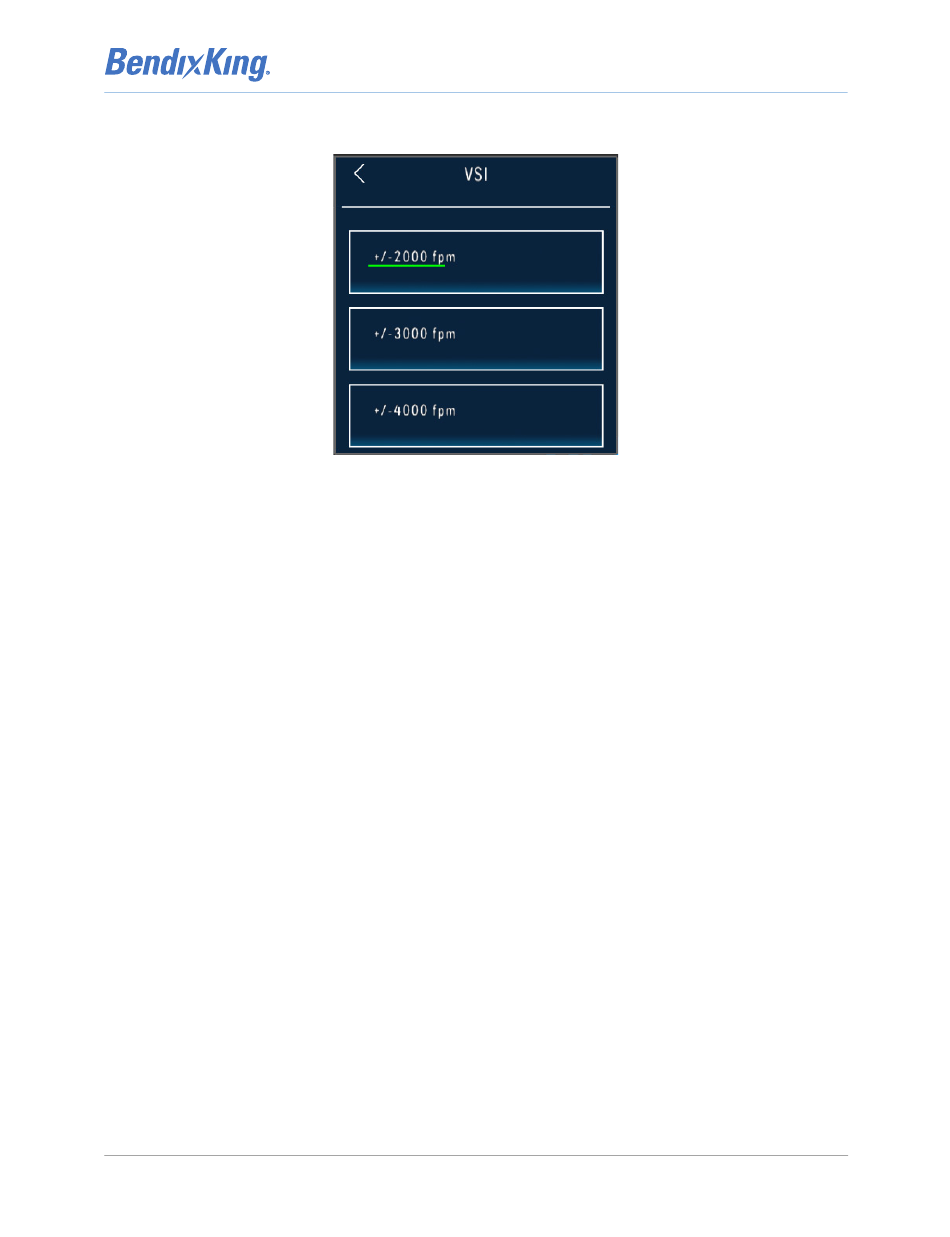

Figure 6-25 VSI Selection Menu

is defined the airspeed tape displays a red and white barber pole
NE
.
NE
.
NO
. V must be less than V
FE SO
airspeed. The V V-Speed is only made available for setting when the
YSE YSE
V-Speed is only made available for setting when the Single/Multi
MC
.
FE
xVue Touch Installation Manual
.
NE
,
NO
and V . V must
NO NE NO
and V .
S1 NO
Page 6-18
