2.3 xVue Touch Overview

The xVue Touch System is a touch-controlled Smart Primary Flight Display (PFD) and Multifunction
Display (MFD) that replaces the traditional 6- and 8-pack flight instruments. The xVue Touch System is
illustrated in Figure 2-1 and consists of:
(1) KSD 100EXP Primary Flight Display
(2) KCP 100EXP Control Panel
(3) KG 71EXP Air Data Attitude Heading Reference System (ADAHRS)
(4) KMG 7010 Magnetometer or MD32 Magnetometer
(5) KDC 100EXP Data Converter (included with MD32 Magnetometer)
(6) KTP 73 Outside Air Temperature (OAT) Probe
(7) Configuration Module
The xVue Touch System is depicted in Figure 2-1 and Figure 2-2.
Ambient
Light Sensor
USB Port
KG 71EXP ADAHRS
KTP 73 OAT Probe
The xVue Touch System provides primary flight and multi-function information integrated into one
display for reduced workload, improved safety, and better reliability. The KSD 100EXP display includes
Attitude, Horizontal Situation Indication, Turn Coordinator, Airspeed, Altimeter, Vertical Speed
Indication, and Course Deviations. Additionally, the KSD 100EXP has the capability to display Moving
89000109-002
Rev 2
© Honeywell International Inc. Do not copy without express permission of Honeywell.
For Use in Non-Certified Aircraft
KSD 100 EXP PFD
OR
MD32 Magnetometer
KMG 7010
Magnetometer
KDC 100EXP
Data Converter

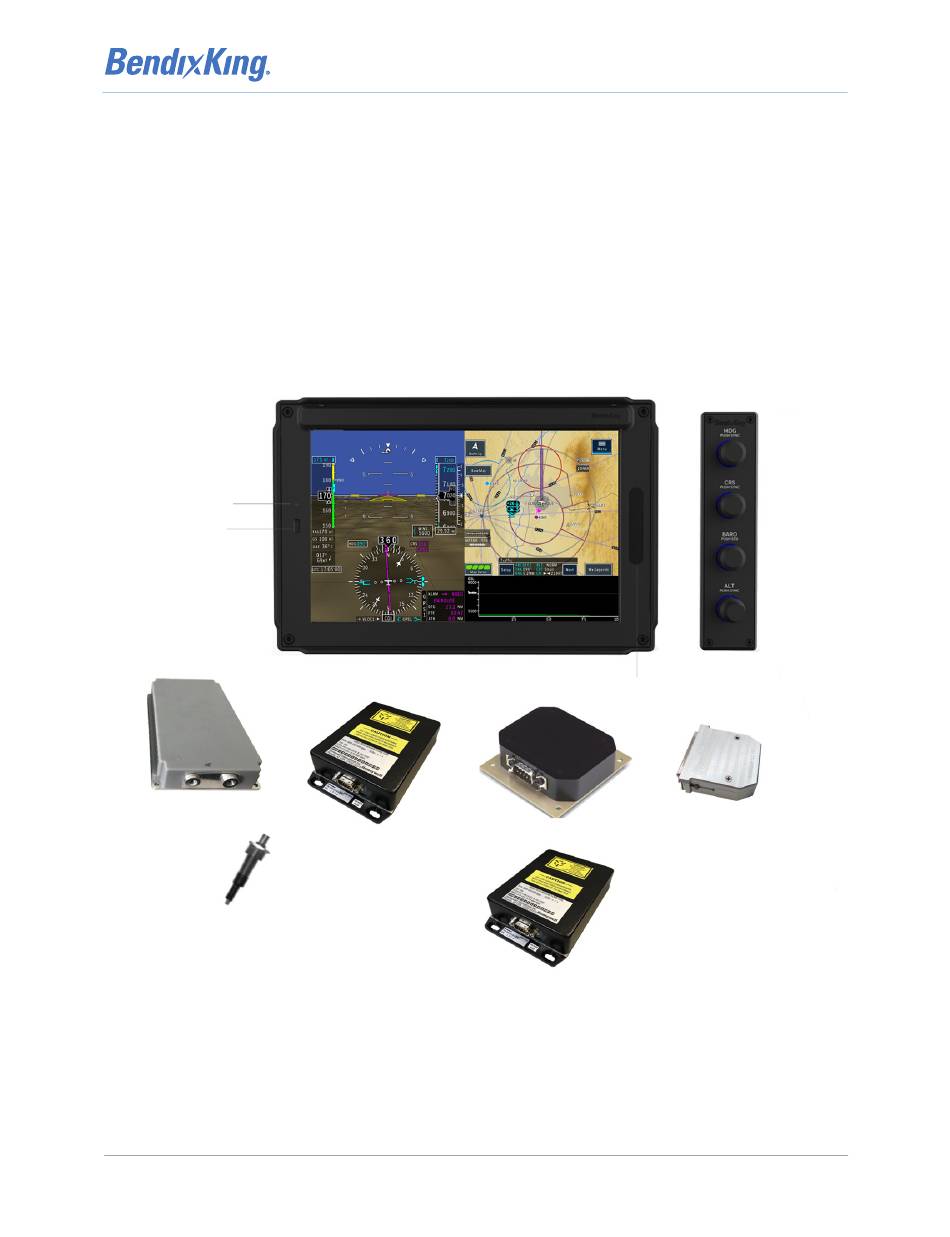

Figure 2-1 xVue Touch System Components

KCP 100EXP
Control Panel
Wi-Fi Antenna
Configuration
Module
