(b) Secure the Santoprene™ Grip to the LCD mount using the eight #2-56 screws with thread-
locking compound. Torque screws to 2 in-lbs (0.22 Nm) maximum.
(2) Ensure all wiring and power checks have been completed per Section 6.1. Ensure the airplane
instrument panel has been prepared per Section 4.2.
(3) Ensure all power is removed from the airplane.
(4) Verify grounding for the KSD 100EXP (see note below). If utilizing the center ground stud located
on the back of the KSD 100EXP (refer to Figure 4-1):
(a) Remove the ground stud nut on the back of the KSD 100EXP.
(b) Attach an airframe ground wire to the center ground stud.
(c) Reinstall the ground stud nut using thread-locking compound and torque existing nut to
20 ± 2 in-lbs (2.26 ± 0.22 Nm).
GROUNDING OF THE KSD 100EXP MAY BE ACCOMPLISHED THROUGH USE OF THE
GROUND STUD. USE OF THE GROUND STUD IS NOT REQUIRED IF THE UNIT IS ALREADY
GROUNDED (RESISTANCE OF NO MORE THAN 2.5 MILLIOHMS) TO THE INSTRUMENT
PANEL/AIRFRAME.
89000109-002
Rev 2
© Honeywell International Inc. Do not copy without express permission of Honeywell.
For Use in Non-Certified Aircraft

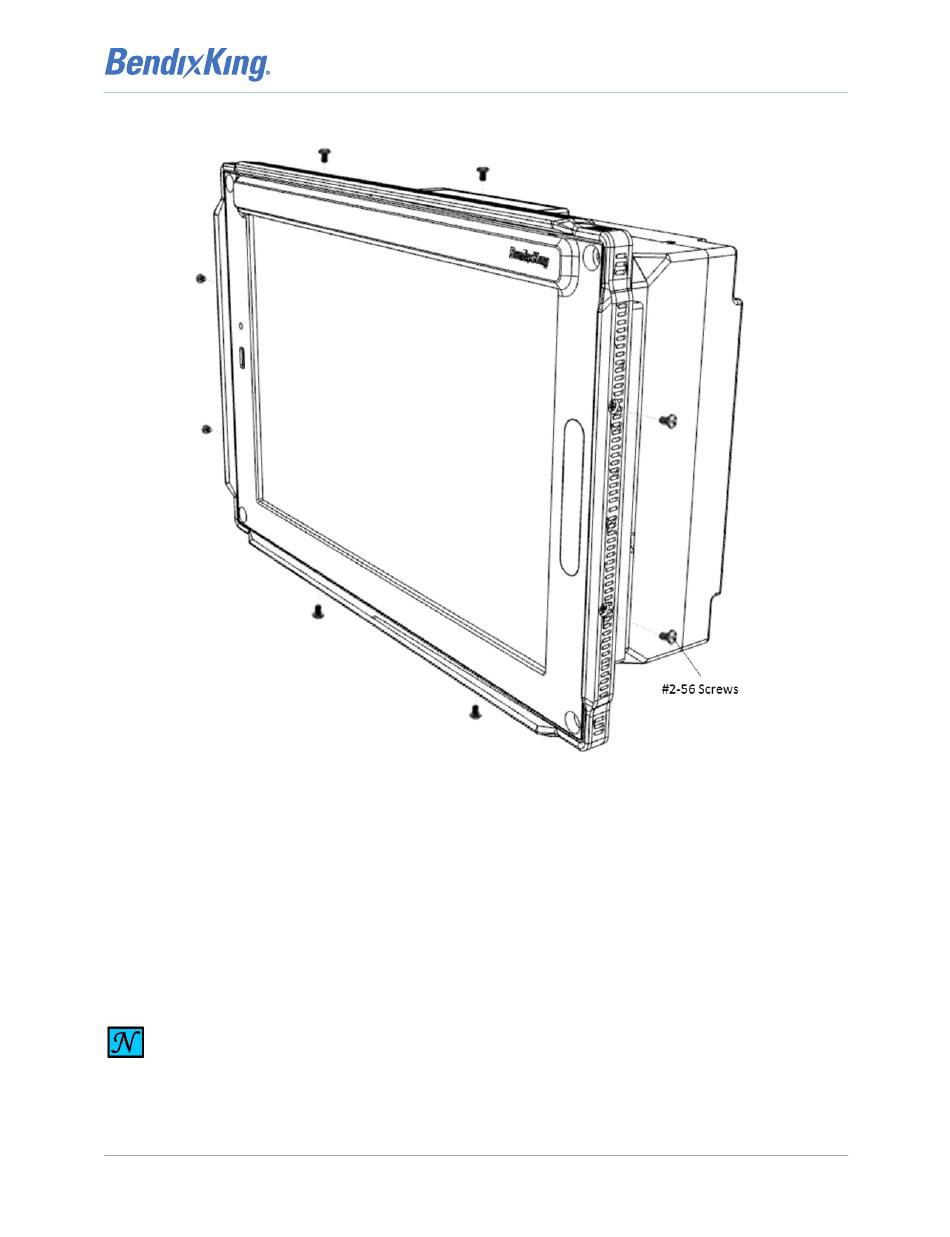

Figure 4-10 KSD 100EXP Grip Installation (Sheet 2 of 2)

NOTE
xVue Touch Installation Manual
Page 4-8
