Figure 4-6 Configuration Module Inside J2 Backshell; Table 4-1 Configuration Module (J2 Backshell) Pin Descriptions - BENDIXKing XVUE TOUCH Installation Manual

Table 4-1 Configuration Module (J2 Backshell) Pin Descriptions

J2 Pin
64
65
66
67
68
69
70
The bottom side of the J2 Backshell is illustrated in Figure 4-8, showing the ground connections for the
shielding. The wired configuration module in the J2 Backshell is illustrated in Figure 4-6.
(1) Cut seven lengths of 22AWG wire (M22759/16-22-XX), per Table 4-1, to 2.5 ± 0.5 inches.
(2) Solder the seven lengths of wire per J-STD-001 to the Configuration Module CCA provided in the
KSD 100EXP Installation Kit -Configuration Module using Table 4-1 Configuration Module (J2
Backshell) Pin Descriptions.
WIRES ARE INSERTED IN THE CIRCUIT CARD THROUGH HOLES FROM THE SECONDARY
SIDE AND SOLDERED TO THE PRIMARY SIDE OF THE CARD (REFER TO FIGURE 4-7). VERIFY
SOLDER JOINTS DO NOT PROTRUDE MORE THAN 0.080 INCHES FROM THE CARD
SURFACE (PRIMARY SIDE).
89000109-002
Rev 2
© Honeywell International Inc. Do not copy without express permission of Honeywell.
For Use in Non-Certified Aircraft
Signal Name In/Out
APM Master Out Out
APM Master In
APM Clock
APM Chip Select
APM Write Protect
APM Power PWR
APM Return GND

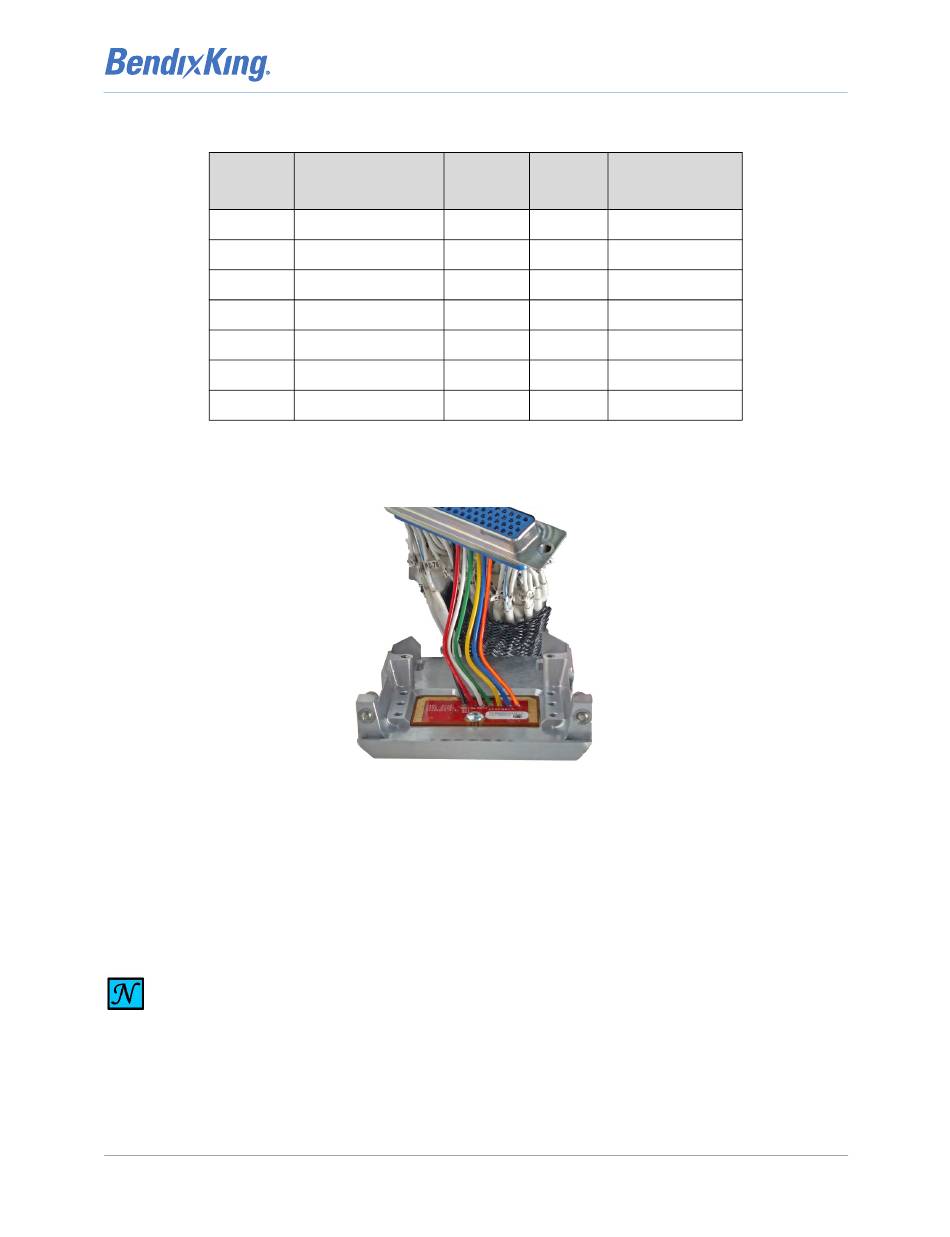

Figure 4-6 Configuration Module Inside J2 Backshell

NOTE
CCA Wire Color
(Recommended)
E1 Orange
In E2 Blue
In E3 Yellow
In E4 Green
In E5 White
E6
E7 Black
Red
xVue Touch Installation Manual
Page 4-5
