6.2.1.3 Aircraft Tail Number

(1) From the System Config sub-menu, Figure 6-8, press the A/C Tail # button.
(2) Using the alpha-numeric keyboard, shown in Figure 6-13, input the aircraft tail number and press
the Enter button.
(3) Verify that the Tail Number is reflected correctly on the Aircraft Tail # button as illustrated in
Figure 6-14.
89000109-002
Rev 2
© Honeywell International Inc. Do not copy without express permission of Honeywell.
For Use in Non-Certified Aircraft

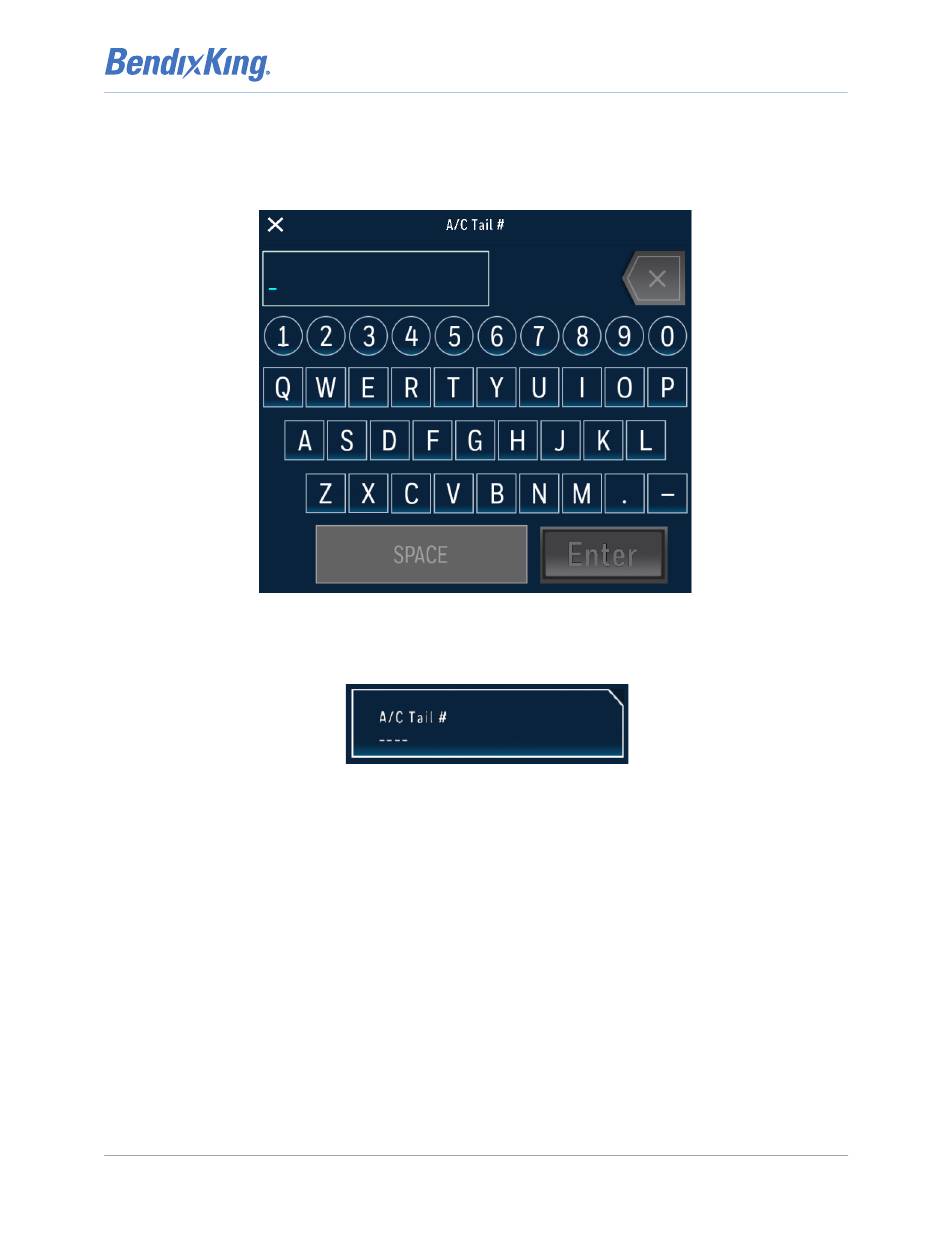

Figure 6-13 A/C Tail # Keypad

Figure 6-14 A/C Tail Number
