7.2.6 Outside Air Temperature Checkout

There are no calibration requirements for the temperature probe. Verify the data provided by the OAT is
displaying the current ambient temperature within ±3°C.

7.2.7 GPS Receiver

The following procedure requires the airplane to be located outside of the installation hanger, with the
GPS antenna(s) having a clear view of the sky/GPS satellite constellation, to allow for display of GPS data
on the KSD 100EXP.
(1) Ensure the airplane is located outside.
(2) On the Navigator, ensure the GPS has acquired a position by verifying the airplane ownship on the
GPS display or through the GPS status page (available on most GPS systems).
(3) On the Navigator, clear any existing Flight Plan, and enter a Direct-To waypoint with a known
location relative to the airplanes current position.
(4) On the Navigator, set the CDI switch to GPS.
(a) A GPS/Nav Radio Navigator CDI switch can be set to either GPS or VLOC.
(b) A GPS only Navigator will not have a CDI switch, and this step 4 can be ignored.
(5) From the KSD 100EXP screen, press the CDI button located at the bottom of the PFD screen,
Figure 7-1.
(6) From the CDI Source sub-menu, Figure 7-5, set the navigation source to either "NAV1" or "GPS1".
(a) A GPS/Nav Radio Navigator will be displayed as "NAV1".
(b) A GPS only Navigator will be displayed as "GPS1".

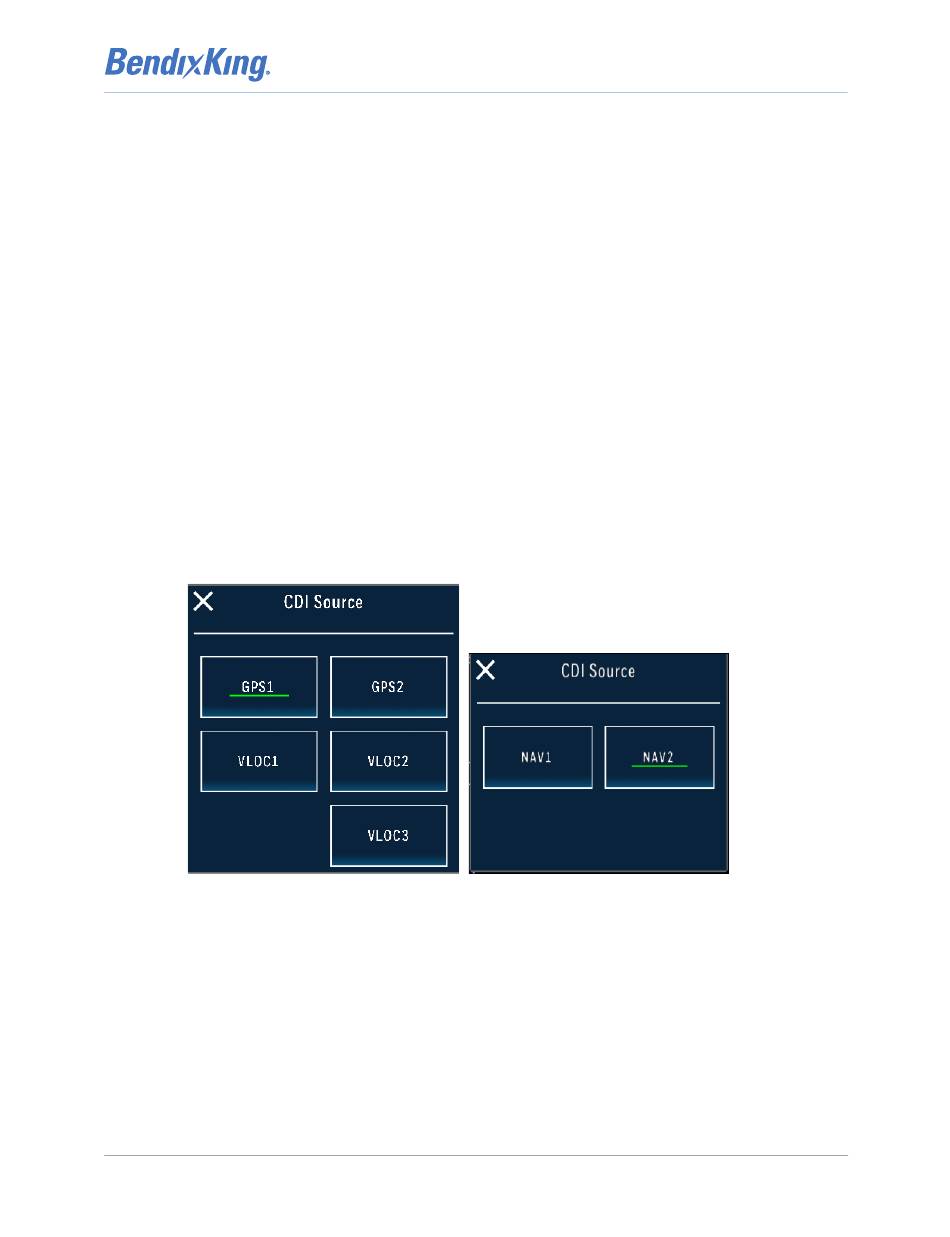

Figure 7-5 CDI Source Sub-Menu (Options Shown For Reference)

(7) Press the "X" button to close the CDI Source sub-menu and return to the KSD 100EXP screen.
(8) From the KSD 100 EXP screen, Figure 7-1, press the Menu button, Figure 7-2, located at the top
right.
