IF A PROBLEM OCCURS DURING THE KSD 100EXP SOFTWARE UPDATE, CONTACT
BENDIXKING CUSTOMER SUPPORT.

7.5.2.1.1 KSD 100EXP Software Field Loading Procedure

(1) Format the USB drive to FAT32.
(2) Download KSD 100EXP software onto the USB drive from the BendixKing Website - Dealer Portal.
THE UNZIPPED SOFTWARE. TAR FILE MUST BE SAVED TO THE USB ROOT DIRECTORY AND
NOT CONTAINED IN A FOLDER.
(3) Apply power to the KSD 100EXP display by setting the PFD breaker or turning on the avionics.
(4) Access Config Mode (refer to steps in Section 6.2)
(5) Insert the USB drive with USB-C adapter into the front USB port on the KSD 100EXP (refer to
Figure 2-1 for USB port location).
(6) From the Installer Main menu, press the Software Loading button.
(7) Press the Check USB for updates button on the Software Loading sub-menu as shown in Figure 7-
40.

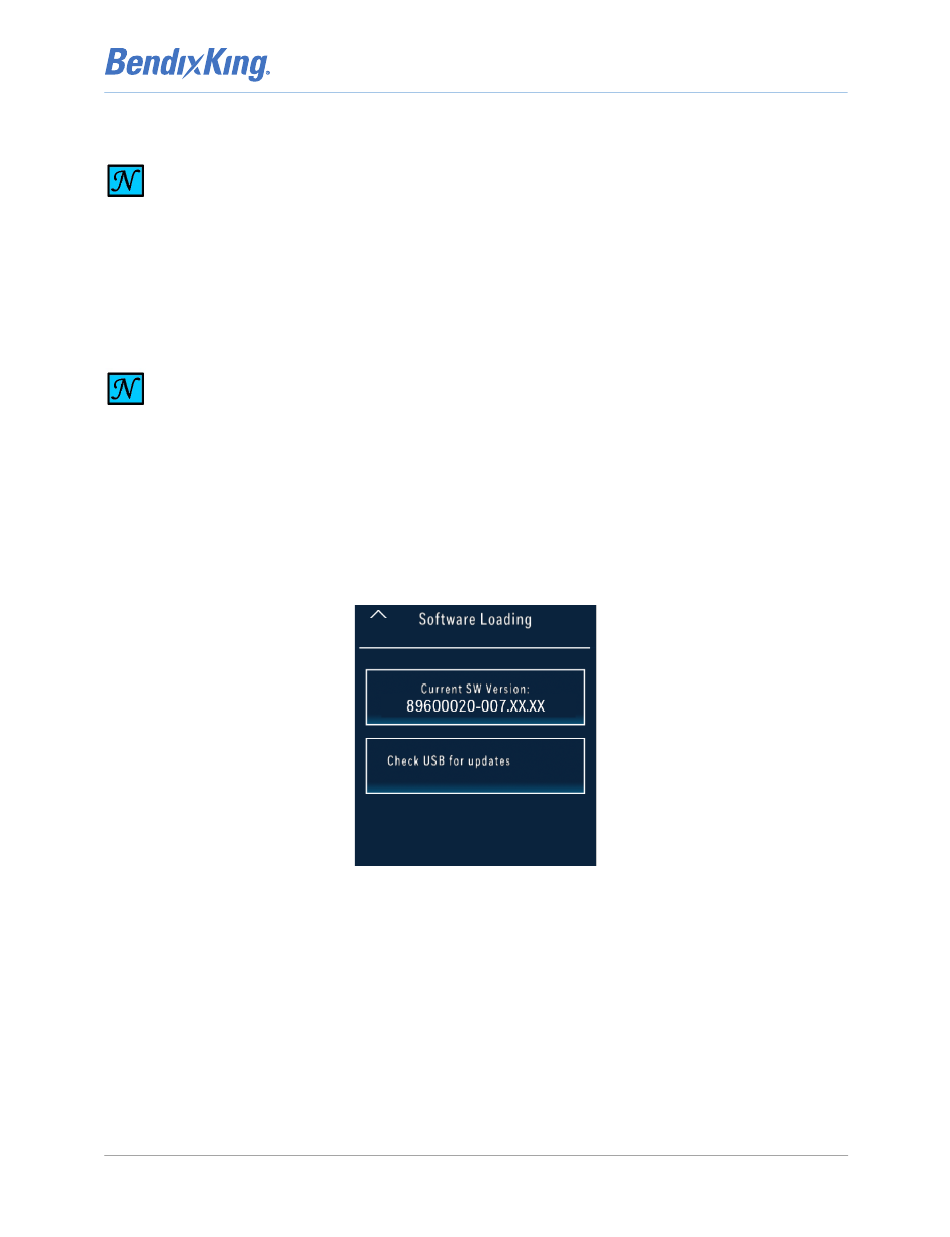

Figure 7-40 Software Loading Sub-Menu (Check for USB Updates)
