For Use in Non-Certified Aircraft
(14) Select "Start Loading to KSD" to begin the database loading process.

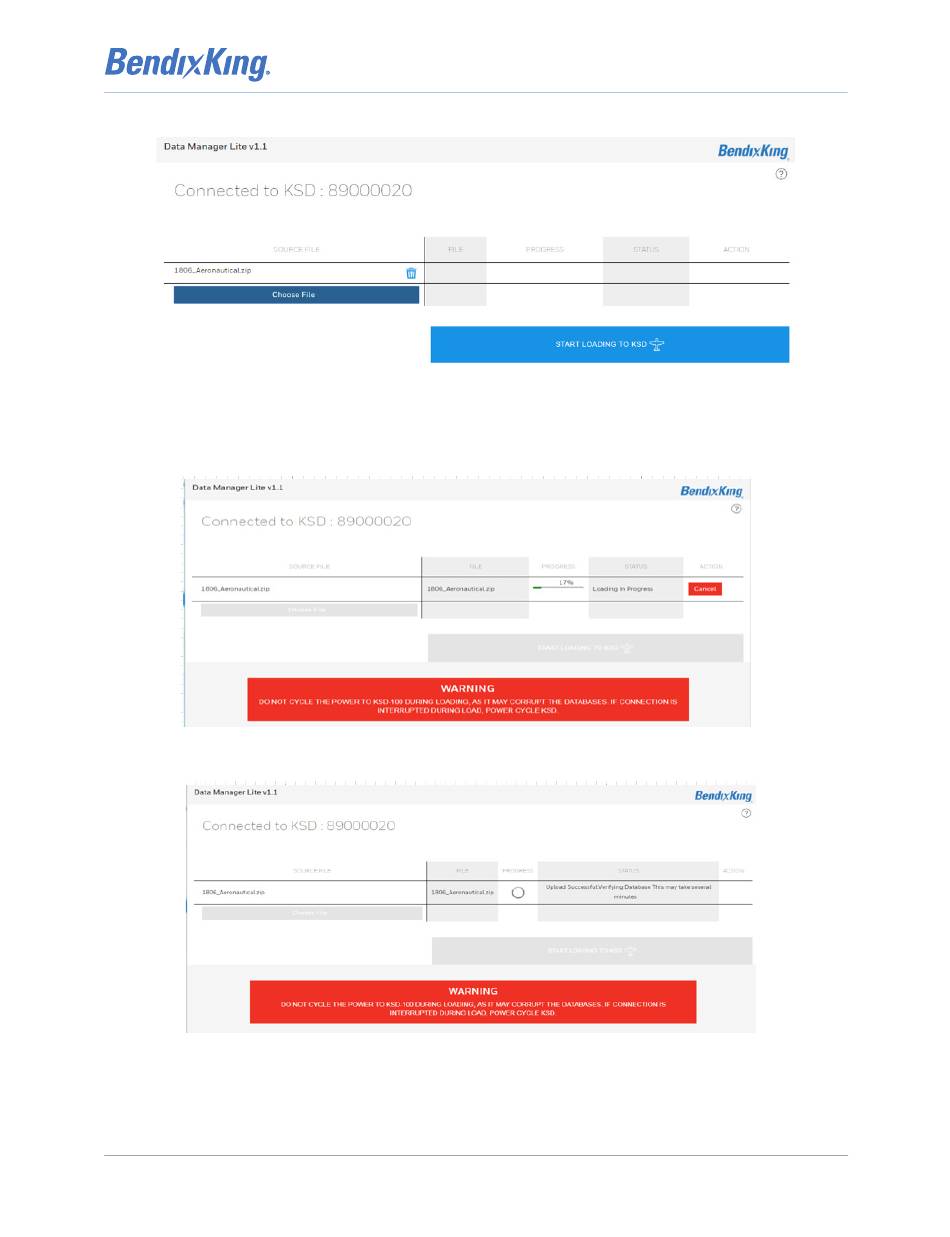

Figure 7-24 Wi-Fi Webpage with Selected Database

Uploading and verifying the database(s) takes about 6 to 10 minutes. This process uploads the databases
from the external device to the KSD 100EXP, Figure 7-25, and verifies the database information, Figure 7-
26.

Figure 7-25 Uploading Databases to KSD 100EXP

Figure 7-26 Verifying Databases

89000109-002 xVue Touch Installation Manual
Rev 2 Page 7-21
