Terrain Awareness And Warning System (Taws) Toggle; Figure 6-29 Master Vol Sub-Menu; Figure 6-30 Taws Toggle - BENDIXKing XVUE TOUCH Installation Manual

(2) From the Master VOL sub-menu, set the Volume by touching the bar or incrementing the + and -
buttons to adjust the volume to the desired level, shown in Figure 6-29.
(3) Press the Master Audio Test button to test the volume level.
A TRIPLE CHIME WILL BE PLAYED FOLLOWED BY THE WARNING TERRAIN TERRAIN AUDIO.
THE VOLUME CAN BE ADJUSTED WHILE THE AUDIO TEST FILES ARE BEING PLAYED.
(4) Using a headset, repeat steps (2) and (3) adjusting the volume as needed.
(5) If there are other audio systems installed in the airplane, compare the volume level of the xVue
Touch System with the other system(s) and adjust as needed.
(6) Press the Back-Arrow button to return to the PFD sub-menu.

6.2.2.4 Terrain Awareness and Warning System (TAWS) Toggle

The TAWS configuration is used to indicate if an external TAWS is installed in the airplane.
The TAWS configuration is accessed from the PDF sub-menu, Figure 6-23, and the current TAWS
configuration selection is shown on the TAWS button as seen in Figure 6-30.
IF AN EXTERNAL TAWS IS INSTALLED, IT PROVIDES THE ALERT FOR TERRAIN/OBSTACLE
THREAT/ALERT AND THE KSD 100EXP PFD INTERNAL ALERT IS INHIBITED.
(1) Press the TAWS button to toggle between Not Installed and Installed, shown in Figure 6-30.
89000109-002
Rev 2
© Honeywell International Inc. Do not copy without express permission of Honeywell.
For Use in Non-Certified Aircraft

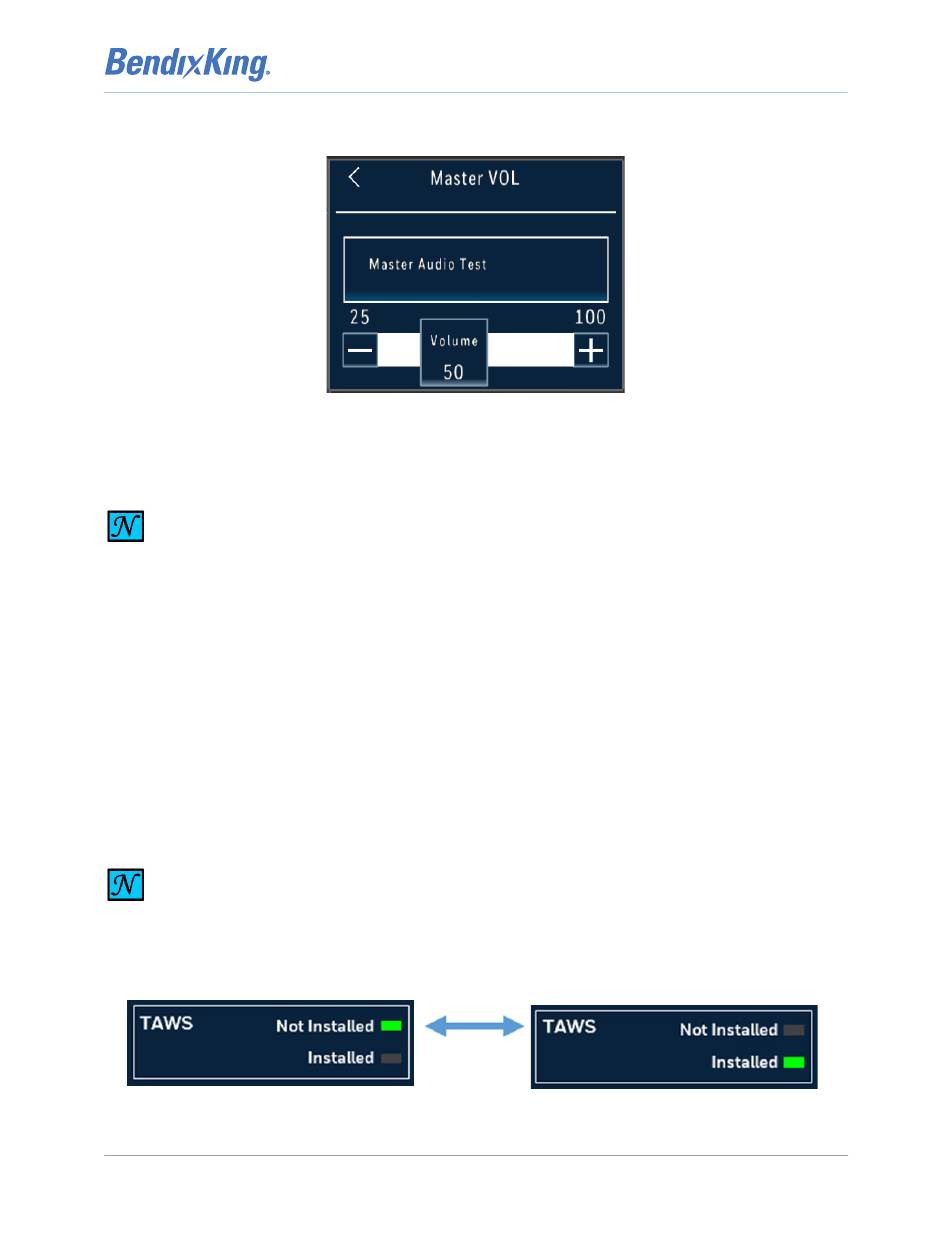

Figure 6-29 Master VOL Sub-Menu
