For Use in Non-Certified Aircraft

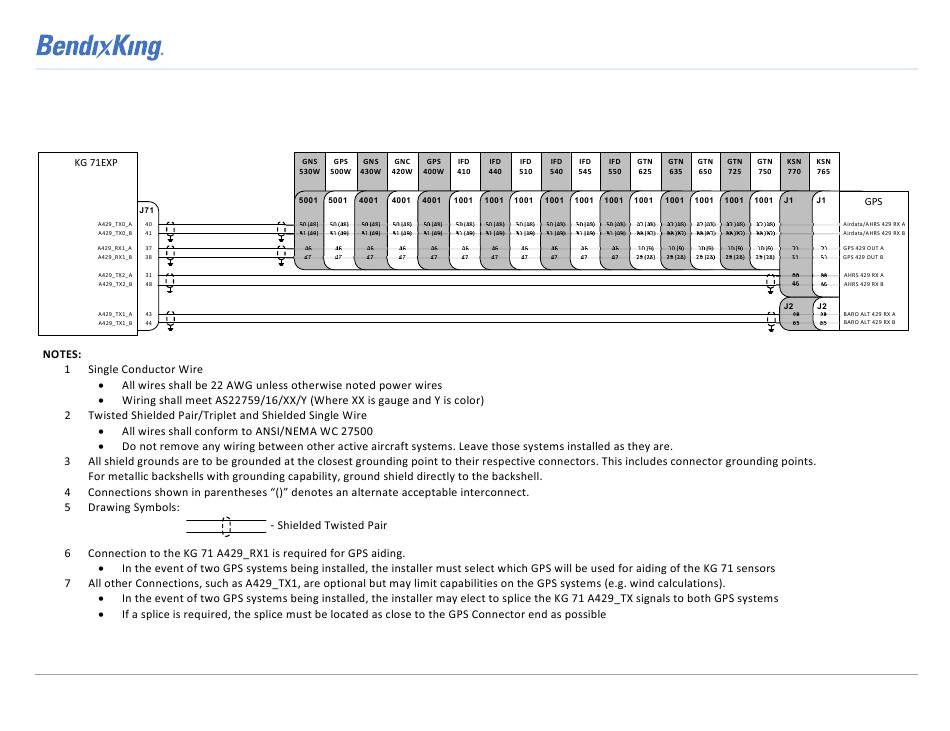

Figure B-9 KG 71 LRU Interconnect Diagram - 3
89000109-002
xVue Touch Installation Manual
Rev 2
Page B-9
