Figure B-3 Weather And Traffic Interconnect Diagram - BENDIXKing XVUE TOUCH Installation Manual

NOTES:
89000109-002
Rev 2
For Use in Non-Certified Aircraft
KGX
130R
J1
KSD 100
J1
UAT_WX_RS232_TX 9
UAT_WX_RS232_RX 8
UAT_WX_RS232_GND 26
1 Single Conductor Wire
x
All wires shall be 22 AWG unless otherwise noted power wires
x
Wiring shall meet AS22759/16/XX/Y (Where XX is gauge and Y is color)
2 Twisted Shielded Pair/Triplet and Shielded Single Wire
x
All wires shall conform to ANSI/NEMA WC 27500
x
Do not remove any wiring between other active aircraft systems. Leave those systems installed as they are.
3 All shield grounds are to be grounded at the closest grounding point to their respective connectors . This includes connector grounding points.
For metallic backshells with grounding capability, ground shield directly to the backshell.
4 Drawing Symbols:
- Shielded Twisted Pair

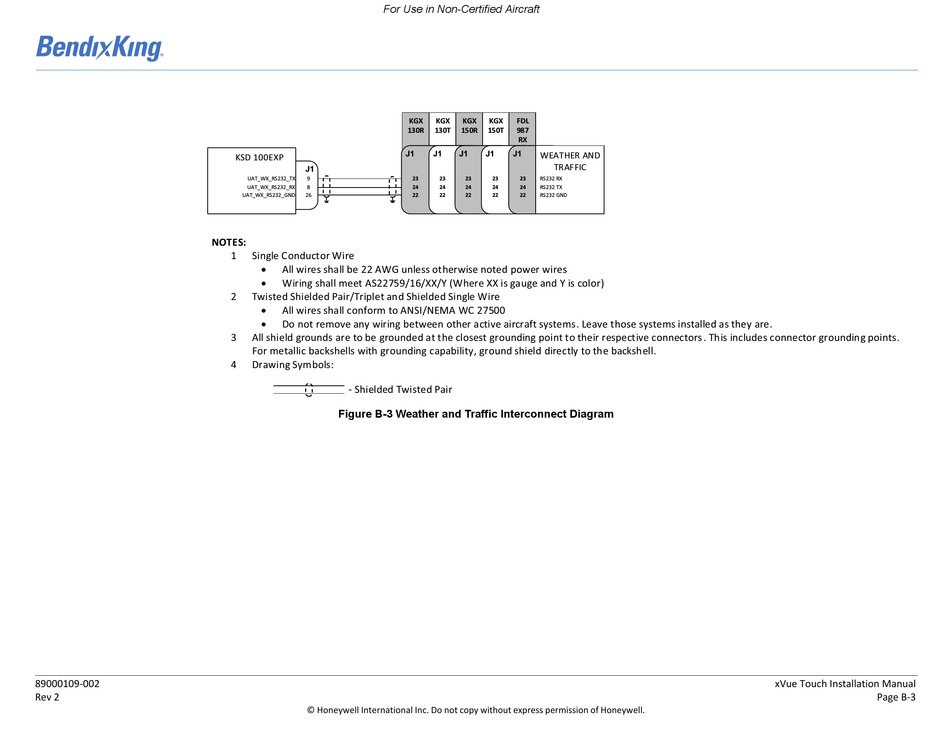

Figure B-3 Weather and Traffic Interconnect Diagram

© Honeywell International Inc. Do not copy without express permission of Honeywell.
KGX KGX KGX FDL
130T 150R 150T 987
RX
J1 J1 J1 J1
WEATHER AND
TRAFFIC
23 23 23 23 23 RS232 RX
24 24 24 24 24 RS232 TX
22 22 22 22 22 RS232 GND
xVue Touch Installation Manual
Page B-3
