(10) From the PFD Menu, press the Bearing Pointers button, to launch the Bearing Pointers sub-menu,
Figure 7-8.
(11) From the Bearing Pointers sub-menu, press the Pointer 1 button and set the Bearing 1 source to
GPS1, Figure 7-9.
(12) From the Pointer 1 sub-menu, press the Up Arrow "^" button to return to the Bearing Pointers
sub-menu.
(13) From the Bearing Pointers sub-menu, Figure 7-8, press the Pointer 2 button and set the source to
GPS1, Figure 7-9.
(14) Close the Main Menu, by pressing the "X" button, to return to the KSD 100EXP screen.
(15) From the KSD 100EXP PFD screen, verify the following:
(a) Verify the CDI source is set to "GPS1", displayed in magenta.
(b) Verify the CDI CRS numeric value and CDI course pointer matches the GPS Navigators
desired track (DTK).
89000109-002
Rev 2
© Honeywell International Inc. Do not copy without express permission of Honeywell.
For Use in Non-Certified Aircraft

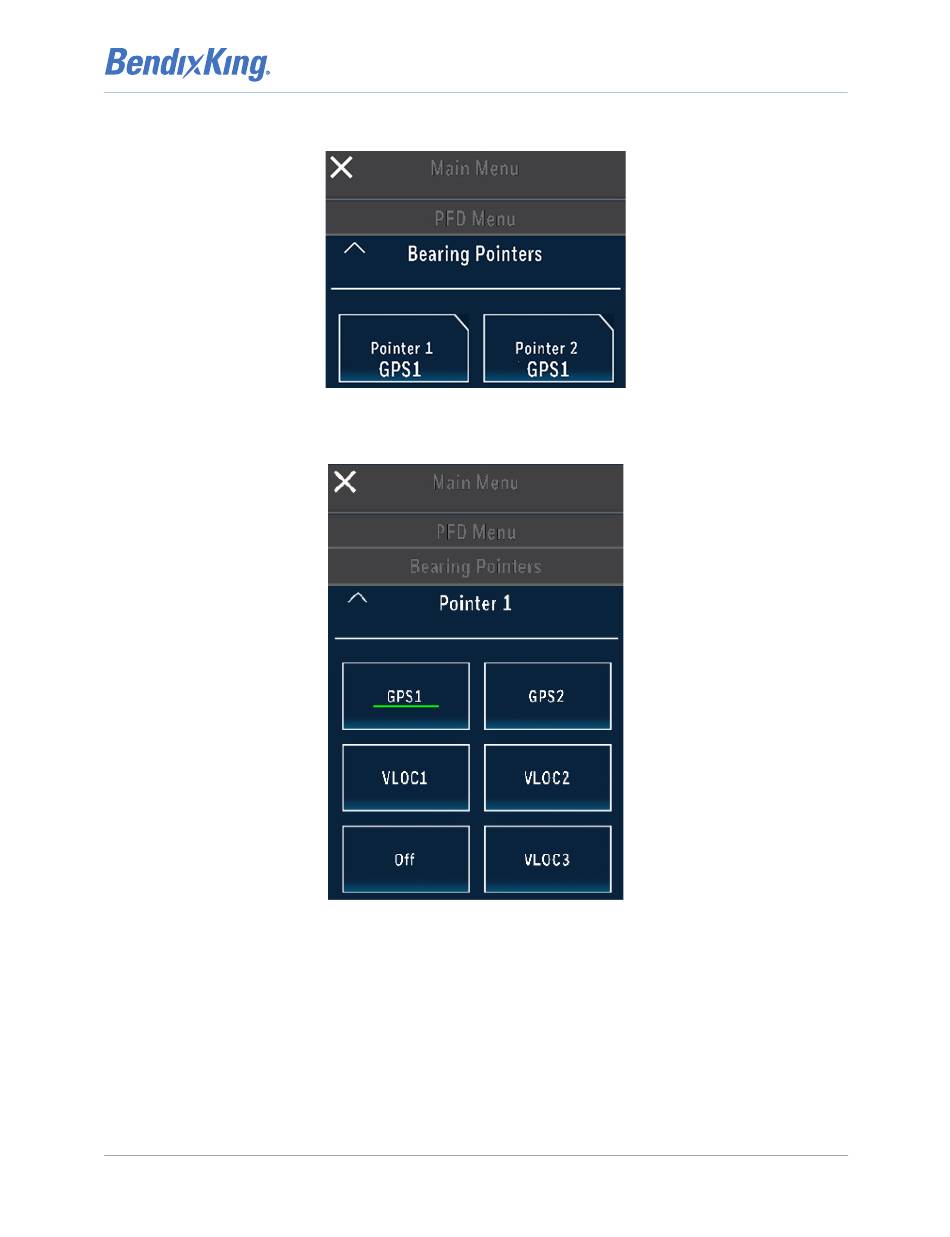

Figure 7-8 Bearing Pointers Sub-Menu
