Fronius Robacta TX W Operating Instructions Manual page 43

(4)
(3)
(5)

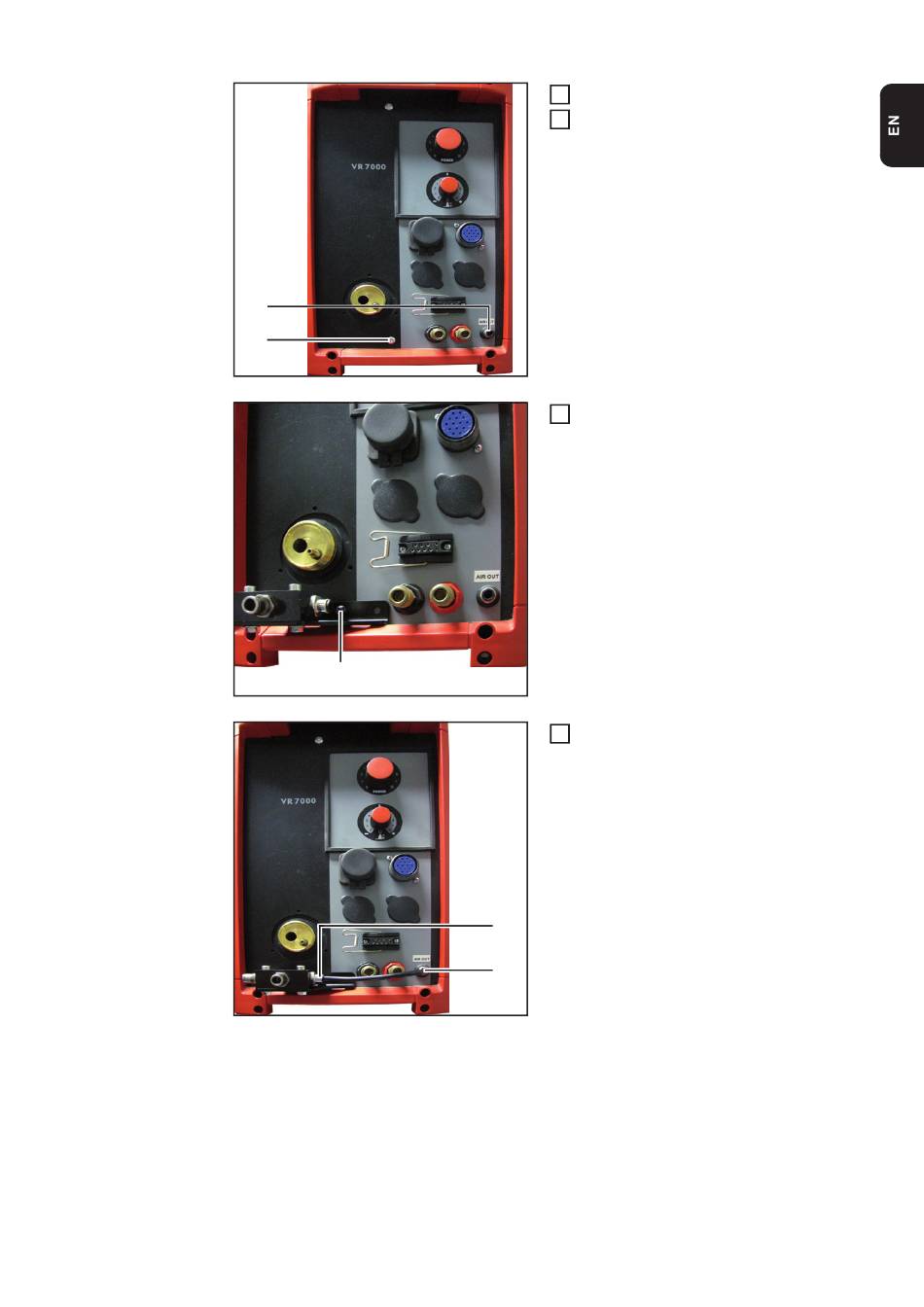

Undo screw (3)
3
Disconnect compressed air line from
4
the gas purging option connection (4)
Fit mounting plate and junction valve
5
onto wire-feed unit and secure using
the TX 25 screw (5) provided
Insert the supplied compressed air line
6
with an outer diameter of 6 mm into
connection (6) on the junction valve
and into the gas purging option
connection (7)
(6)
(7)
43
