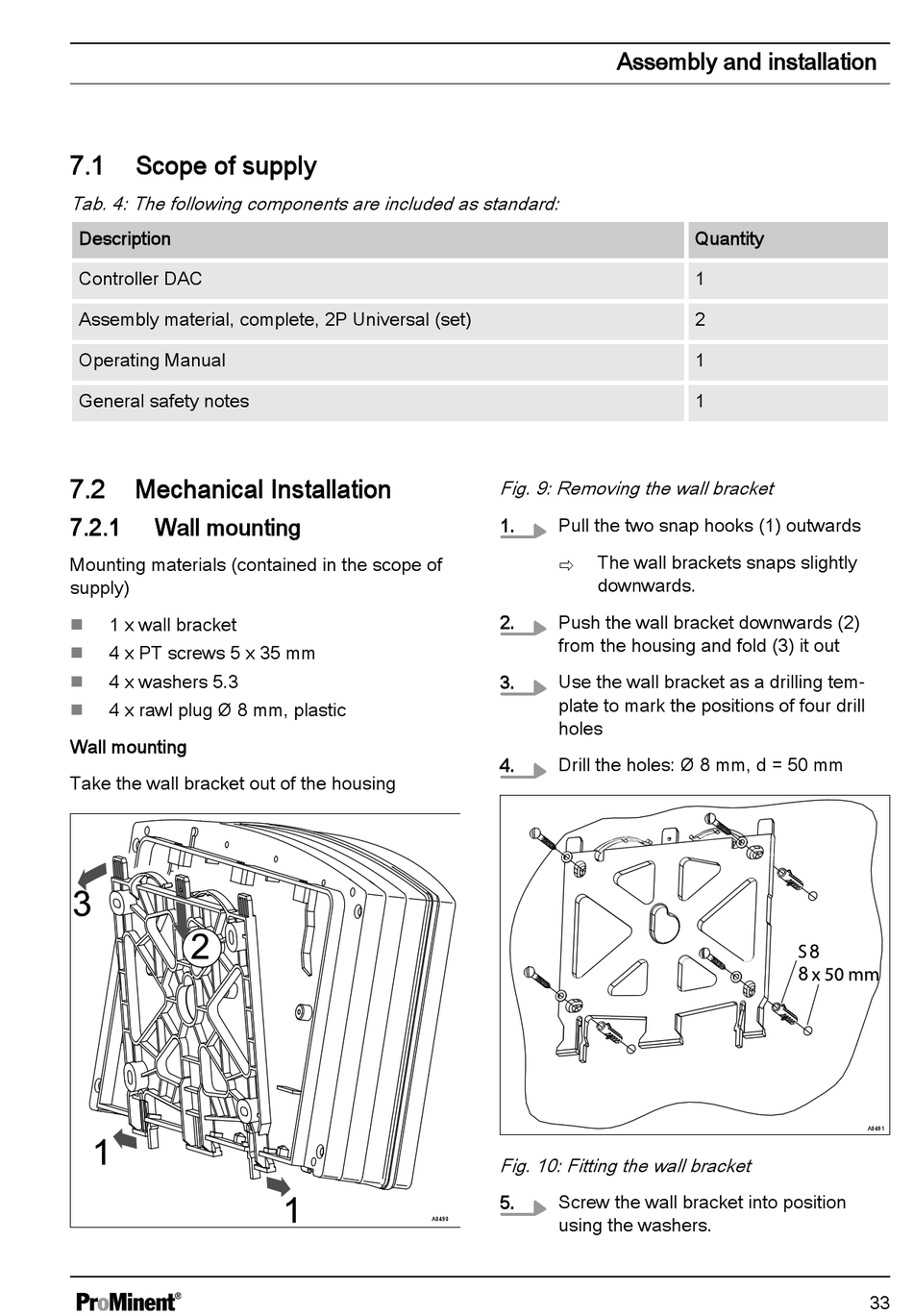

7.1
Scope of supply
Tab. 4: The following components are included as standard:
Description
Controller DAC
Assembly material, complete, 2P Universal (set)
Operating Manual
General safety notes
7.2
Mechanical Installation
7.2.1
Wall mounting
Mounting materials (contained in the scope of
supply)
1 x wall bracket
n
4 x PT screws 5 x 35 mm
n
4 x washers 5.3
n
4 x rawl plug Ø 8 mm, plastic
n
Wall mounting
Take the wall bracket out of the housing
Fig. 9: Removing the wall bracket
1.
Pull the two snap hooks (1) outwards
The wall brackets snaps slightly
ð
downwards.
2.
Push the wall bracket downwards (2)
from the housing and fold (3) it out
3.
Use the wall bracket as a drilling tem‐
plate to mark the positions of four drill
holes
4.
Drill the holes: Ø 8 mm, d = 50 mm
Fig. 10: Fitting the wall bracket
5.
Screw the wall bracket into position
using the washers.
A0490
Assembly and installation
Quantity
1
2
1
1
A0491
33
