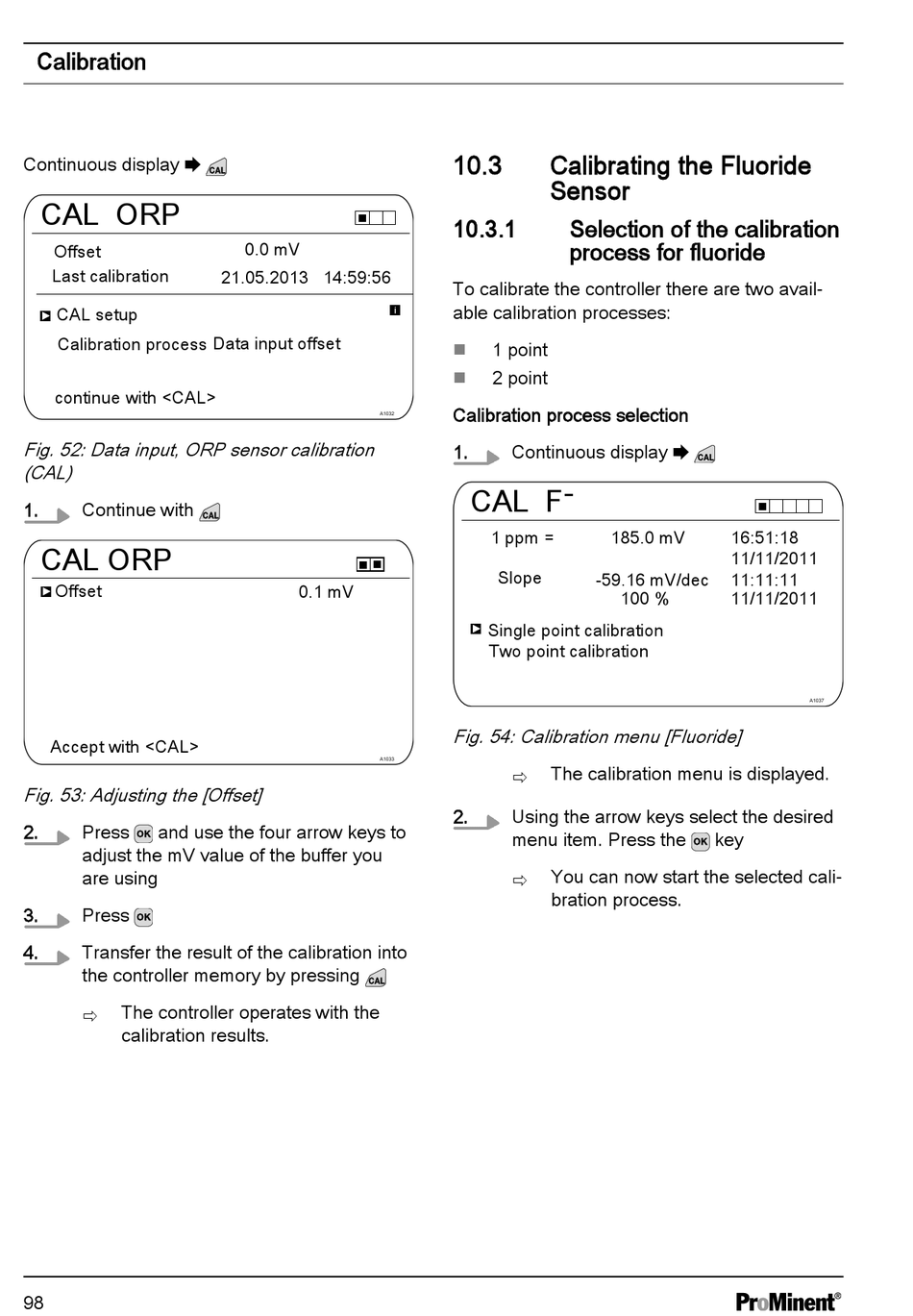

Calibration
Continuous display ➨
CAL ORP
Offset
Last calibration
CAL setup
Calibration process
continue with <CAL>
Fig. 52: Data input, ORP sensor calibration
(CAL)
1.
Continue with
CAL ORP
Offset
Accept with <CAL>
Fig. 53: Adjusting the [Offset]
2.
Press
and use the four arrow keys to
adjust the mV value of the buffer you
are using
3.
Press
4.
Transfer the result of the calibration into
the controller memory by pressing
The controller operates with the
ð
calibration results.
98
0.0 mV
21.05.2013 14:59:56
Data input offset
A1032
0.1 mV
A1033
10.3
Calibrating the Fluoride
Sensor
10.3.1
Selection of the calibration
process for fluoride
To calibrate the controller there are two avail‐
able calibration processes:
1 point
n
2 point
n
Calibration process selection
1.
Continuous display ➨
CAL F -
1 ppm =
185.0 mV
Slope
-59.16 mV/dec
100 %
Single point calibration
Two point calibration
Fig. 54: Calibration menu [Fluoride]
The calibration menu is displayed.
ð
2.
Using the arrow keys select the desired
menu item. Press the
You can now start the selected cali‐
ð
bration process.
16:51:18
11/11/2011
11:11:11
11/11/2011
A1037
key
