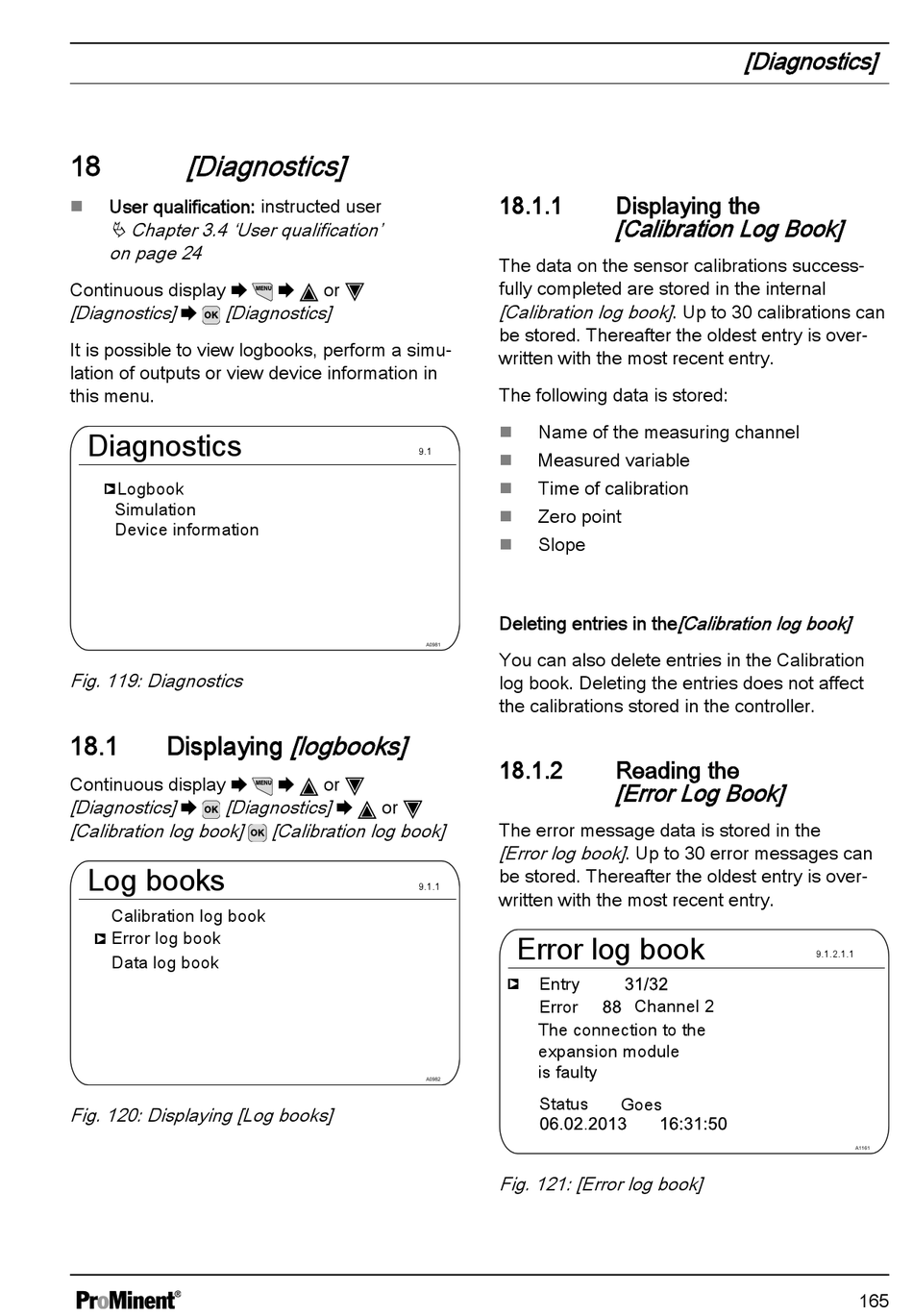

[Diagnostics]

18
User qualification: instructed user
n
Ä Chapter 3.4 'User qualification'
on page 24
Continuous display ➨
[Diagnostics] ➨ [Diagnostics]
It is possible to view logbooks, perform a simu‐
lation of outputs or view device information in
this menu.
Diagnostics
Logbook
Simulation
Device information
Fig. 119: Diagnostics
18.1 Displaying
Continuous display ➨
[Diagnostics] ➨ [Diagnostics] ➨
[Calibration log book]
Log books
Calibration log book
Error log book
Data log book
Fig. 120: Displaying [Log books]
➨ or
9.1
[logbooks]
➨ or
or
[Calibration log book]
9.1.1
18.1.1 Displaying the
[Calibration Log Book]
The data on the sensor calibrations success‐
fully completed are stored in the internal
[Calibration log book] . Up to 30 calibrations can
be stored. Thereafter the oldest entry is over‐
written with the most recent entry.
The following data is stored:
Name of the measuring channel
n
Measured variable
n
Time of calibration
n
Zero point
n
Slope
n
Deleting entries in the
You can also delete entries in the Calibration
log book. Deleting the entries does not affect
the calibrations stored in the controller.
18.1.2 Reading the
[Error Log Book]
The error message data is stored in the
[Error log book] . Up to 30 error messages can
be stored. Thereafter the oldest entry is over‐
written with the most recent entry.
Error log book
Entry
Error Channel 2
The connection to the
expansion module
is faulty
Status Goes
Fig. 121: [Error log book]
[Diagnostics]
[Calibration log book]
9.1.2.1.1
165
