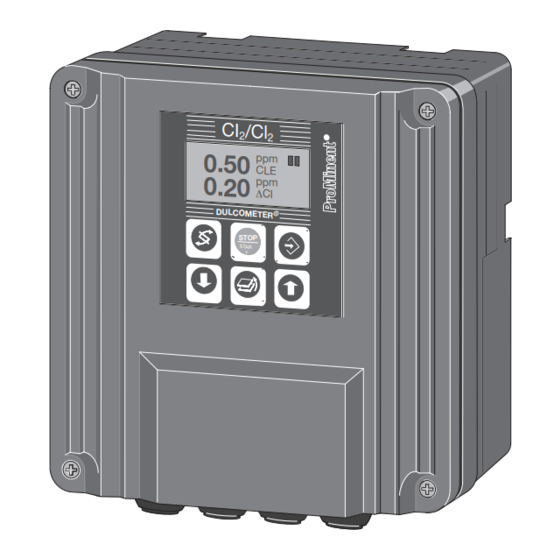

Operating Instructions
®
DULCOMETER
D2C
Part 2: Adjustment and Operation,
Measured Variables pH/chlorine
D2C2-001-pH/chlorine-GB
type D
type W
___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___
D2C A
Please enter the identity code of your device here!
Please completely read through operating instructions!
Do not discard!
•
The warranty shall be invalidated by damage caused by operating errors!
Part No. 987855
ProMinent Dosiertechnik GmbH · 69123 Heidelberg · Germany
BA DM 104 04/03 GB

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DULCOMETER D2C and is the answer not in the manual?

Questions and answers

Related Manuals for ProMinent DULCOMETER D2C

Summary of Contents for ProMinent DULCOMETER D2C

  • Page 1 Please enter the identity code of your device here! Please completely read through operating instructions! Do not discard! • The warranty shall be invalidated by damage caused by operating errors! Part No. 987855 ProMinent Dosiertechnik GmbH · 69123 Heidelberg · Germany BA DM 104 04/03 GB...

  • Page 2: Device Identification / Identity Code

    Device Identification / Identity Code D2C A DULCOMETER ® controller Series D2C Wall mounting Panel mounting (96 x 96 mm) Operating voltage 230 V 50/60 Hz 115 V 50/60 Hz 24 V AC/DC Measured variable 1/Measured variable 2 pH (0-14 pH) / Chlorine (0...0,5/2/5/10/20/50 ppm) Connection of meas.

  • Page 3: Table Of Contents

    Contents / General User Information Page 1 Device Identification / Identity Code ....................... 2 2 General User Information .......................... 3 3 Device Overview / Controls ........................4 4 Functional Description ..........................5 5 Display Symbols ............................6 6 Operating ..............................7 7 Operating Menu / Overview ........................

  • Page 4: Device Overview / Controls

    Device Overview / Controls Display field Measured variable pH/chlorine Graphic display pH/Cl "Start/Stop" "Change" button button "Enter" button "Branch back" button ® DULCOMETER "Up" "Down" STOP button button START D2C2-002-pH/chlorine-GB CHANGE button UP button To change over within a menu level To increase a displayed numerical value and to change from one variable to and to change variables (flashing...

  • Page 5: Functional Description

    Functional Description NOTE Please refer to the description of the operating menu for a detailed description of the ® individual characteristics of the DULCOMETER D2C controller! Operating Menu ® The DULCOMETER D2C controller permits settings to be made in two different menus. All values are preset and can be changed in the complete operating menu.

  • Page 6: Display Symbols

    Display Symbols ® The display of the DULCOMETER D2C controller uses the following symbols: Symbol Description Comment Limit value transgression measured value 1 Symbol Relay 1 upper or zone left Symbol Relay 1 lower left Limit value transgression measured value 2 Symbol Relay 2 upper or zone right...
  • Page 7 Operation The various menus are Permanent Permanent selected with the CHANGE display 2 display 1 button The menu is started with the ENTER button Permanent Permanent display 3 display 4 BRANCH BACK to permanent display or to relevant setting menu Calibration Calibration notes menu...

  • Page 8: Operating

    Operating Menu / Overview The setting menus highlighted in grey and the adjustable parameters are only visible in the complete operating menu. value 1 7.20 pH 7.20 value 2 0.45 ppm 0.45 stop-key value 1 7.00 pH value 2 0.45 ppm s.
  • Page 9 Operating Menu / Overview limit 2 lower 0.60 ppm limit 1 upper 0.10 ppm limit value 2 chlorine only with limit relay limit 2 lower limit relay: hysteresis limit: 0.60 ppm - active closed 0.04 ppm ∆t on limit 1 upper checkout time limit: ∆t off...
  • Page 10 Operating Menu / Overview correction value correction value setting? temperature automatic 25.0 °C measuring range measuring range chlorine setting? 0 ... 2.00 ppm mA output 1 measured value 4 mA = 2.00 pH 20 mA = 12.00 pH mA outputs mA output 1 mA output 1 mA output 1...

  • Page 11: Operating Menu / Description

    Operating Menu / Description Permanent displays value 1 7.20 pH 7.20 value 2 0.45 ppm 0.45 stop-key value 1 7.00 pH value 2 0.45 ppm s. point 7.20 pH s. point 0.45 ppm ctrlout ctrlout The permanent displays 1 to 4 serve information on fault messages/causes (see also table on page 22) as well as on operating values/settings.
  • Page 12 Operating Menu / Description Possible values Initial value Increment Lower value Upper value Remarks Buffer values pH 7 0.01 pH -2 pH 16 pH Error messages when both buffers pH 4 too close (<2 pH-values) Error message Condition Effect During calibration procedure: ∆Buffer <2 pH Buffer distance too small Recalibrate buffer 2!
  • Page 13 Operating Menu / Description calibration Cl DPD-value 0.45 ppm calibration Cl calibration Cl only with measuring zero p.: 4.00 mA zero p.: 4.00 mA slope: Slope: range 0,5 ppm 6.00 mA/ppm 6 mA/ppm calibration Cl zero point: value take over? 4.01 mA calibration end?
  • Page 14 Operating Menu / Description To carry out this function, see priming menu. Priming: priming acid priming chlor press -key press -key pump on pump on control stop ! control stop ! To prime with pH corrective agent or oxidant, press the change key to access the Prime (acid/alkali) or Prime oxidant settings menu.
  • Page 15 Operating Menu / Description Possible values Initial value Increment Lower value Upper value Remarks Type of limit transgression Limit transgression Measured value 1 pH upper upper when exceeding or lower dropping below value Measured value 2 chlorine lower upper lower Limit value Measured value 1 pH pH 8...
  • Page 16 Operating Menu / Description Control setpoint 7.20 pH dosing direction: acid control setting? control control value 1 pH automatic dosing direction acid manual dosing dosing direction: acid ctrl parameter additional load: = 10 % dosing direction: acid setpoint 0.40 ppm dosing direction: chlorine control...
  • Page 17 Operating Menu / Description Pumps The maximum stroke value of the metering pumps should correspond to the stroke frequency of the metering pump used. pumps pumps dosing pump max. setting? dosing direction pump 1: pump 1: acid pump 2: pump 2: chlorine pulse/minute Possible values Initial value...
  • Page 18 Operating Menu / Description Possible values Initial value Increment Lower value Upper value Remarks Relay 1 Measured value 1 pH Relay adjustment limit Limit Actuator* *e.g. motor pump Solenoid valve Relay is deactivated in case of fault and during Relay 2 calibration Measured value 2 chlorine Relay adjustment...
  • Page 19 Operating Menu / Description Measuring chlorine The measuring range (factory setting 0-2.00 ppm) must correspond to the chlorine measuring cell used. The factory setting (limits, setpoint...) is reset if the measuring range is altered. measuring range measuring range chlorine setting? 0 ...
  • Page 20 Operating Menu / Description Possible values Initial value Increment Lower value Upper value Remarks Variable allocation Measured value Measured value Regulated value Correcting value Output range 4…20 mA 0…20 mA 4…20 mA Range measured value 1 pH pH 2…pH 12 pH 0.01 pH -2 pH 16...
  • Page 21 Operating Menu / Description general setting ident-code D2CA alarm relay pause information W 0 PC 1000 A 10 E active - active closed software version - alarm off D2C-A1 FW.XX.XX - td: 10 min. control input - active closed - Cl const. load control input - active closed - sample flow...

  • Page 22: Technical Terms

    Technical Terms Calibration: By calibrating (adjusting), the measuring value readout will be adjusted to the actual probe signal. Without calibration, a correct measurement is not possible. A calibration should be performed regularly (depending on application). Solenoid valve: Activation of solenoid valves (motor-driven pumps) is defined by the cycle time and the minimum on-state interval (minimum time) (pulse length control).

  • Page 23: Ec Declaration Of Conformity

    10 EC Declaration of Conformity...

  • Page 24: Troubleshooting

    Subject to modifications · Printed in Germany Addresses and delivery information may be obtained from the manufacturer: ProMinent Dosiertechnik GmbH · Im Schuhmachergewann 5-11 · 69123 Heidelberg P.O. Box 101760 · 69007 Heidelberg · Germany Telephone: +49 6221 842-0 · Telefax: +49 6221 842-419...

Table of Contents
