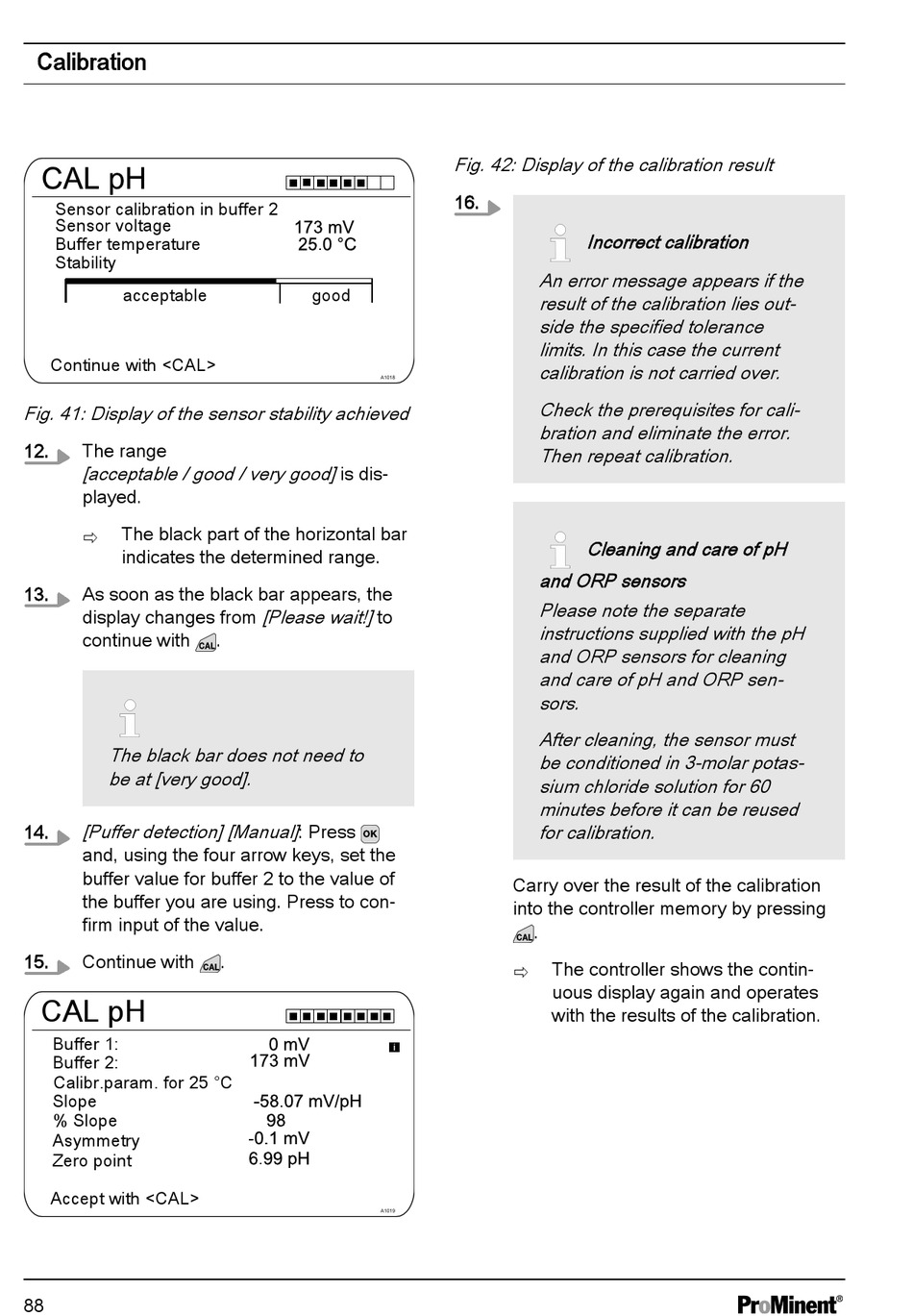

ProMinent DULCOMETER diaLog DACb Assembly And Operating Instruction page 88
Multi-parameter controller
Hide thumbs
Also See for DULCOMETER diaLog DACb:
- Assembly and operating instructions manual (180 pages)
Table of Contents
Advertisement
Calibration
Sensor calibration in buffer 2
Sensor voltage
Buffer temperature
Stability
acceptable
Continue with <CAL>
Fig. 41: Display of the sensor stability achieved
12.
The range
[acceptable / good / very good] is dis‐
played.
The black part of the horizontal bar
ð
indicates the determined range.
13.
As soon as the black bar appears, the
display changes from
continue with
The black bar does not need to
be at [very good].
[Puffer detection] [Manual] : Press
14.
and, using the four arrow keys, set the
buffer value for buffer 2 to the value of
the buffer you are using. Press to con‐
firm input of the value.
15.
Continue with
CAL pH
Buffer 1:
Buffer 2:
Calibr.param. for 25 °C
Slope
% Slope
Asymmetry
Zero point
Accept with <CAL>
88
good
A1018
[Please wait!] to
.
.
A1019
Fig. 42: Display of the calibration result
16.
Incorrect calibration
An error message appears if the
result of the calibration lies out‐
side the specified tolerance
limits. In this case the current
calibration is not carried over.
Check the prerequisites for cali‐
bration and eliminate the error.
Then repeat calibration.
Cleaning and care of pH
and ORP sensors
Please note the separate
instructions supplied with the pH
and ORP sensors for cleaning
and care of pH and ORP sen‐
sors.
After cleaning, the sensor must
be conditioned in 3-molar potas‐
sium chloride solution for 60
minutes before it can be reused
for calibration.
Carry over the result of the calibration
into the controller memory by pressing
.
The controller shows the contin‐
ð
uous display again and operates
with the results of the calibration.
