12.2.3

Setting [System response]

Continuous display ➨
[Limit value channel 1] ➨
[System response]
System response
Hysteresis
Error messages
Message delay
Control Stop with fault

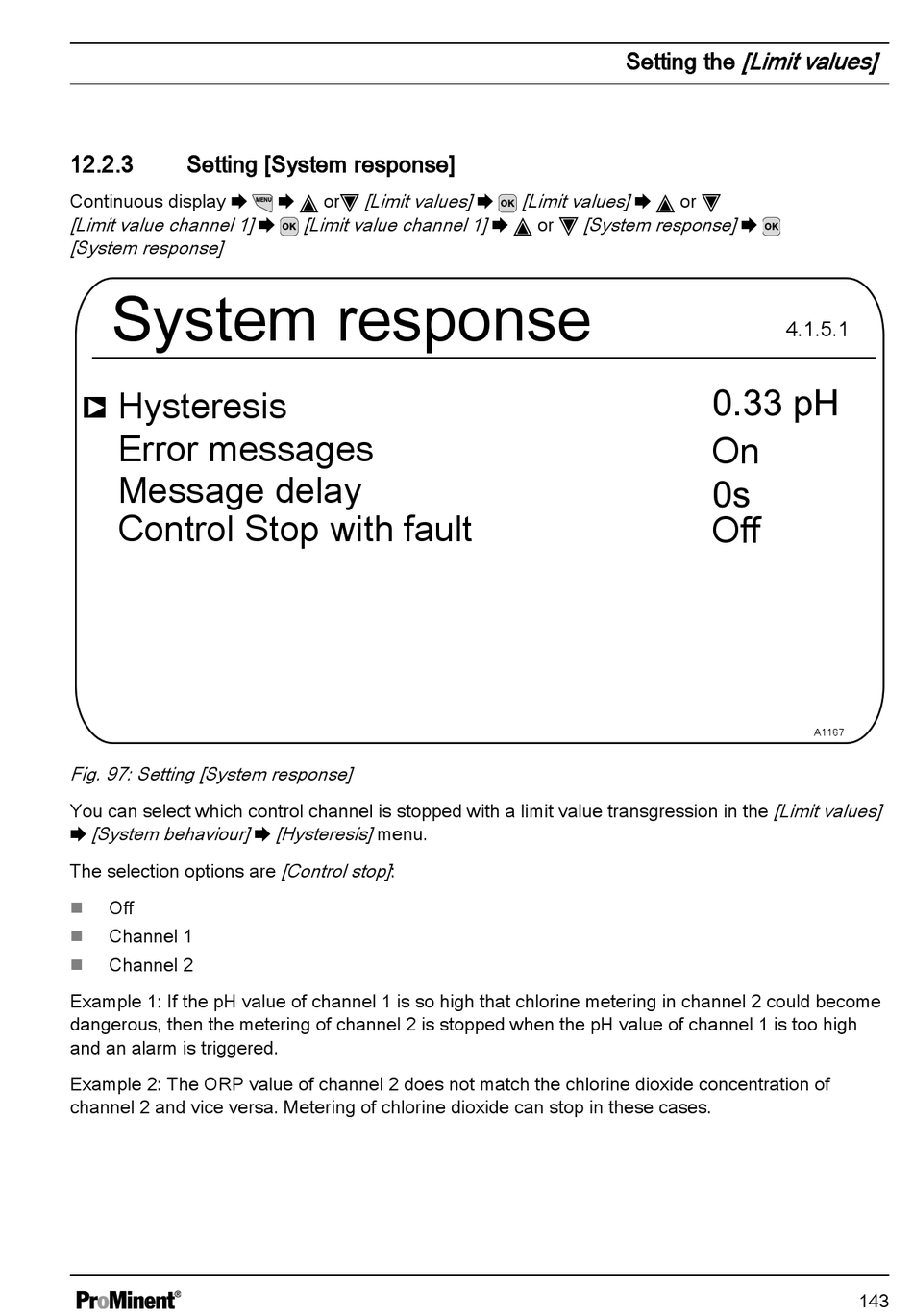

Fig. 97: Setting [System response]
You can select which control channel is stopped with a limit value transgression in the
[System behaviour] ➨ [Hysteresis] menu.
➨
The selection options are
Off
n
Channel 1
n
Channel 2
n
Example 1: If the pH value of channel 1 is so high that chlorine metering in channel 2 could become
dangerous, then the metering of channel 2 is stopped when the pH value of channel 1 is too high
and an alarm is triggered.
Example 2: The ORP value of channel 2 does not match the chlorine dioxide concentration of
channel 2 and vice versa. Metering of chlorine dioxide can stop in these cases.
[Limit values] ➨
➨ or
[Limit value channel 1] ➨
[Control stop] :
Setting the
[Limit values] ➨
or
[System response] ➨
or
[Limit values]
4.1.5.1
On
Off
A1167
[Limit values]
