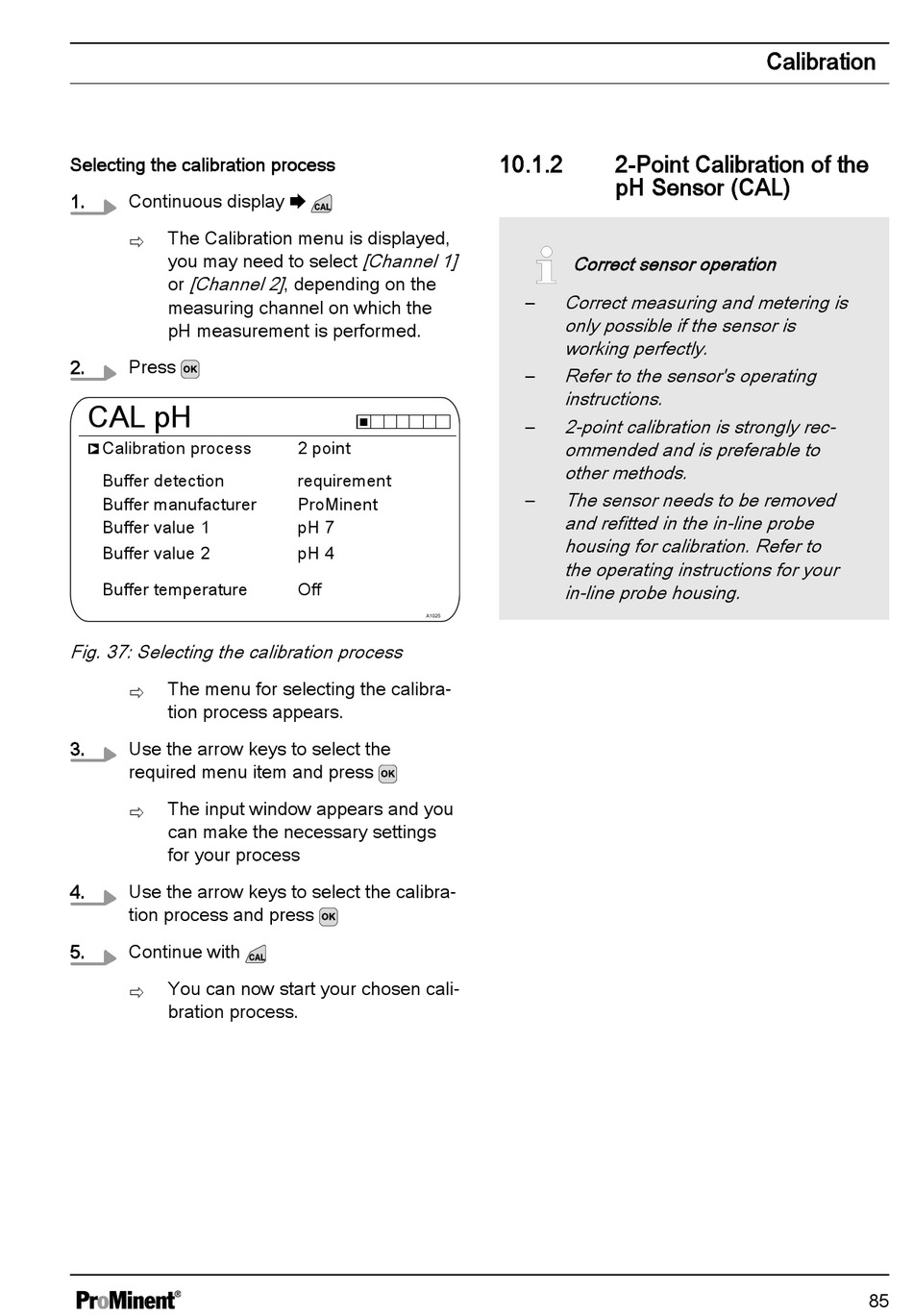

2-Point Calibration Of The Ph Sensor (Cal) - ProMinent DULCOMETER diaLog DACb Assembly And Operating Instruction

Selecting the calibration process
1. Continuous display ➨
The Calibration menu is displayed,
ð
you may need to select
[Channel 2] , depending on the
or
measuring channel on which the
pH measurement is performed.
2. Press
CAL pH
Calibration process
Buffer detection
Buffer manufacturer
Buffer value 1
Buffer value 2
Buffer temperature
Fig. 37: Selecting the calibration process
The menu for selecting the calibra‐
ð
tion process appears.
3. Use the arrow keys to select the
required menu item and press
The input window appears and you
ð
can make the necessary settings
for your process
4. Use the arrow keys to select the calibra‐
tion process and press
5. Continue with
You can now start your chosen cali‐
ð
bration process.
[Channel 1]
2 point
requirement
ProMinent
pH 7
pH 4
Off
A1025
10.1.2 2-Point Calibration of the
pH Sensor (CAL)
Correct sensor operation
Correct measuring and metering is
–
only possible if the sensor is
working perfectly.
Refer to the sensor's operating
–
instructions.
2-point calibration is strongly rec‐
–
ommended and is preferable to
other methods.
The sensor needs to be removed
–
and refitted in the in-line probe
housing for calibration. Refer to
the operating instructions for your
in-line probe housing.
Calibration
