Assembly and installation
7.3.2.4
Module: 2x mA input. Part number 734126
Passiv

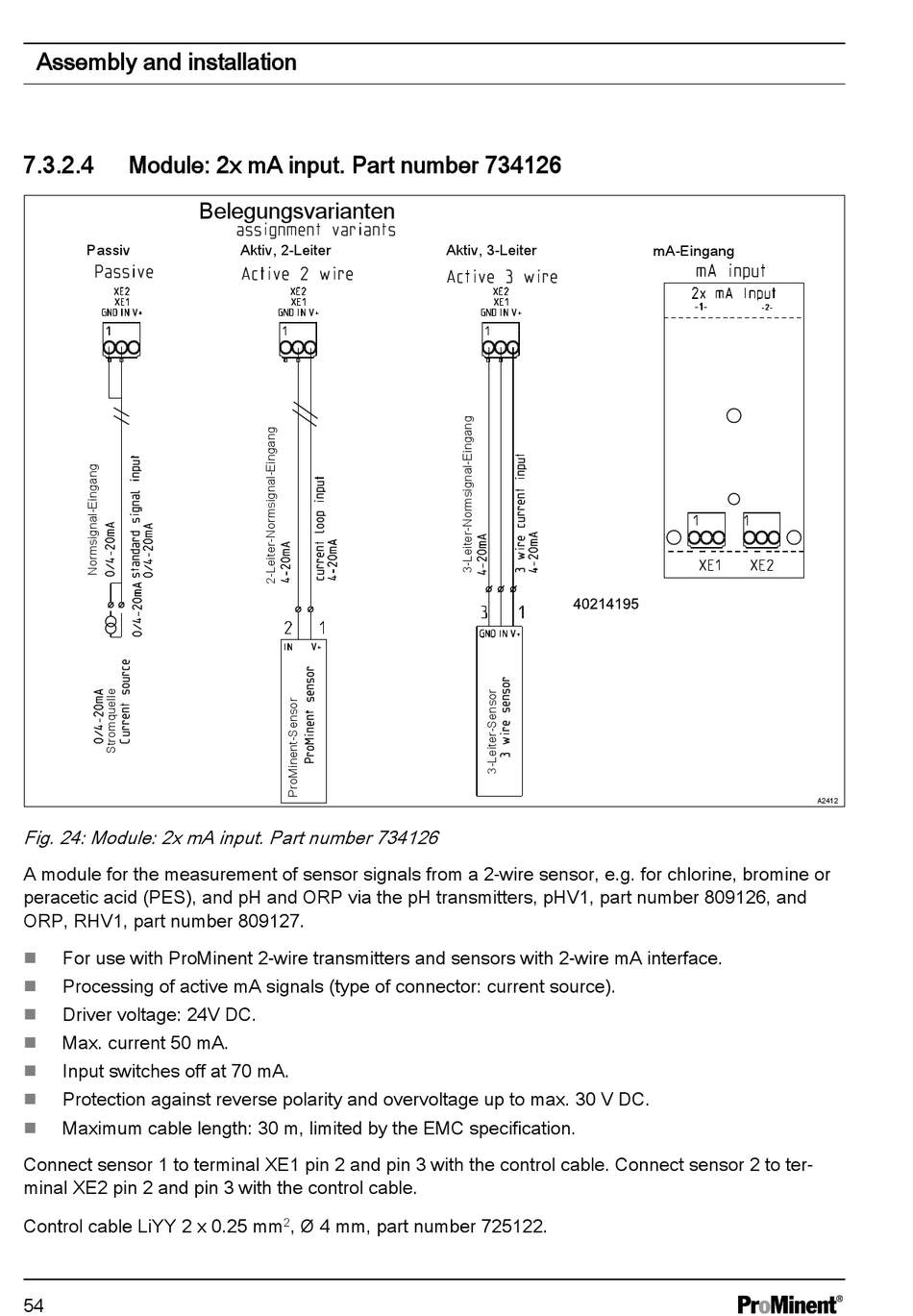

Fig. 24: Module: 2x mA input. Part number 734126
A module for the measurement of sensor signals from a 2-wire sensor, e.g. for chlorine, bromine or
peracetic acid (PES), and pH and ORP via the pH transmitters, pHV1, part number 809126, and
ORP, RHV1, part number 809127.
For use with ProMinent 2-wire transmitters and sensors with 2-wire mA interface.
n
Processing of active mA signals (type of connector: current source).
n
Driver voltage: 24V DC.
n
Max. current 50 mA.
n
Input switches off at 70 mA.
n
Protection against reverse polarity and overvoltage up to max. 30 V DC.
n
Maximum cable length: 30 m, limited by the EMC specification.
n
Connect sensor 1 to terminal XE1 pin 2 and pin 3 with the control cable. Connect sensor 2 to ter‐
minal XE2 pin 2 and pin 3 with the control cable.
Control cable LiYY 2 x 0.25 mm
54
Belegungsvarianten
Aktiv, 2-Leiter
, Ø 4 mm, part number 725122.
2
Aktiv, 3-Leiter
mA-Eingang
A2412
