Incorrect calibration
Should the result of the cal‐
ibration lie outside the
specified tolerance limits,
an error message appears.
In this case the current cali‐
bration will not be applied.
Check the prerequisites for
the calibration and clear the
error. Then repeat the cali‐
bration

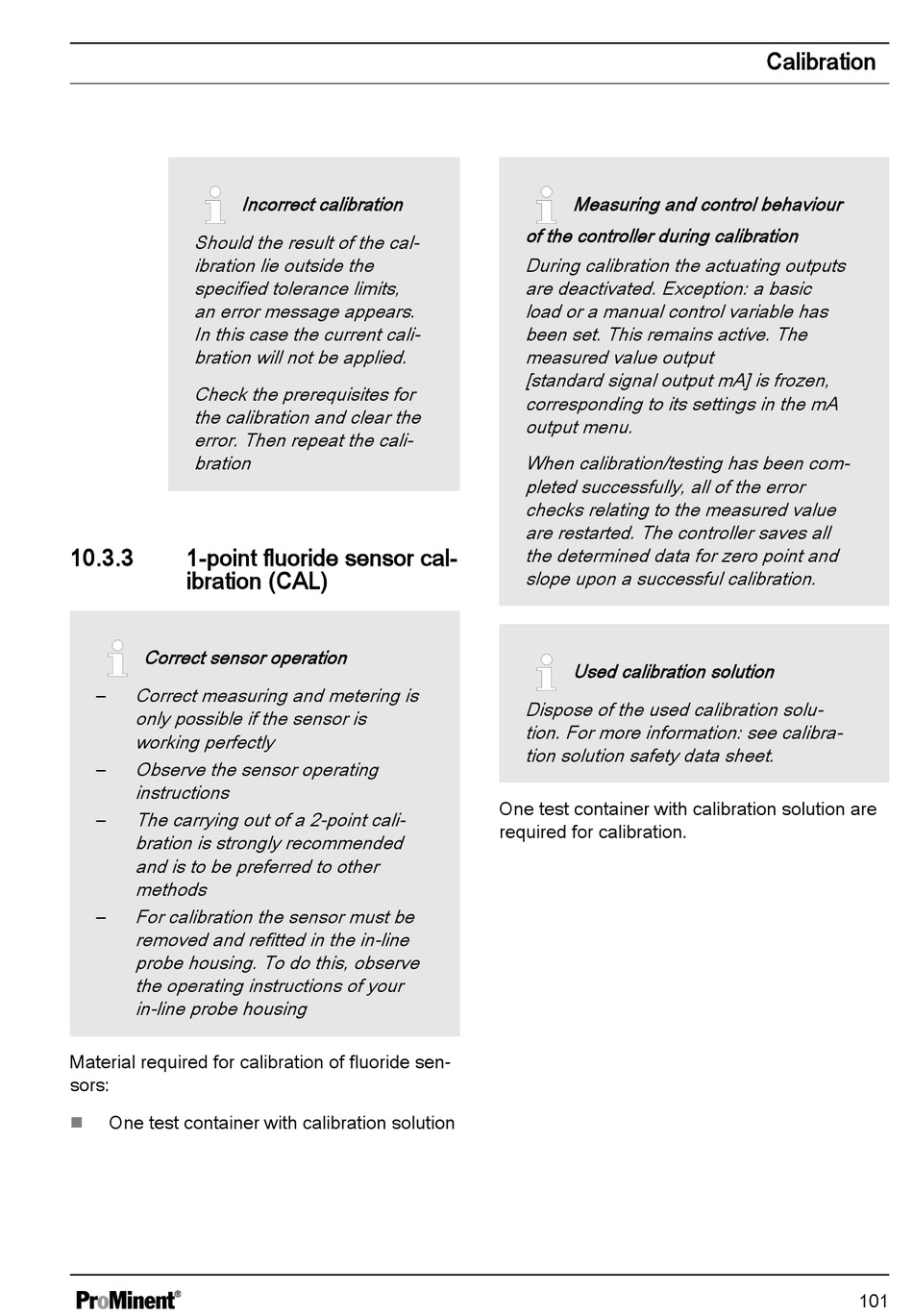

10.3.3 1-point fluoride sensor cal‐
ibration (CAL)
Correct sensor operation
Correct measuring and metering is
–
only possible if the sensor is
working perfectly
Observe the sensor operating
–
instructions
The carrying out of a 2-point cali‐
–
bration is strongly recommended
and is to be preferred to other
methods
For calibration the sensor must be
–
removed and refitted in the in-line
probe housing. To do this, observe
the operating instructions of your
in-line probe housing
Material required for calibration of fluoride sen‐
sors:
One test container with calibration solution
n
Measuring and control behaviour
of the controller during calibration
During calibration the actuating outputs
are deactivated. Exception: a basic
load or a manual control variable has
been set. This remains active. The
measured value output
[standard signal output mA] is frozen,
corresponding to its settings in the mA
output menu.
When calibration/testing has been com‐
pleted successfully, all of the error
checks relating to the measured value
are restarted. The controller saves all
the determined data for zero point and
slope upon a successful calibration.
Used calibration solution
Dispose of the used calibration solu‐
tion. For more information: see calibra‐
tion solution safety data sheet.
One test container with calibration solution are
required for calibration.
Calibration
