Assembly and installation
A module for the direct measurement of two pH values or two redox potentials or pH value and
redox potential via a coaxial cable.
For the direct connection of pH and ORP sensors
n
Maximum cable length: 10 m
n
Tab. 6: Sensor connection cable, coaxial, for terminal XE1/XE2 and X5/X6
Description
Cable combination, coaxial, Ø 5 mm 0.8 m - SN6 – pre-assembled.
Cable combination, coaxial, Ø 5 mm 2 m - SN6 – pre-assembled.
Cable combination, coaxial, Ø 5 mm 5 m - SN6 – pre-assembled.
7.3.2.3
Module: 2x conductive conductivity/temperature sensors. Part number
734223
Belegungsvarianten
Kanal 1

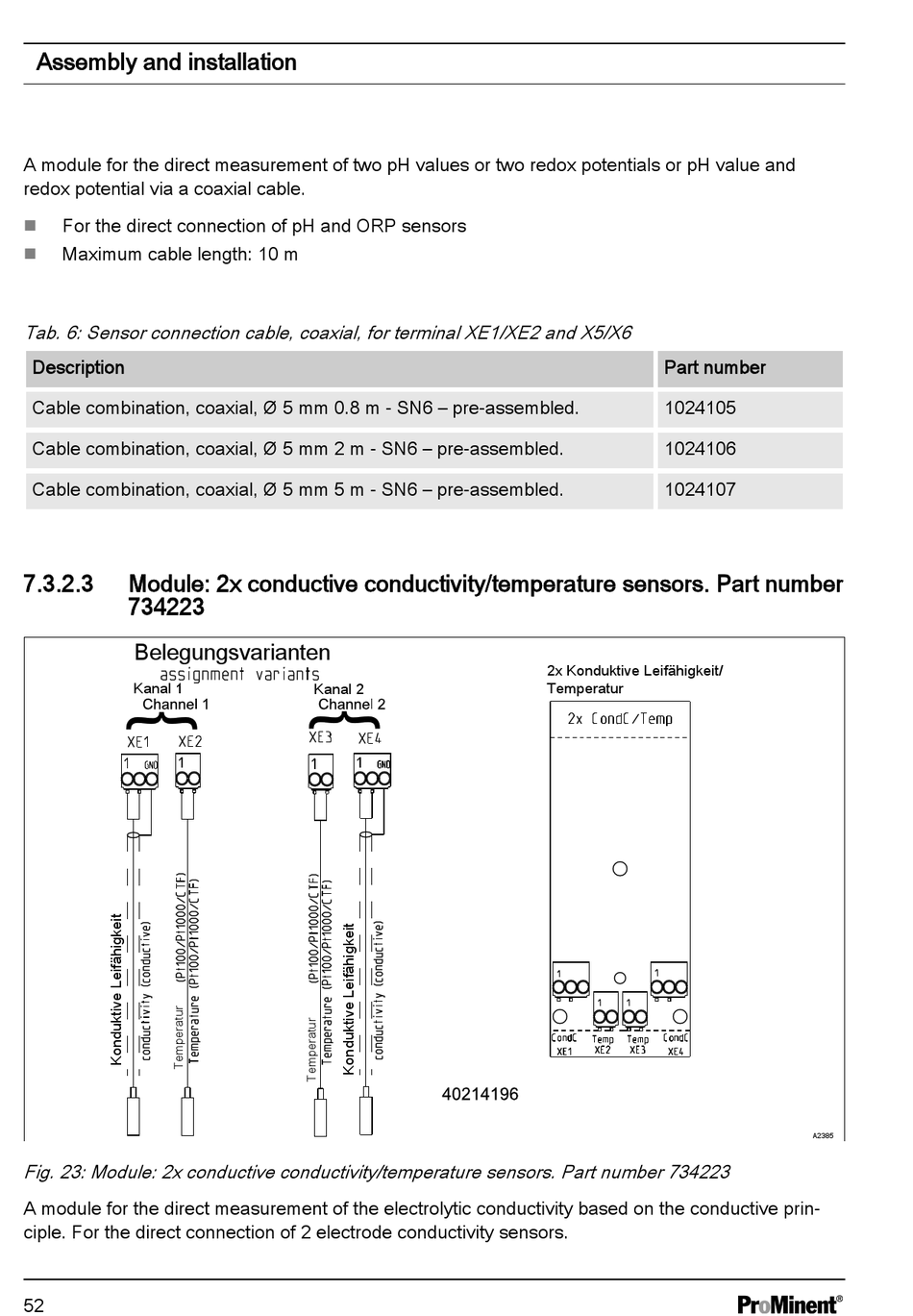

Fig. 23: Module: 2x conductive conductivity/temperature sensors. Part number 734223
A module for the direct measurement of the electrolytic conductivity based on the conductive prin‐
ciple. For the direct connection of 2 electrode conductivity sensors.
52
Kanal 2
Part number
1024105
1024106
1024107
2x Konduktive Leifähigkeit/
Temperatur
A2385
