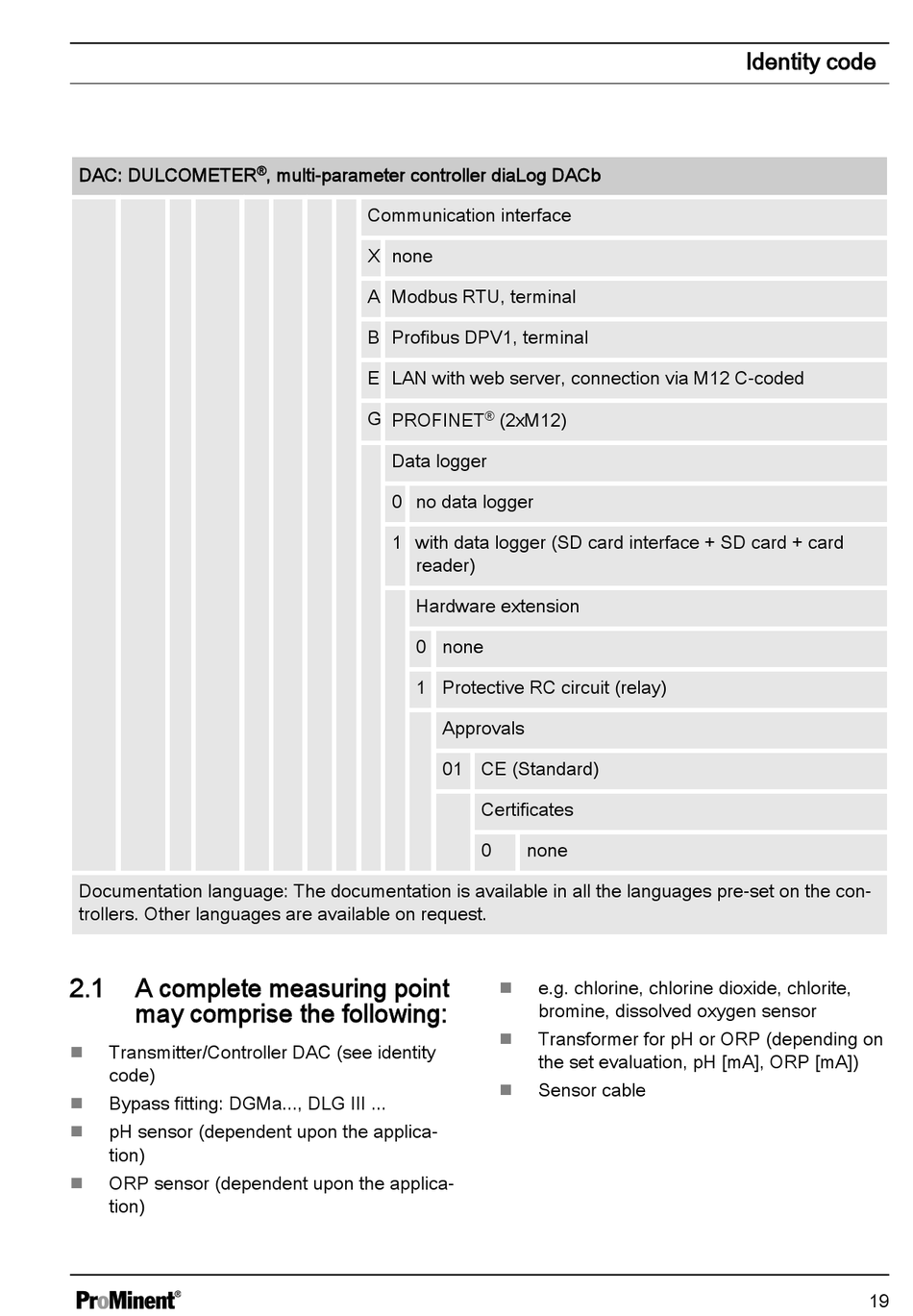

DAC: DULCOMETER
Documentation language: The documentation is available in all the languages pre-set on the con‐
trollers. Other languages are available on request.
2.1
A complete measuring point
may comprise the following:
Transmitter/Controller DAC (see identity
n
code)
Bypass fitting: DGMa..., DLG III ...
n
pH sensor (dependent upon the applica‐
n
tion)
ORP sensor (dependent upon the applica‐
n
tion)
, multi-parameter controller diaLog DACb
®
Communication interface
X none
A Modbus RTU, terminal
B Profibus DPV1, terminal
E LAN with web server, connection via M12 C-coded
G PROFINET
Data logger
0 no data logger
1 with data logger (SD card interface + SD card + card
reader)
Hardware extension
0 none
1 Protective RC circuit (relay)
(2xM12)
®
Approvals
01 CE (Standard)
Certificates
0
none
e.g. chlorine, chlorine dioxide, chlorite,
n
bromine, dissolved oxygen sensor
Transformer for pH or ORP (depending on
n
the set evaluation, pH [mA], ORP [mA])
Sensor cable
n
Identity code
19
