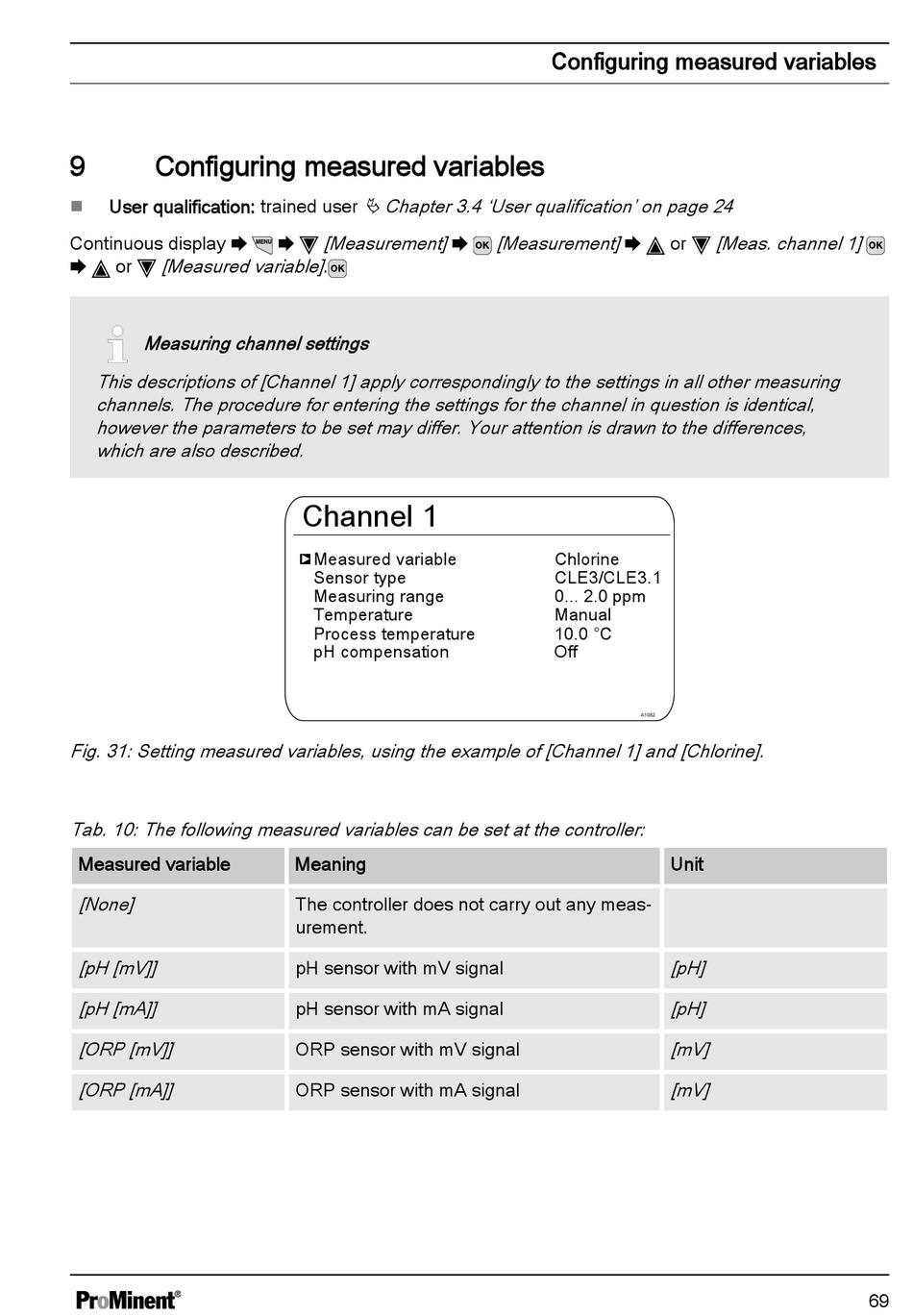

Configuring measured variables

User qualification: trained user
n
Continuous display ➨
[Measured variable] .
or
Measuring channel settings
This descriptions of [Channel 1] apply correspondingly to the settings in all other measuring
channels. The procedure for entering the settings for the channel in question is identical,
however the parameters to be set may differ. Your attention is drawn to the differences,
which are also described.
Fig. 31: Setting measured variables, using the example of [Channel 1] and [Chlorine].
Tab. 10: The following measured variables can be set at the controller:
Measured variable
[None]
[pH [mV]]
[pH [mA]]
[ORP [mV]]
[ORP [mA]]
Ä Chapter 3.4 'User qualification' on page 24
[Measurement] ➨
Channel 1
Measured variable
Sensor type
Measuring range
Temperature
Process temperature
pH compensation
Meaning
The controller does not carry out any meas‐
urement.
pH sensor with mV signal
pH sensor with mA signal
ORP sensor with mV signal
ORP sensor with mA signal
Configuring measured variables
[Measurement] ➨
Chlorine
CLE3/CLE3.1
0... 2.0 ppm
Manual
10.0 °C
Off
A1082
[Meas. channel 1]
or
Unit
[pH]
[pH]
[mV]
[mV]
69
