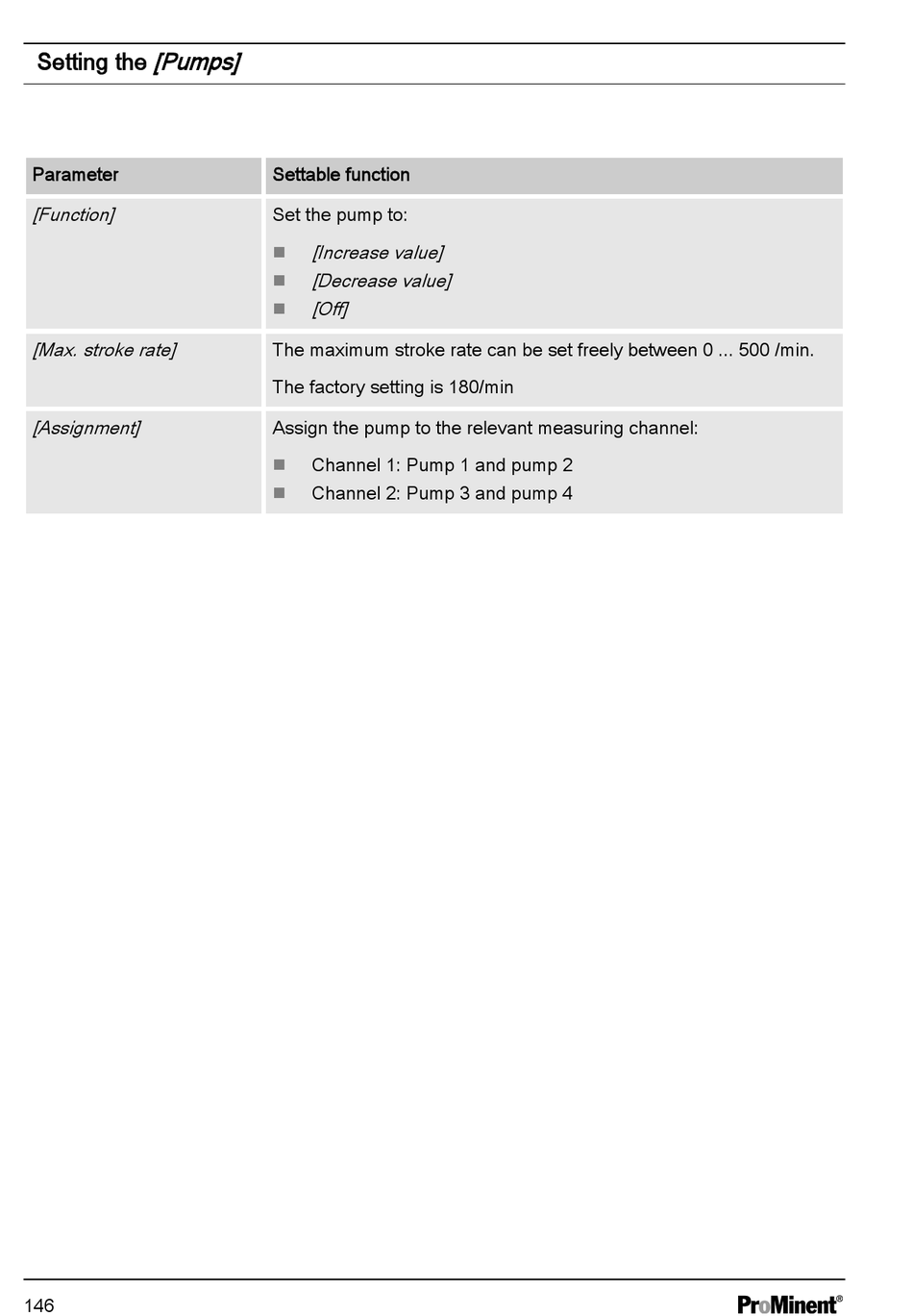

[Pumps]
Setting the
Parameter
[Function]
[Max. stroke rate]
[Assignment]
146
Settable function
Set the pump to:
[Increase value]
n
[Decrease value]
n
[Off]
n
The maximum stroke rate can be set freely between 0 ... 500 /min.
The factory setting is 180/min
Assign the pump to the relevant measuring channel:
Channel 1: Pump 1 and pump 2
n
Channel 2: Pump 3 and pump 4
n
