Calibration
Selecting the calibration process
1.
Continuous display ➨
CAL Cl
Last calibration 31.03. 2013 13:11:11
Slope
100 %
Zero point
4.00 mA
Slope calibration
Calibration of zero point

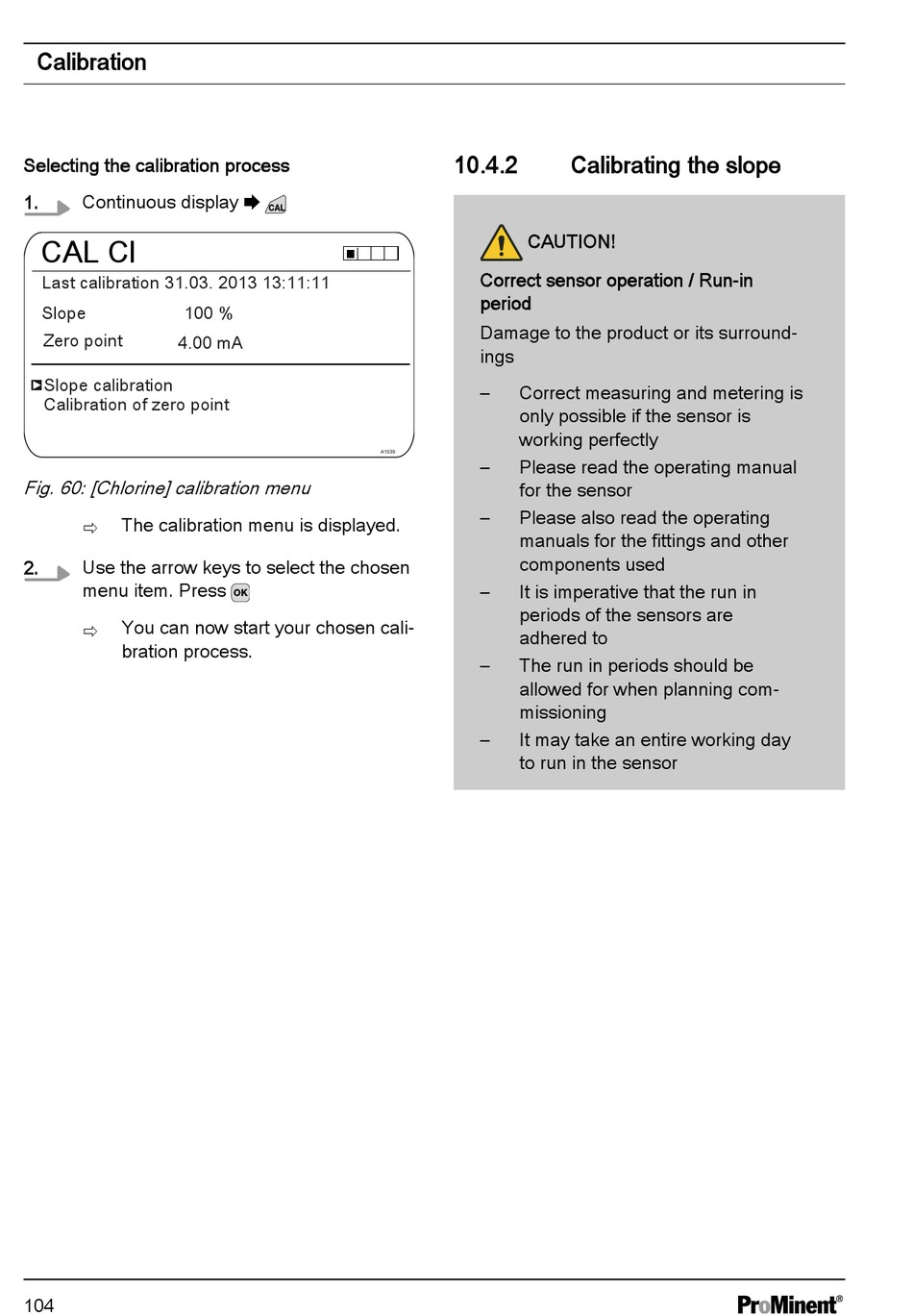

Fig. 60: [Chlorine] calibration menu
The calibration menu is displayed.
ð
2.
Use the arrow keys to select the chosen
menu item. Press
You can now start your chosen cali‐
ð
bration process.
104
10.4.2
CAUTION!
Correct sensor operation / Run-in
period
Damage to the product or its surround‐
ings
–
Correct measuring and metering is
only possible if the sensor is
working perfectly
A1039
–
Please read the operating manual
for the sensor
–
Please also read the operating
manuals for the fittings and other
components used
–
It is imperative that the run in
periods of the sensors are
adhered to
–
The run in periods should be
allowed for when planning com‐
missioning
–
It may take an entire working day
to run in the sensor
Calibrating the slope
