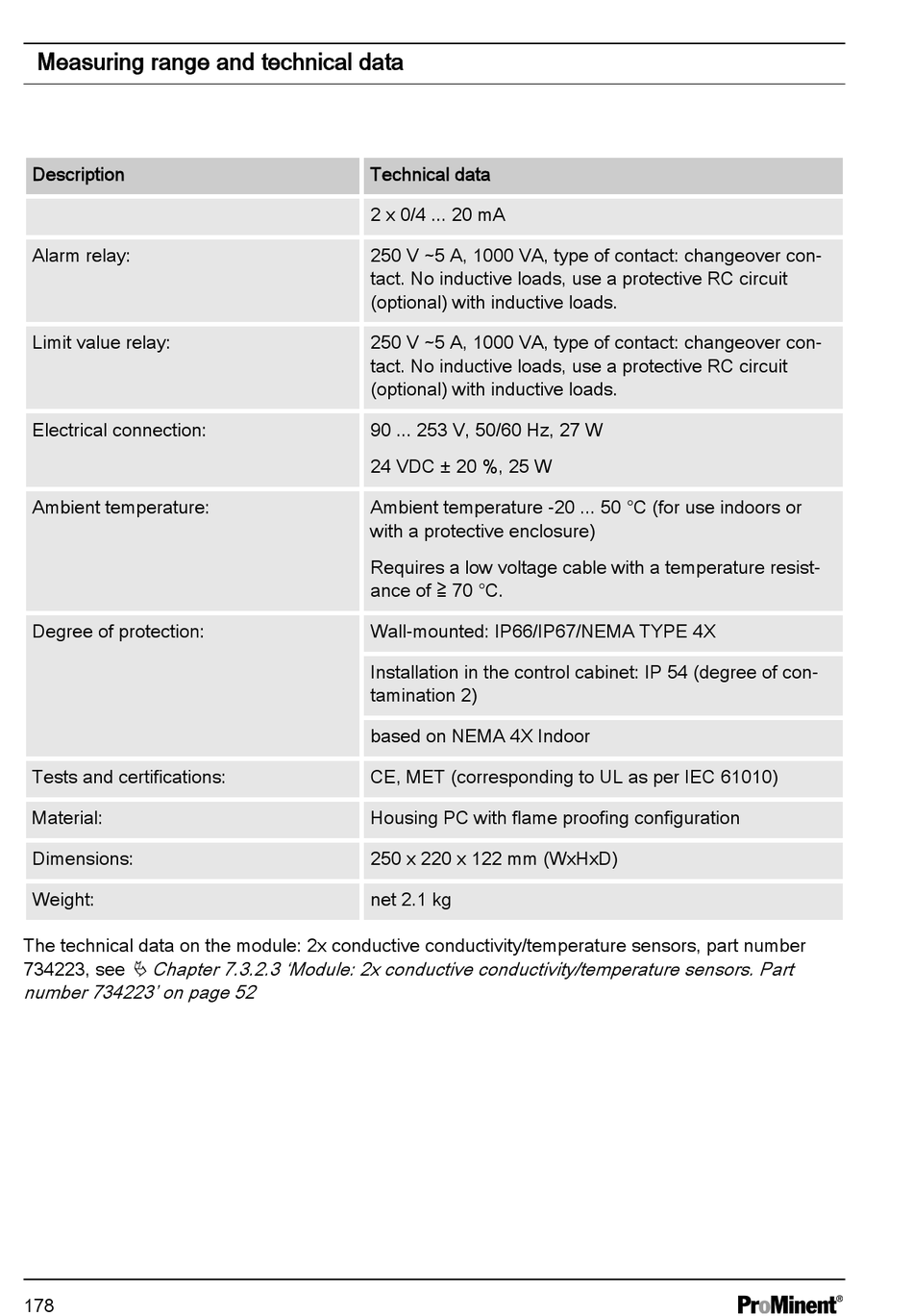

Measuring range and technical data
Description
Alarm relay:
Limit value relay:
Electrical connection:
Ambient temperature:
Degree of protection:
Tests and certifications:
Material:
Dimensions:
Weight:
The technical data on the module: 2x conductive conductivity/temperature sensors, part number
Ä Chapter 7.3.2.3 'Module: 2x conductive conductivity/temperature sensors. Part
734223, see
number 734223' on page 52
178
Technical data
2 x 0/4 ... 20 mA
250 V ~5 A, 1000 VA, type of contact: changeover con‐
tact. No inductive loads, use a protective RC circuit
(optional) with inductive loads.
250 V ~5 A, 1000 VA, type of contact: changeover con‐
tact. No inductive loads, use a protective RC circuit
(optional) with inductive loads.
90 ... 253 V, 50/60 Hz, 27 W
24 VDC ± 20 %, 25 W
Ambient temperature -20 ... 50 °C (for use indoors or
with a protective enclosure)
Requires a low voltage cable with a temperature resist‐
ance of ≧ 70 °C.
Wall-mounted: IP66/IP67/NEMA TYPE 4X
Installation in the control cabinet: IP 54 (degree of con‐
tamination 2)
based on NEMA 4X Indoor
CE, MET (corresponding to UL as per IEC 61010)
Housing PC with flame proofing configuration
250 x 220 x 122 mm (WxHxD)
net 2.1 kg
